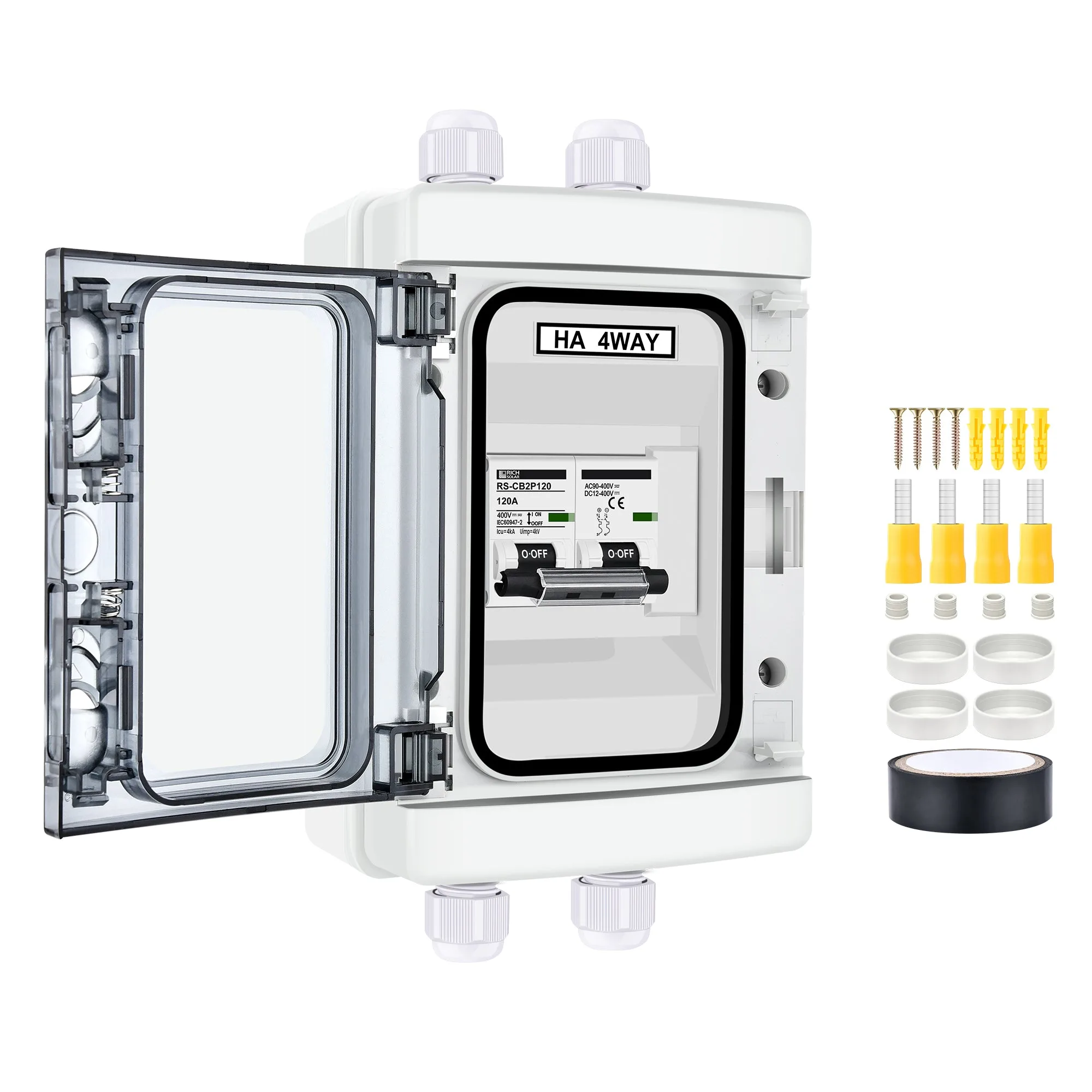

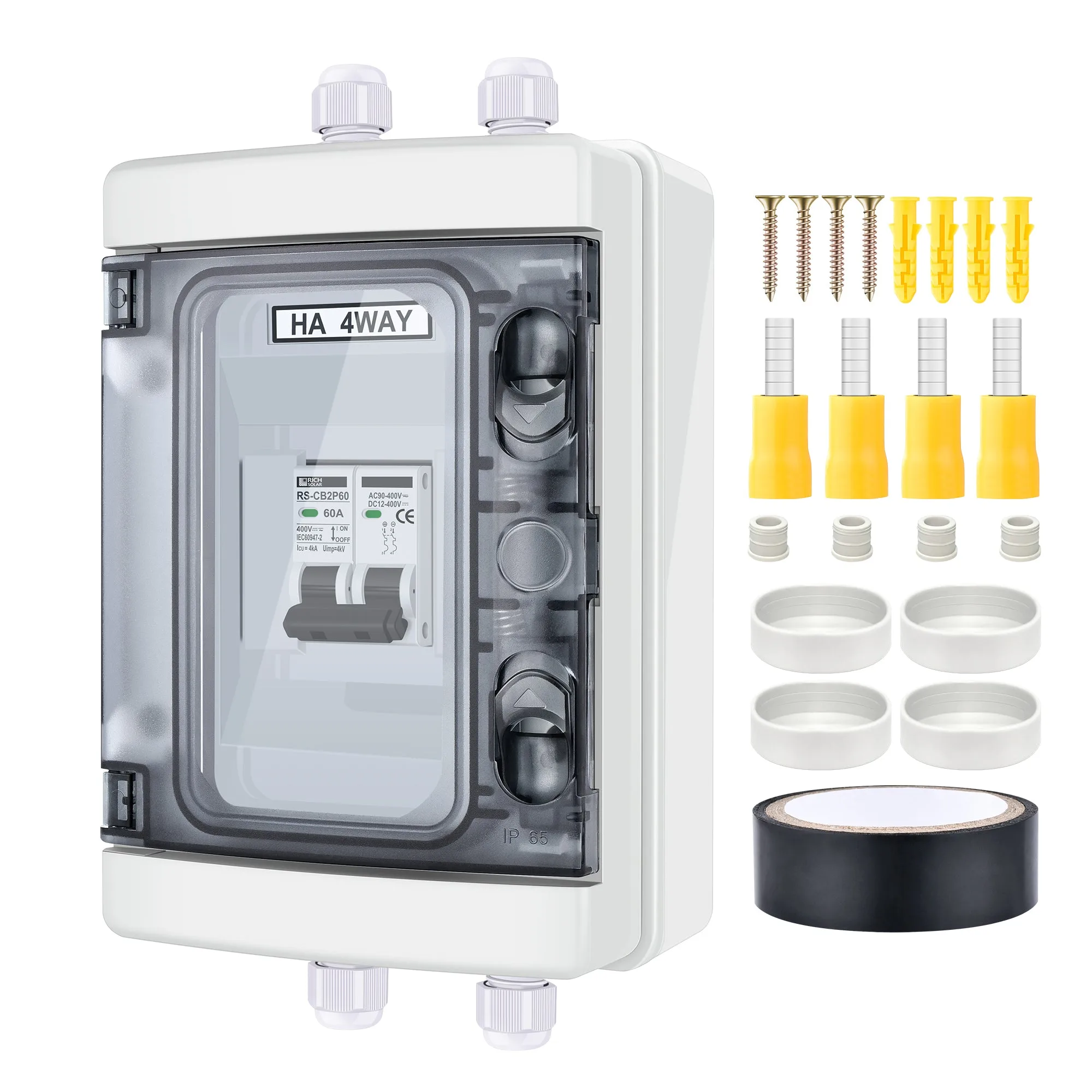

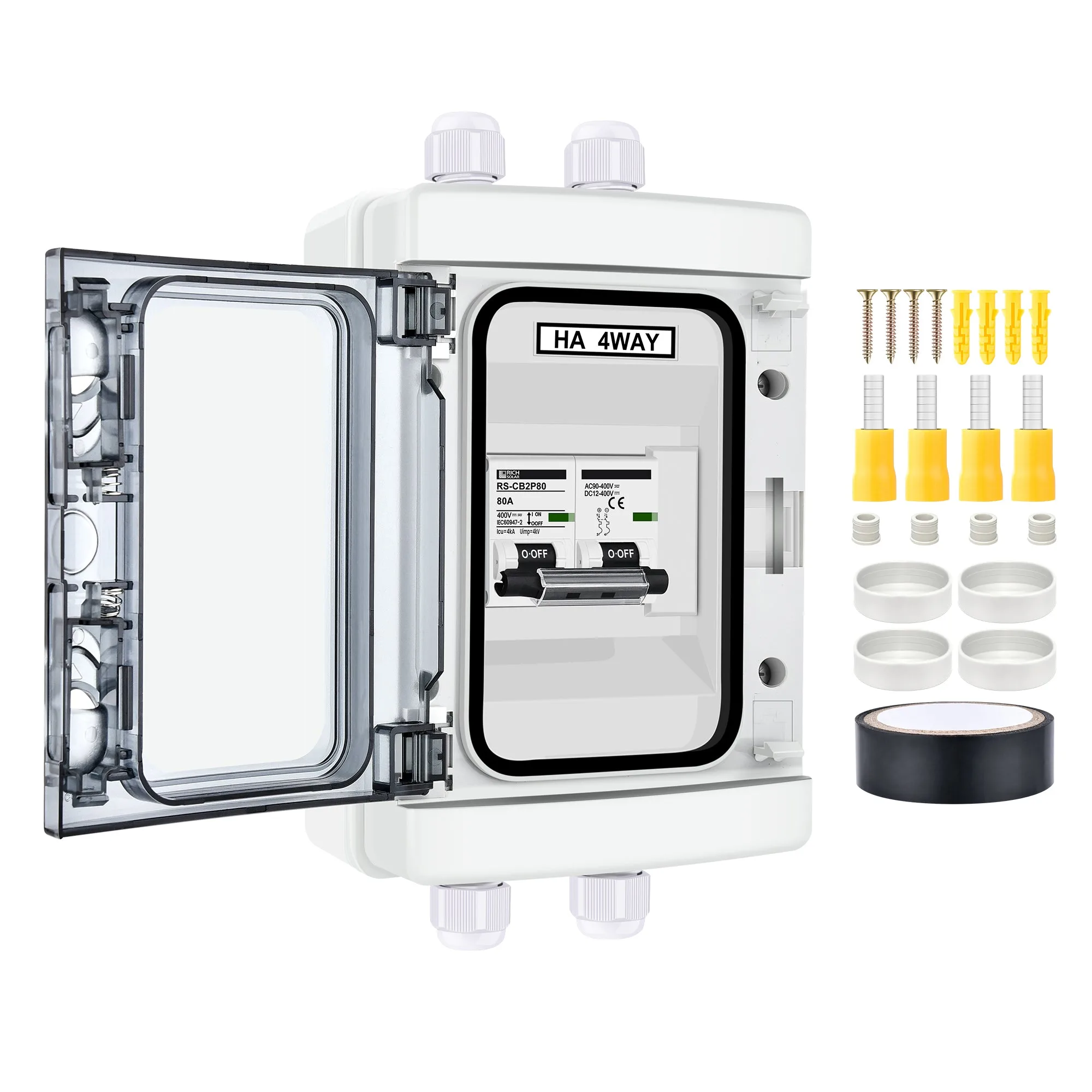

Outdoor Circuit Breaker Box

Name: Outdoor Circuit Breaker Box
Brand: Rich Solar
SKU: RS-CB2P30
Price: 39.99 USD
Availability: InStock

SKU: RS-CB2P30

$39.99 / Each

✓ In Stock (25 available)

Features IP65 Weatherproof Enclosure: Protects against water, dust, and outdoor conditions.

Amperage *

Please select Amperage to continue.

View Kit Bundles

🌾

Why Buy This from AOG

✓Authorized dealer — genuine product, backed by the manufacturer's warranty

✓Personal service from a small, family-run business that knows and serves the Plain & off-grid community — not a faceless call center

✓Chosen to last, not to be the cheapest — built for years of real use

✓Curated for true off-grid living, not stacked on a big-box shelf

Need something else too?

Shipping Info

Weight: 2lb 0oz

Dimensions: 0.00" × 0.00" × 0.00"

Ships to the lower 48 states. See our Shipping & Returns policy before you buy.

Key Features

• IP65 Weatherproof Enclosure: Protects against water, dust, and outdoor conditions.
• Industrial-Grade PC/ABS Housing: Impact-resistant construction for long-lasting durability.
• Enhanced Copper Bus Bars: Provide secure and reliable electrical connections.
• Built-in DIN Rail: Enables fast installation of breakers and modular components.
• Transparent Flip Cover: Allows quick visual inspection without opening the enclosure.
• Pre-drilled Wiring Ports: Simplifies cable routing and installation.
• Tool-Free Wall Mount: Pre-aligned mounting points for quick installation.
• Ideal for Solar Systems: Designed for grid-tied, off-grid, and RV solar applications.

Specifications

• Number of Poles: 2P
• Rated Current: 30/40/60/80/120A
• Breaking Capacity: 4000A
• Rated Voltage: AC90-400; DC12-400V
• Rated Frequency: 50/60Hz
• Endurance: ≥4000 operations at 30/40/60A, ≥20000 operations at 80/120A
• Circumstance Temperature: 23°F ~ + 104°F
• Protection Level: IP65 exterior & lP20 interior
• Electrical Life: ≥ 4000 operations
• Mechanical Life: ≥ 10000 operations
