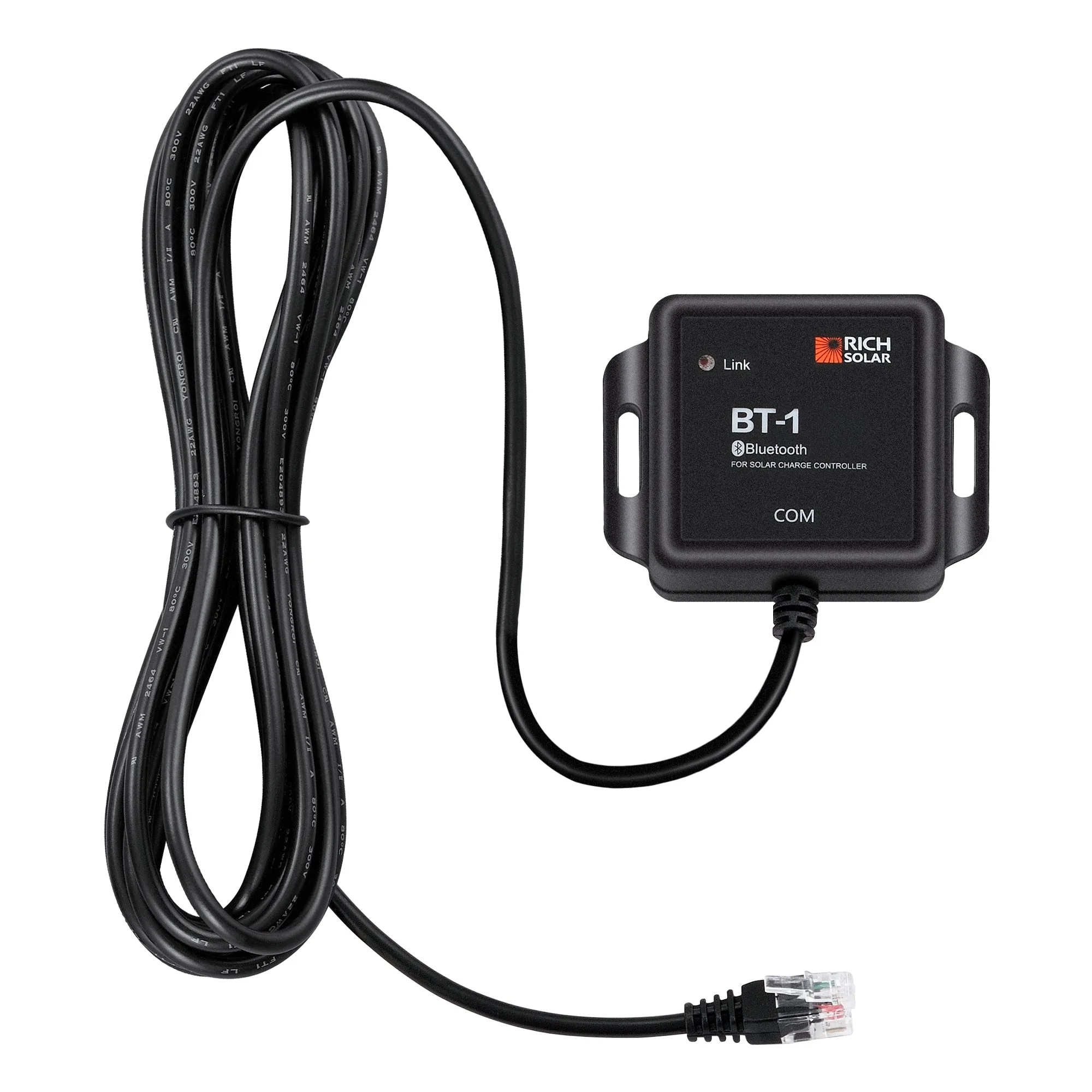

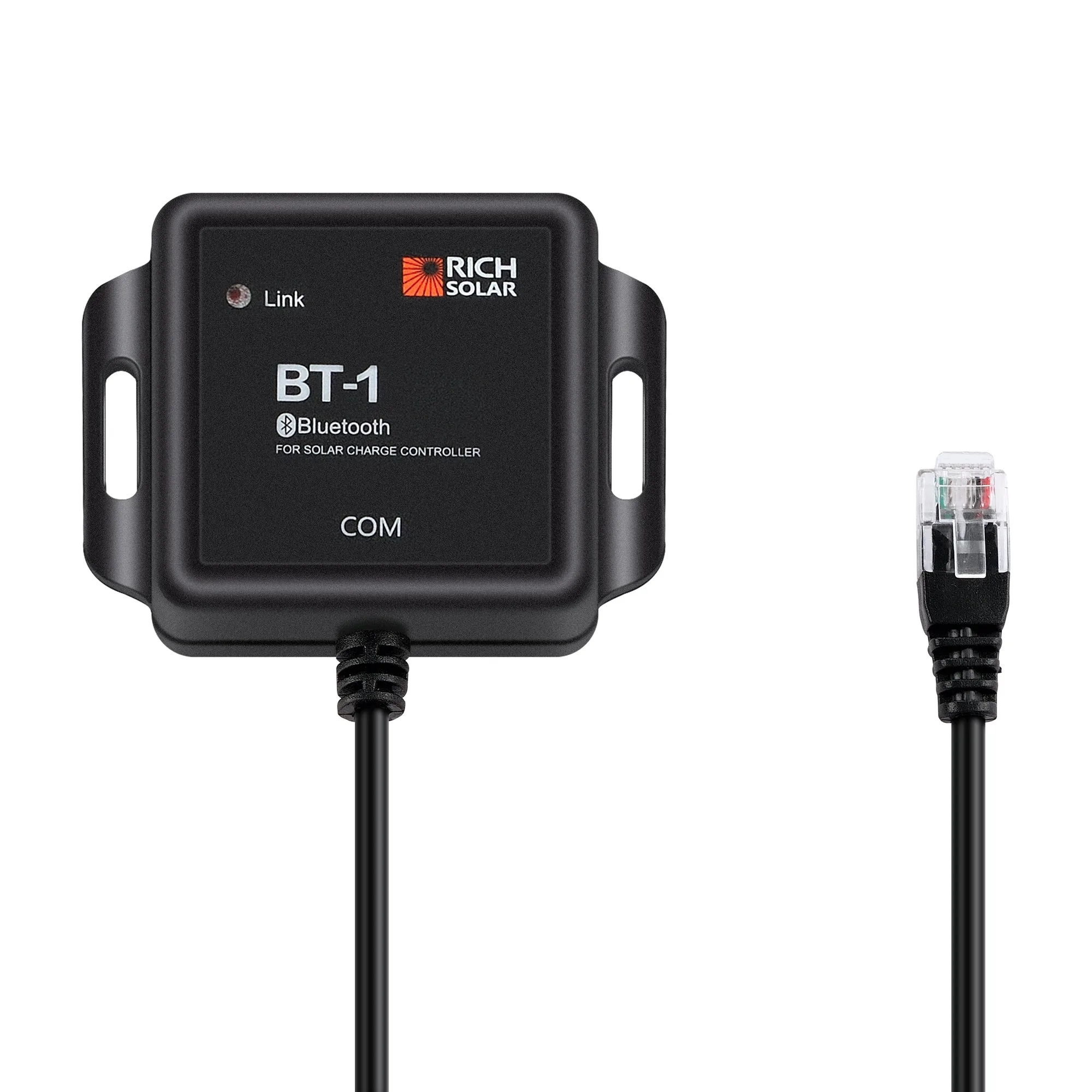

BT-1 Module | Bluetooth Module for Solar Charge Controllers | Only for 20/30/40/60A MPPT Models
Monitoring & Accessories

BT-1 Module | Bluetooth Module for Solar Charge Controllers | Only for 20/30/40/60A MPPT Models

SKU: RS-BT1
$35.99 / Each
✓ In Stock (25 available)

Features Wirelessly monitor and control compatible solar charge controllers via Bluetooth Connect to a user-friendly smartphone app, keep track of your system Embedded exclusive Bl

View Kit Bundles
🌾

Why Buy This from AOG

✓Authorized dealer — genuine product, backed by the manufacturer's warranty
✓Personal service from a small, family-run business that knows and serves the Plain & off-grid community — not a faceless call center
✓Chosen to last, not to be the cheapest — built for years of real use
✓Curated for true off-grid living, not stacked on a big-box shelf

Need something else too?

Solar Panels | Kits & Bundles | Batteries | Inverters | Charge Controllers | Power Converters | DC-DC Chargers | Chargers | Solar Racking & Mounting | Wiring & Connectors | Off-Grid Appliances | Lighting & Accessories | Parts & Repair | Misc | Power Controllers

Shipping Info
Weight: 0lb 6oz
Dimensions: 0.00" × 0.00" × 0.00"

Ships to the lower 48 states. See our Shipping & Returns policy before you buy.

Key Features

• Wirelessly monitor and control compatible solar charge controllers via Bluetooth
• Connect to a user-friendly smartphone app, keep track of your system
• Embedded exclusive Bluetooth chip with high efficiency and low energy consumption
• With Bluetooth 4.0 and BLE technology, it features fast and uninterrupted communication
• Powered directly through RJ12 communication port
• Signal range reaches up to 50 ft

Specifications

• Model: BT-1
• Input Voltage: 5V-12V
• Standby Power Consumption: 0.04W
• Operating Power Consumption: 0.05W
• Communication Range: ≤15m
• Serial Baud Rate: Fixed Baud Rate 9600bps
• Cable Length: 5.00 m (16.4 ft)
• Dimensions: 2.6 X 2.01 X 0.61 In
• Installation Dimensions: 57.5, φ3.2mm (2.26, φ0.13in)
• Protection Grade: IP67
• Weight: 120 g (4.2oz)
