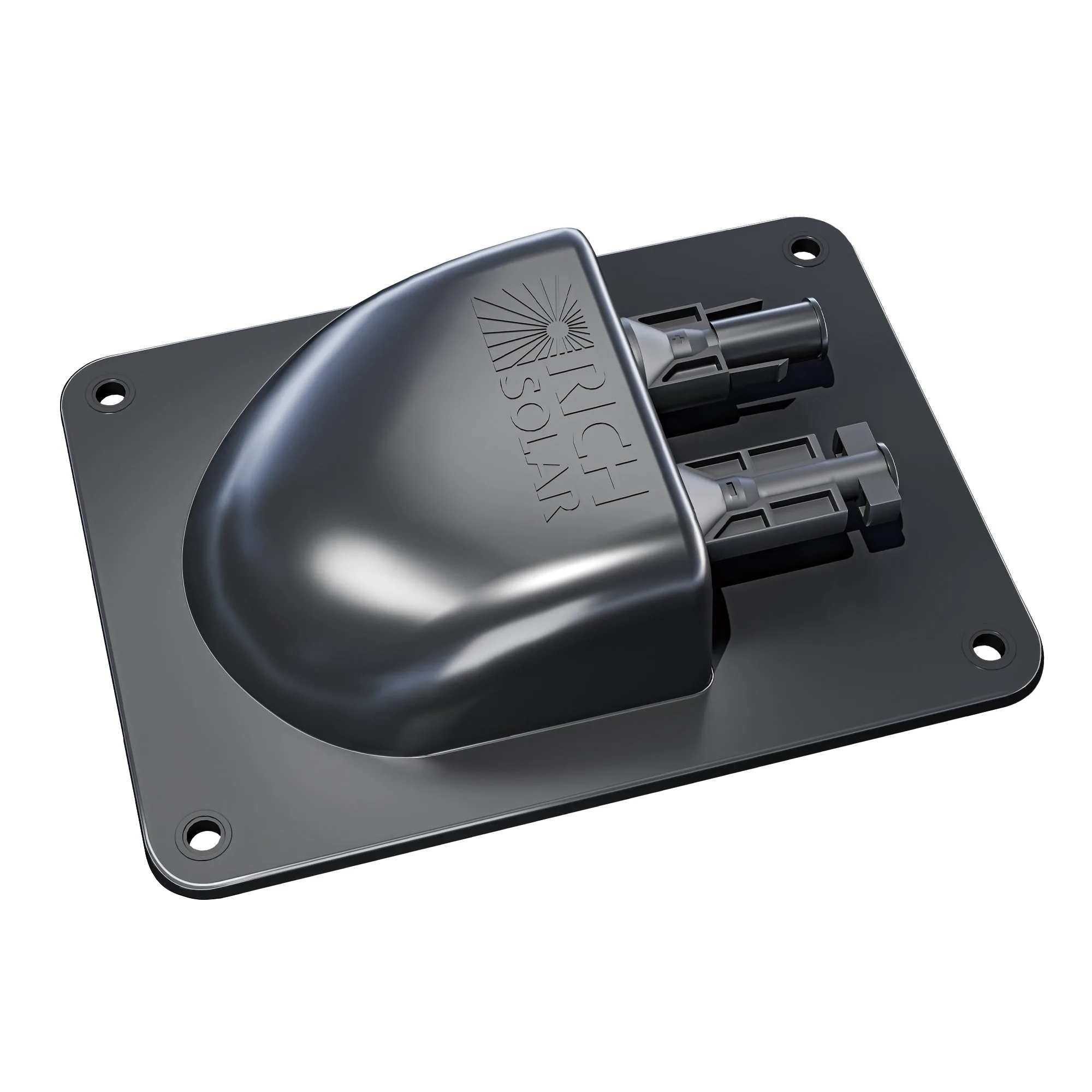

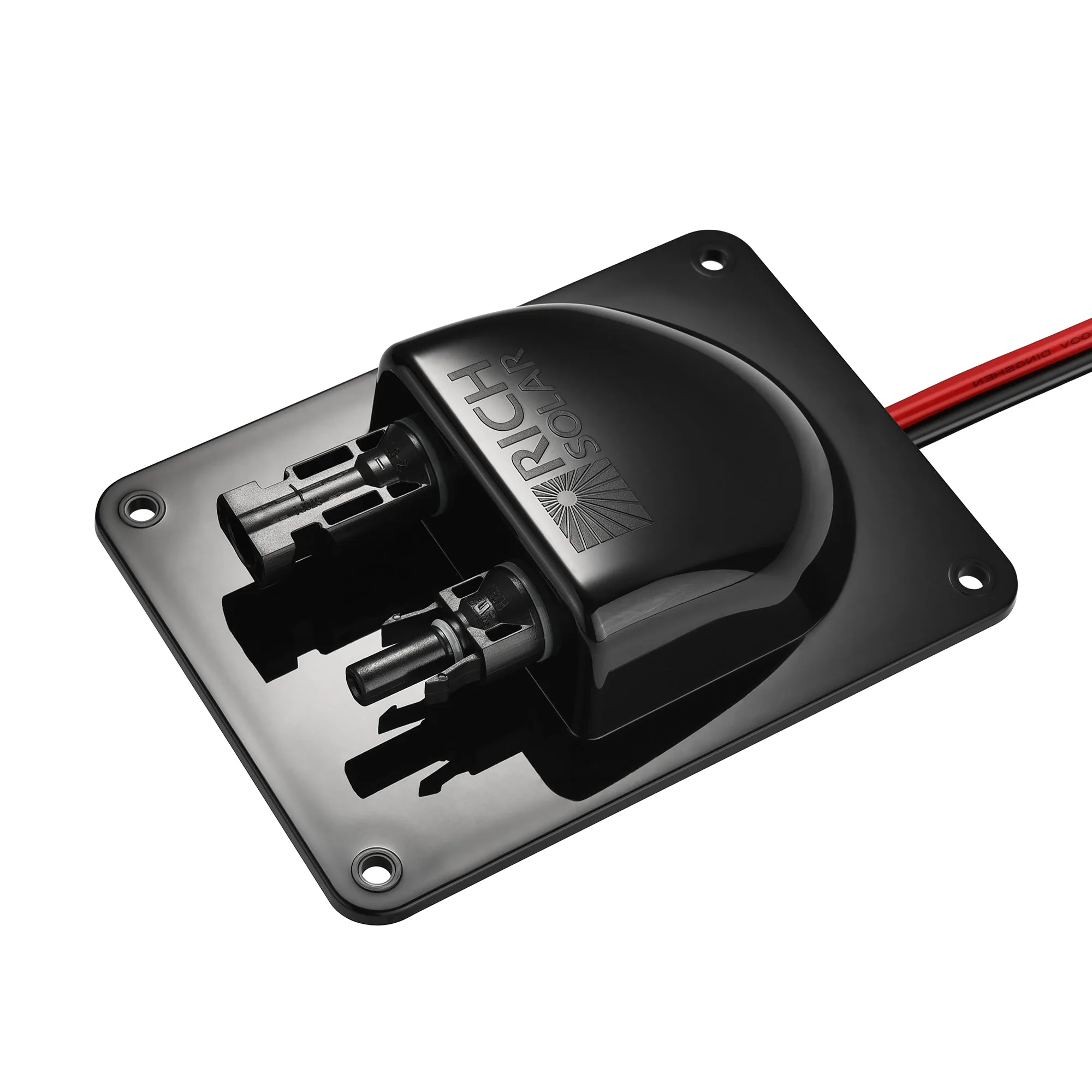

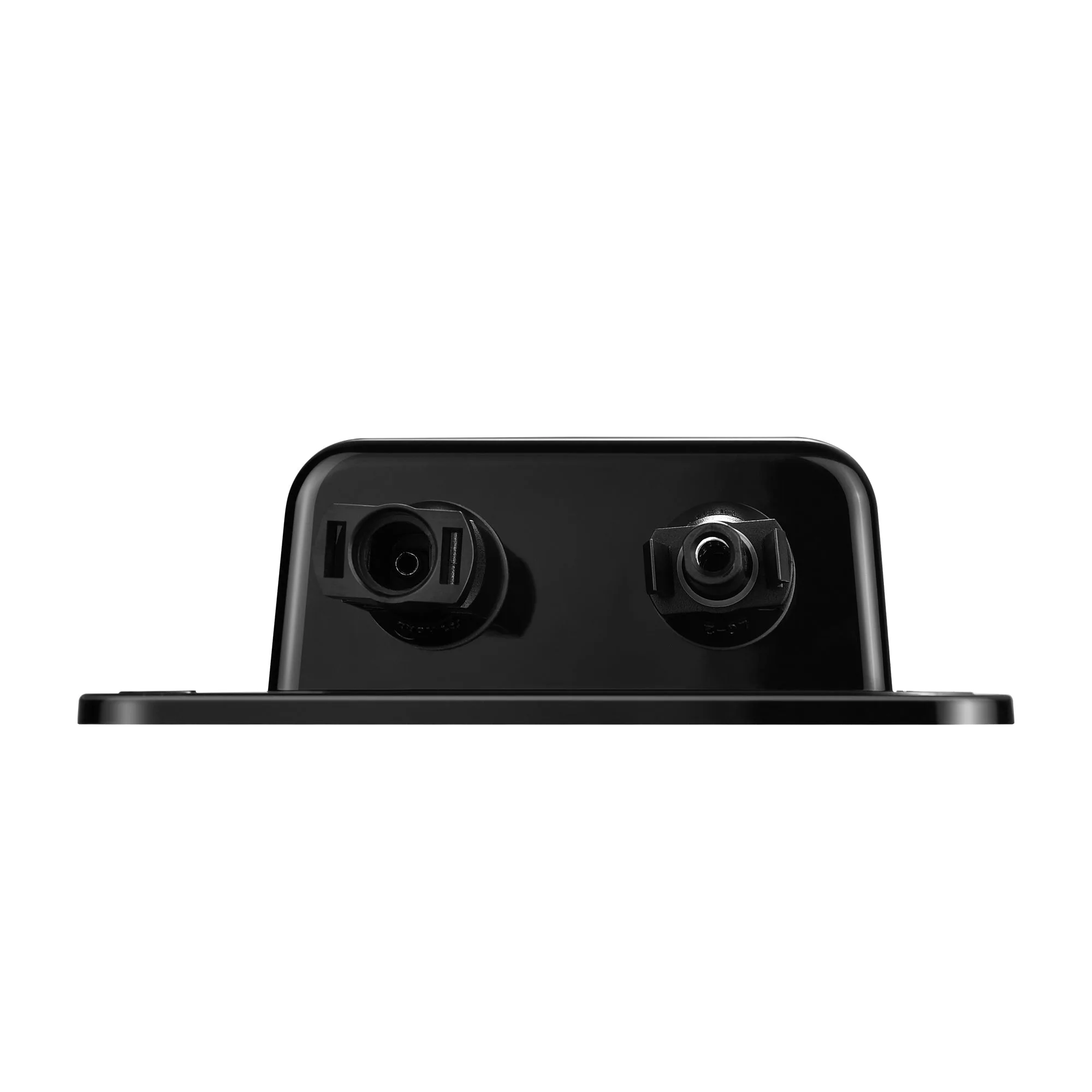

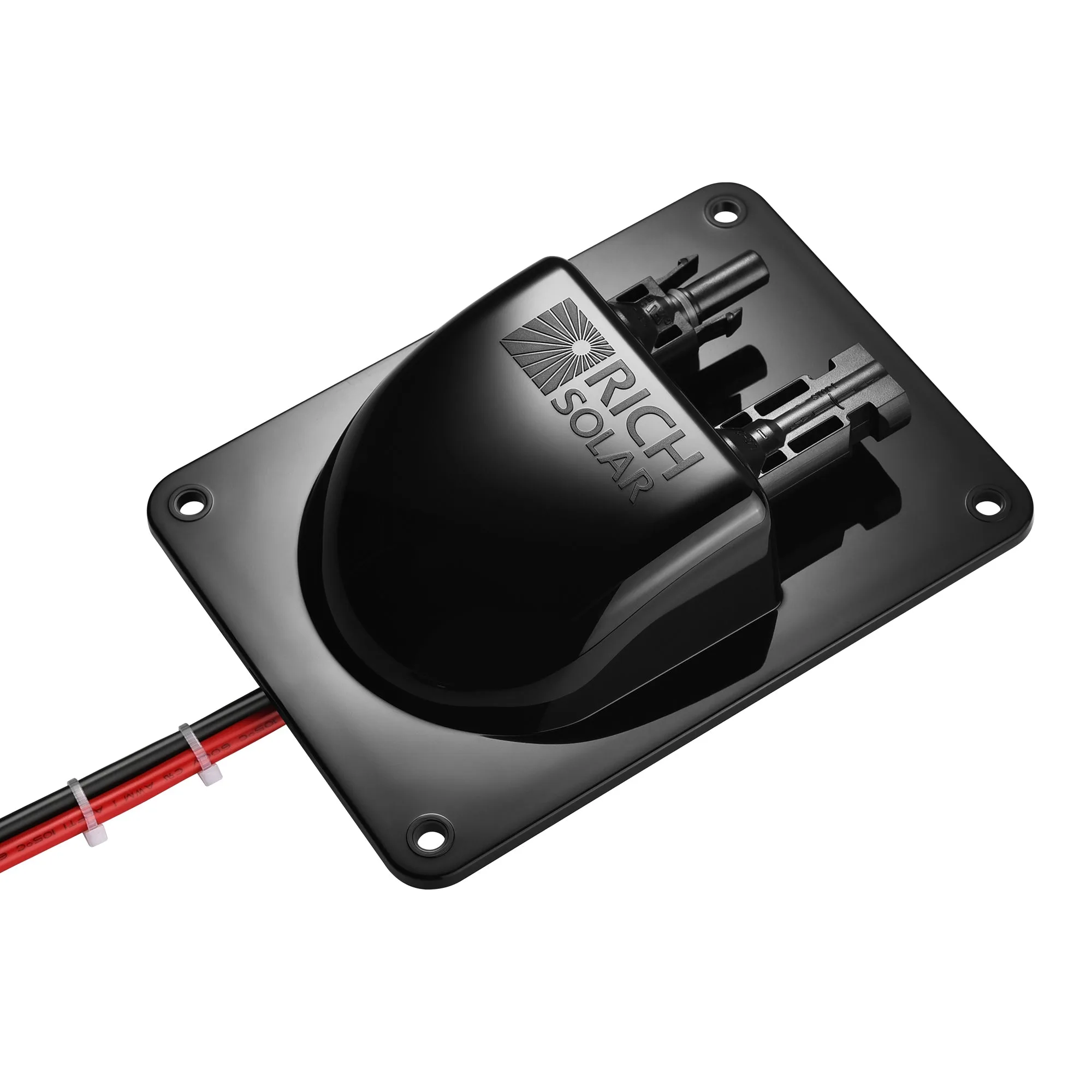

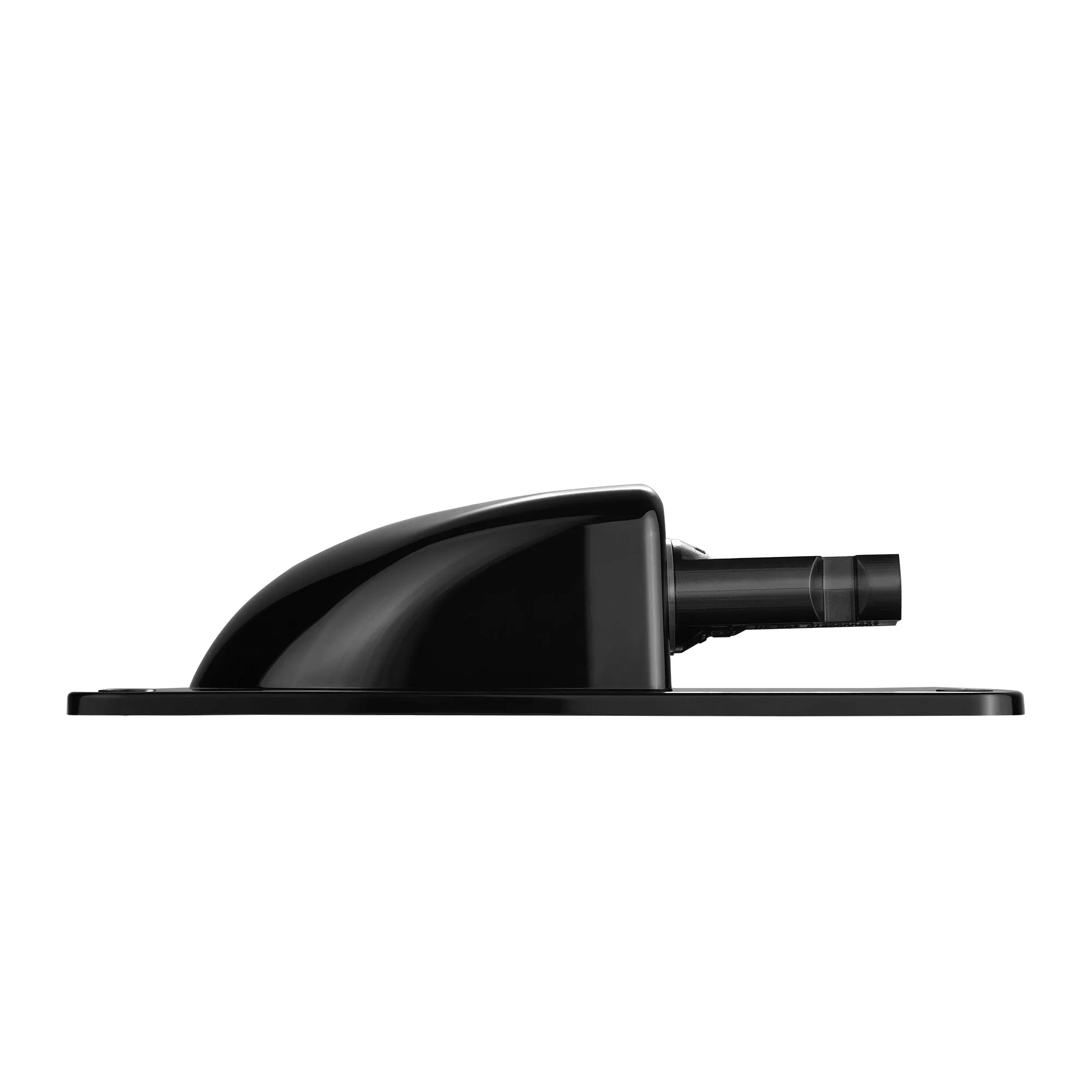

Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL Certified 1FT 10AWG Wires and Solar Connectors | Easy to Install

• 30A/600V Rating: UL1015-certified 10AWG tin-plated copper wires
• Tool-Free MC4 Connectors: Pre-installed, IP68 waterproof, and UL94V0 flame-retardant
• Weatherproof PP Housing: Flame-retardant casing, operating from -40°F to 185°F
• VW-1 Fire-Rated Wiring: PVC-insulated cables withstand up to 221°F without degradation
• Vibration-Proof Design: Reinforced structure ideal for mobile/RV applications
• Compact & Lightweight: Only 5.9×4.3×1.6 in (0.29 lb), requires no roof reinforcement

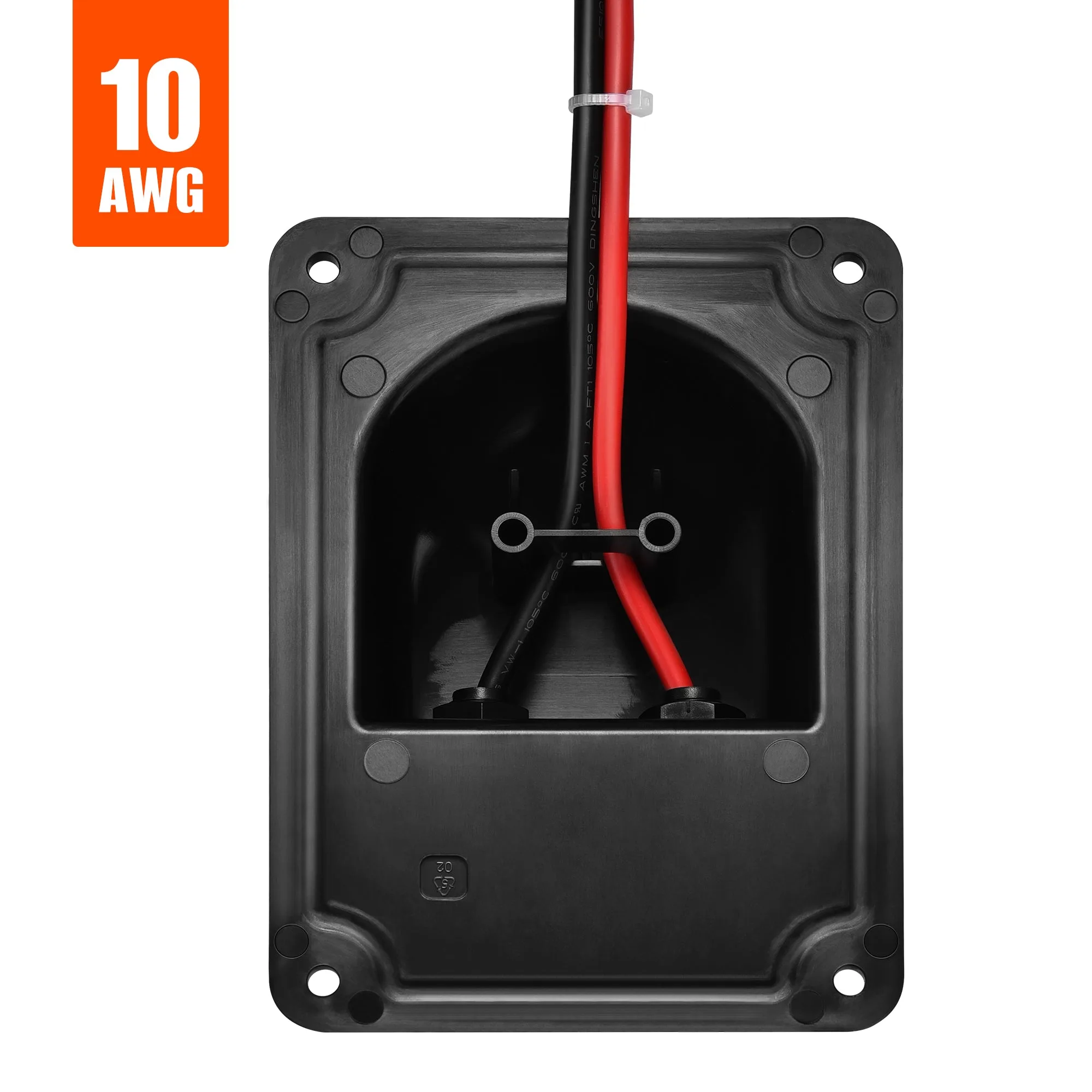

• Color-Coded 10AWG Cables: Red/black wires with clear polarity markings
• Flexible Mounting: Mount with glue, sealant, or self-tapping screws (not included)
• UL Listed Components: Fully certified wires and connectors
• Overcurrent Safeguards: 30A/600V rated insulation for safe operation

• Dimensions (L×W×H): 5.9×4.3×1.6 in
• Weight: 0.29 lb
• Material: Flame-Retardant Polypropylene (PP)
• Color: Black
• Operating Temperature : -40°C to 85°C (-40°F to 185°F)
• Material: PC Shell
• Waterproof Rating: IP68
• Flame Retardant: UL94V0 Certified
• Certification: UL Listed
• Maximum Current: 42A
• Continuous Current: 30A
• Maximum Voltage: 600V (Wire Rating)
• Wire Standard: UL 1015 10AWG (Red/Black)
• Wire Conductor: Tin-Plated Copper
• Wire Insulation: PVC (VW-1 Fire Rated)
• Wire Temperature Range: -15°C to 105°C (5°F to 221°F)
