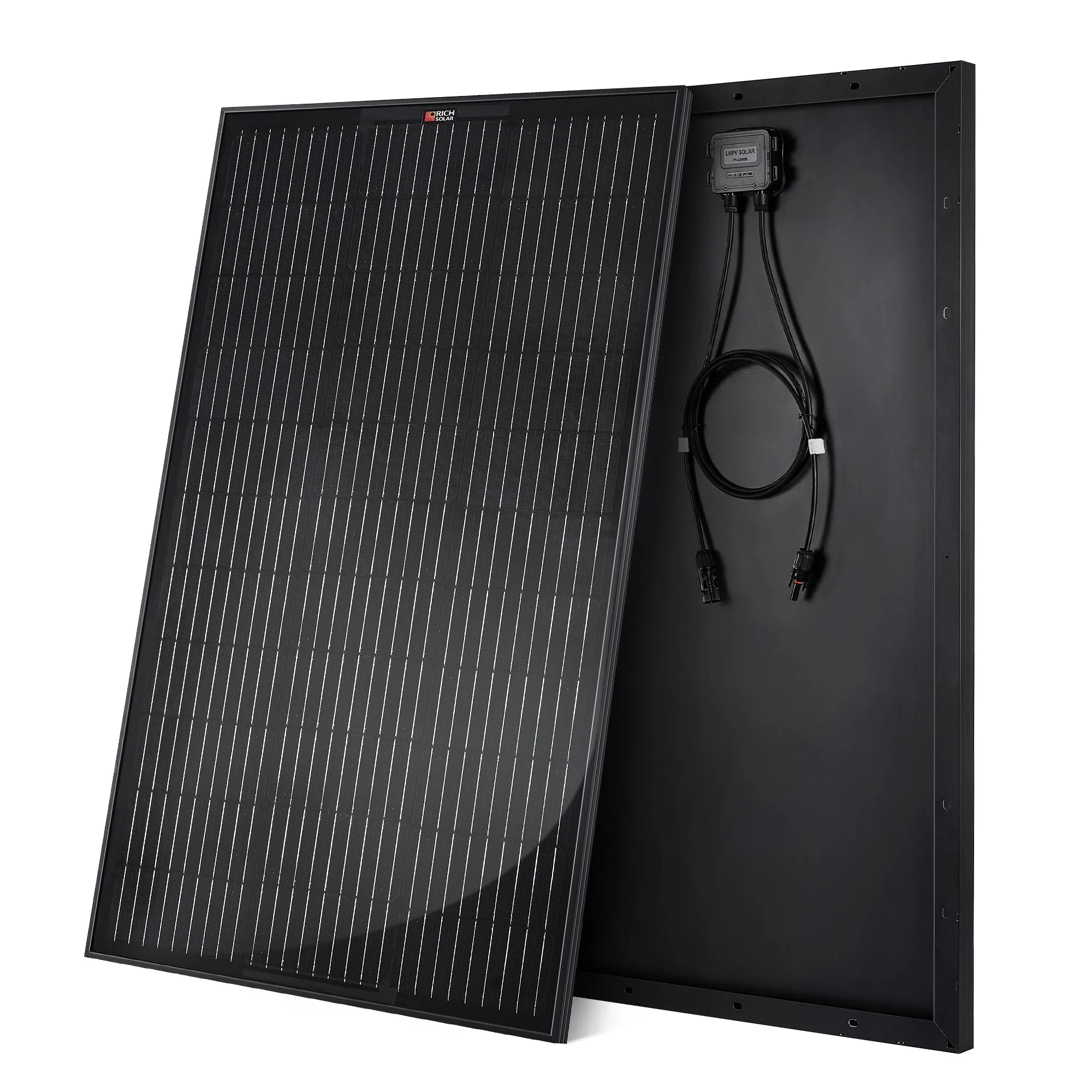

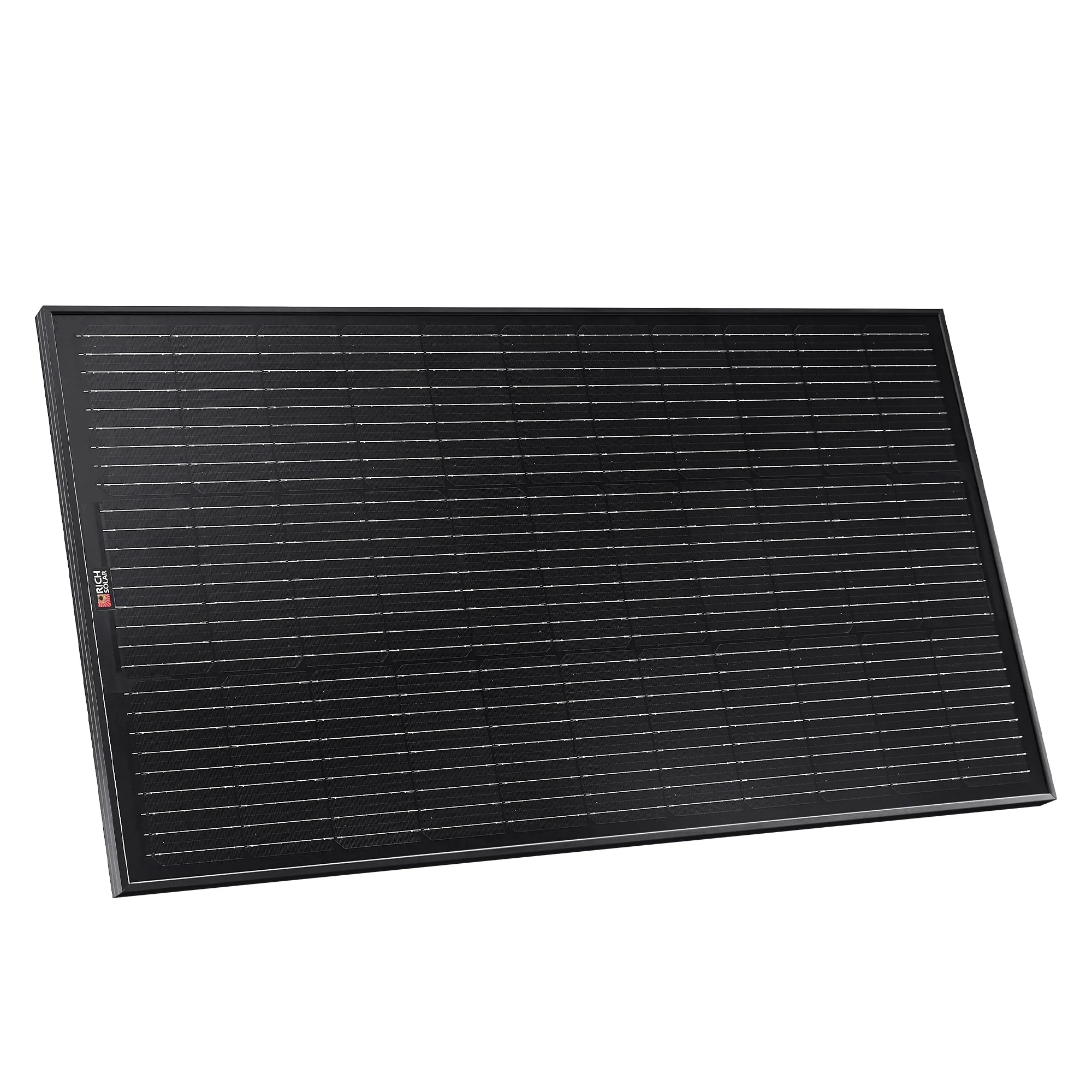

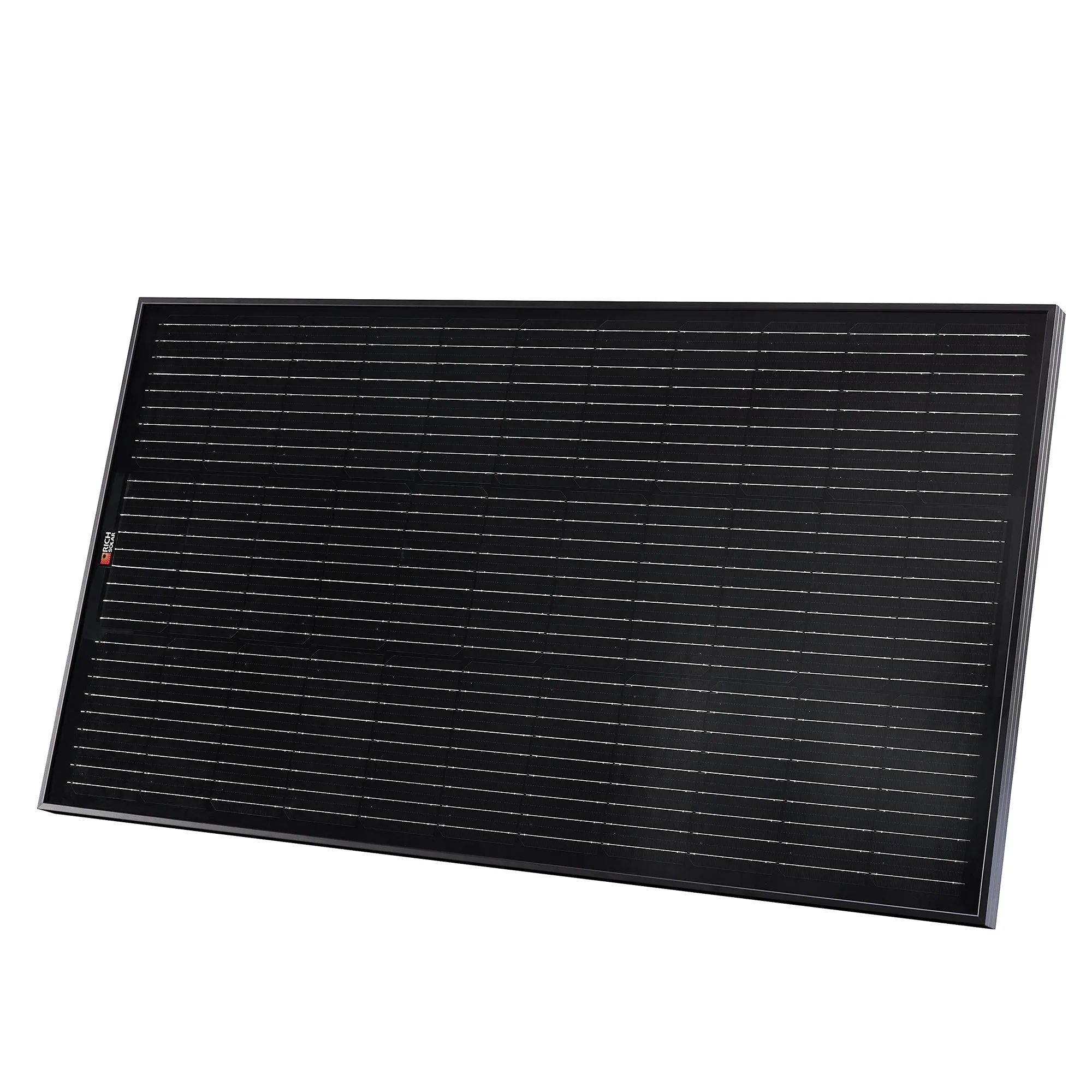

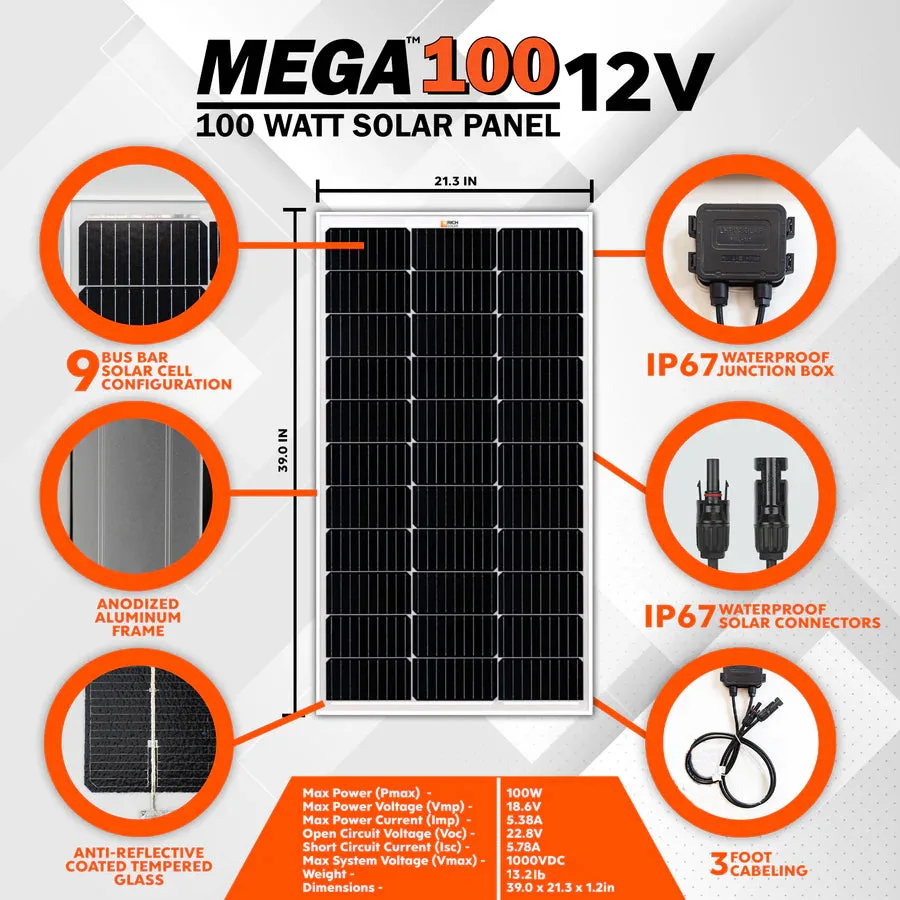

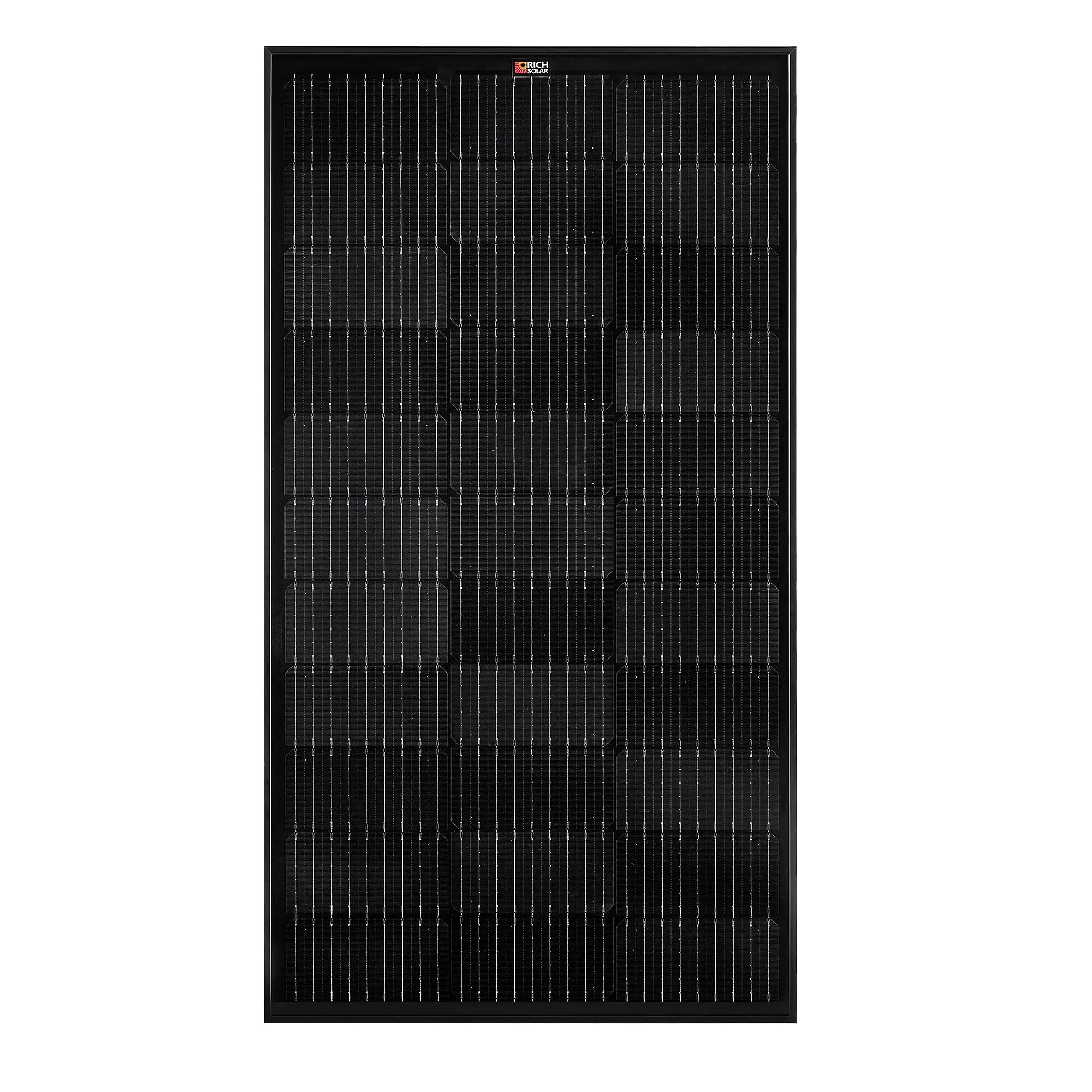

MEGA 100 ONYX | 100 Watt Solar Panel | Premier 12V Off-Grid Solar Panel for Vans, Campers, Boats | 25-Year Output Warranty | UL Certified

• 12V off-grid solar panel.

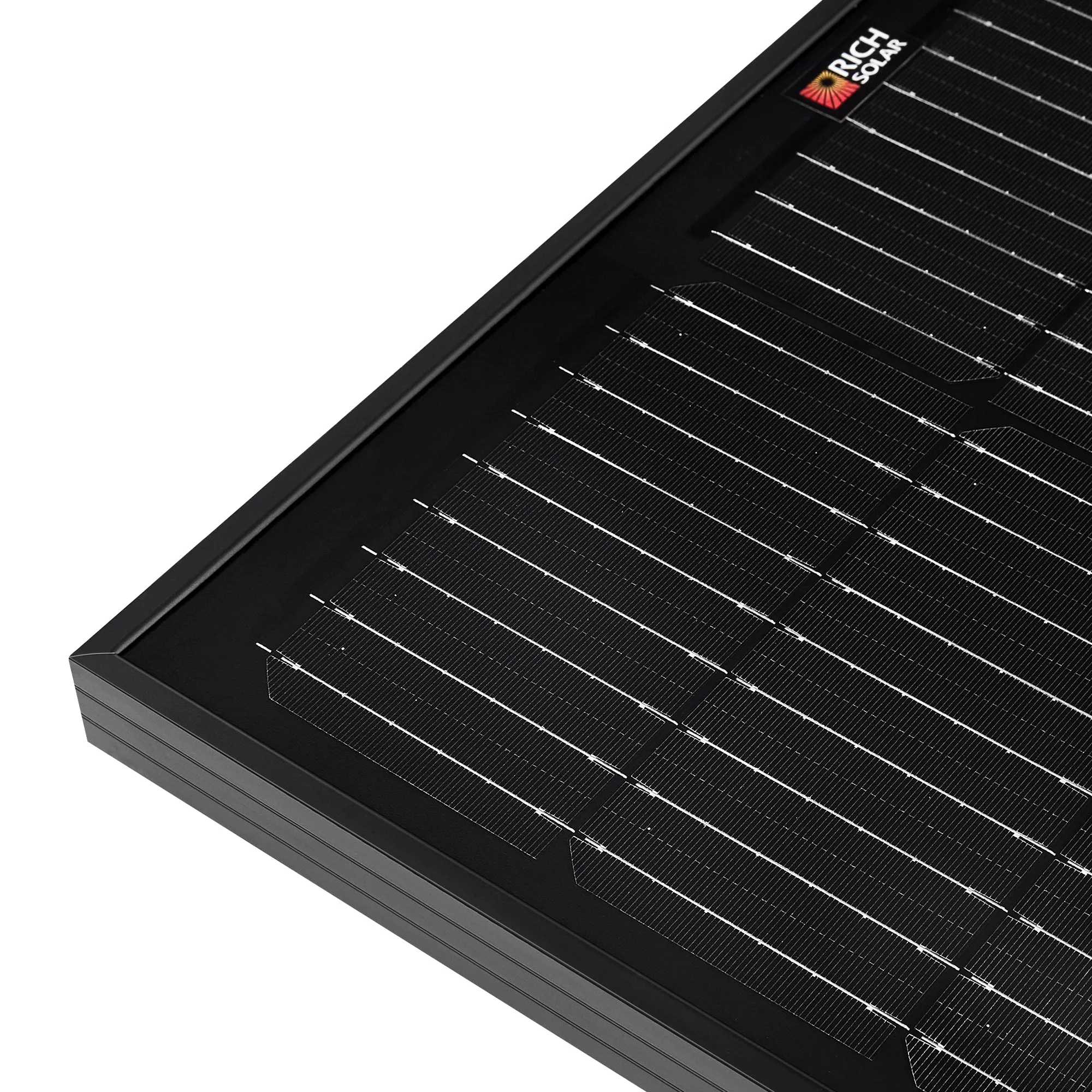

• 9-busbar monocrystalline cells with up to 22.6% efficiency.
• 33-cell design delivers a reliable 100W output.
• 3.2 mm AR-coated tempered glass for maximum durability and light transmission.
• 0 to +5W guaranteed positive power output.
• Excellent low-light performance on cloudy days and at dawn or dusk.
• Designed to withstand salt, ammonia, sand, high temperatures, and humidity.
• Premium quality with 100% EL inspection and PID resistance.
• Certified for 2400 Pa wind loads and 5400 Pa snow loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for RVs, vans, truck campers, and marine systems.
(Installation)

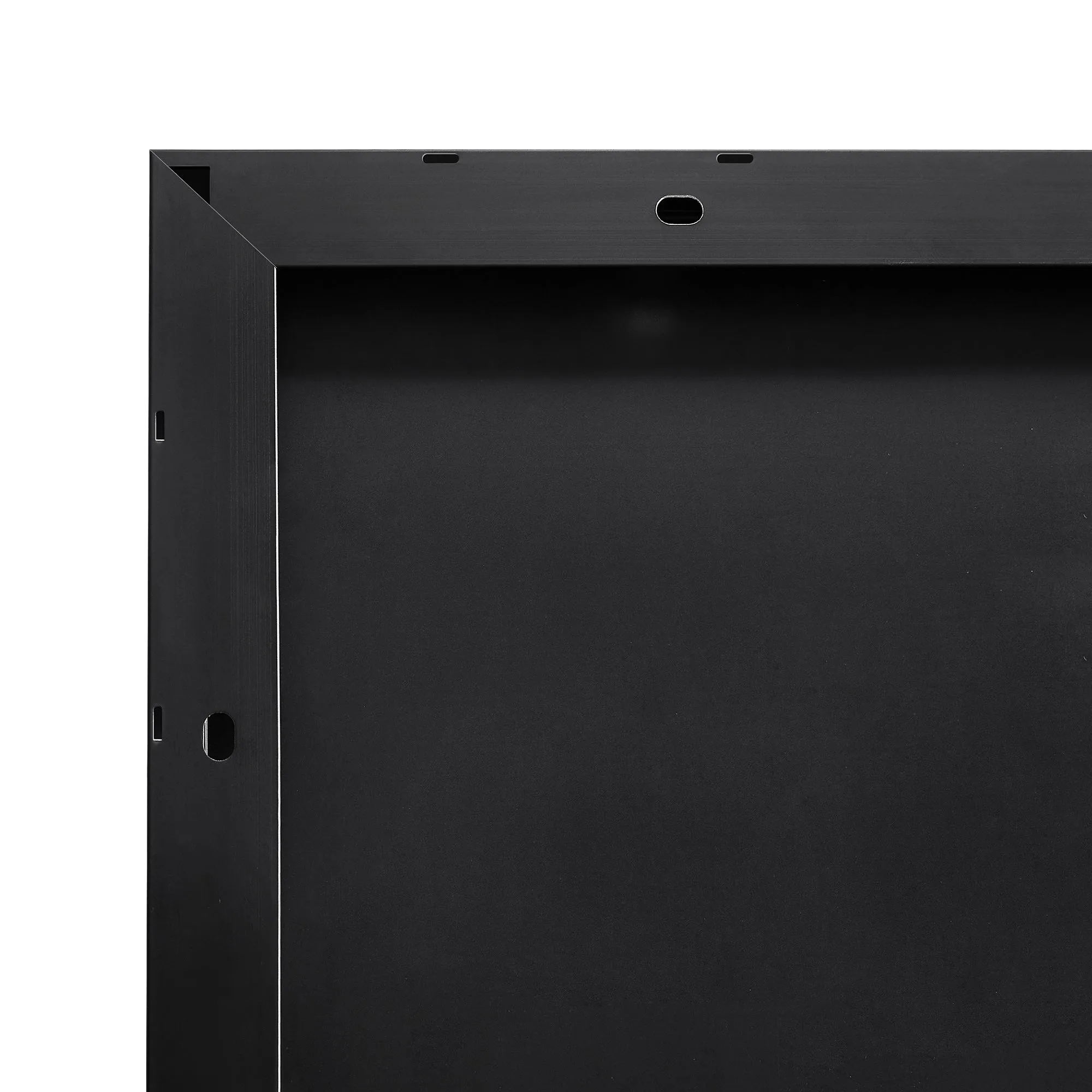

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 14 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters
(Warranty)
• 25-year output warranty.
• 10-year workmanship warranty.
(Built-In Components)

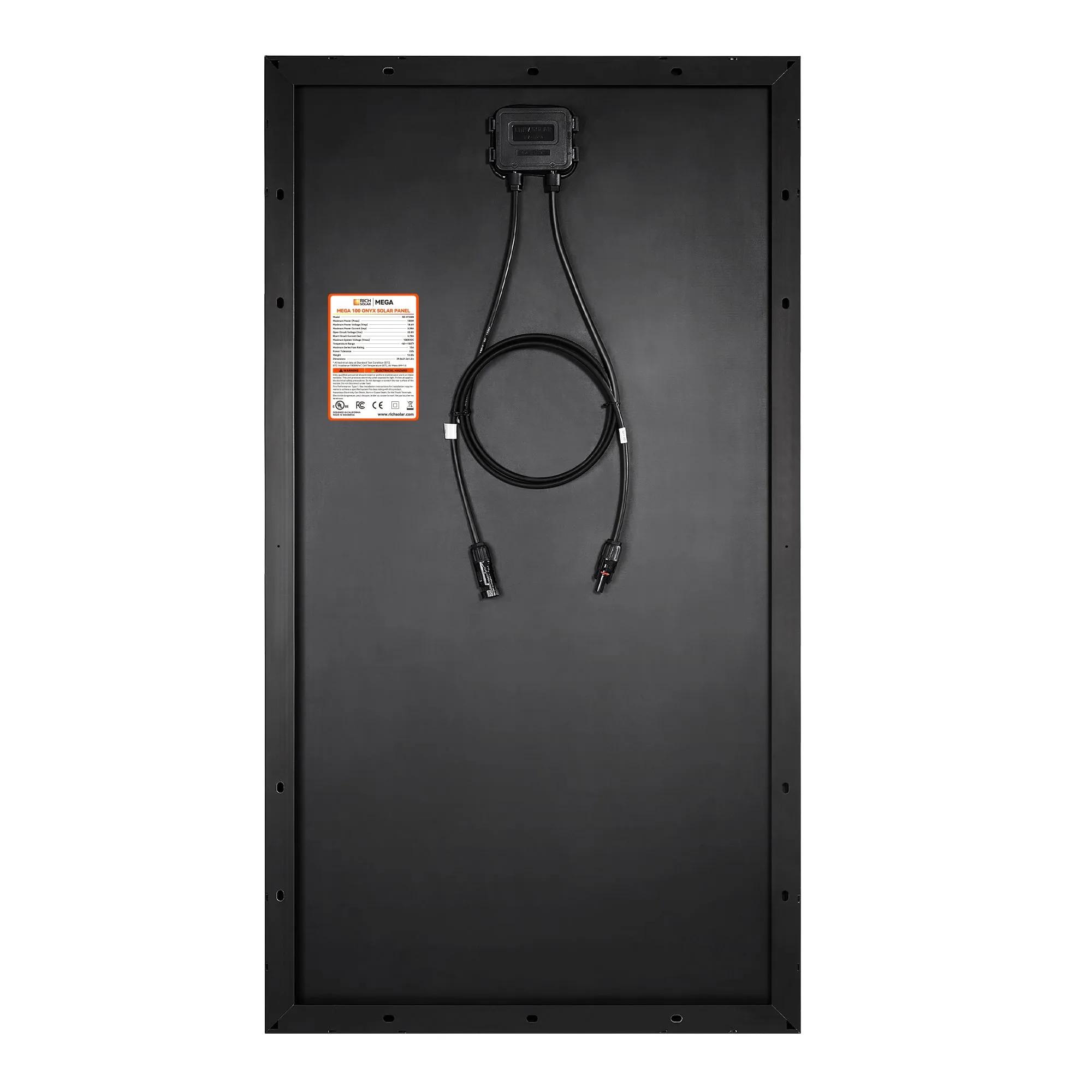

• Panel Leads (Pair): 12AWG, 3 ft each
• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 18.6V
• Maximum Power Current (Imp): 5.38A
• Open Circuit Voltage (Voc): 22.8V
• Short Circuit Current (Isc): 5.78A
• Maximum System Voltage (Vmax): 1000VDC
• Maximum Series Fuse Rating: 15A
• Weight: 13.2 lb

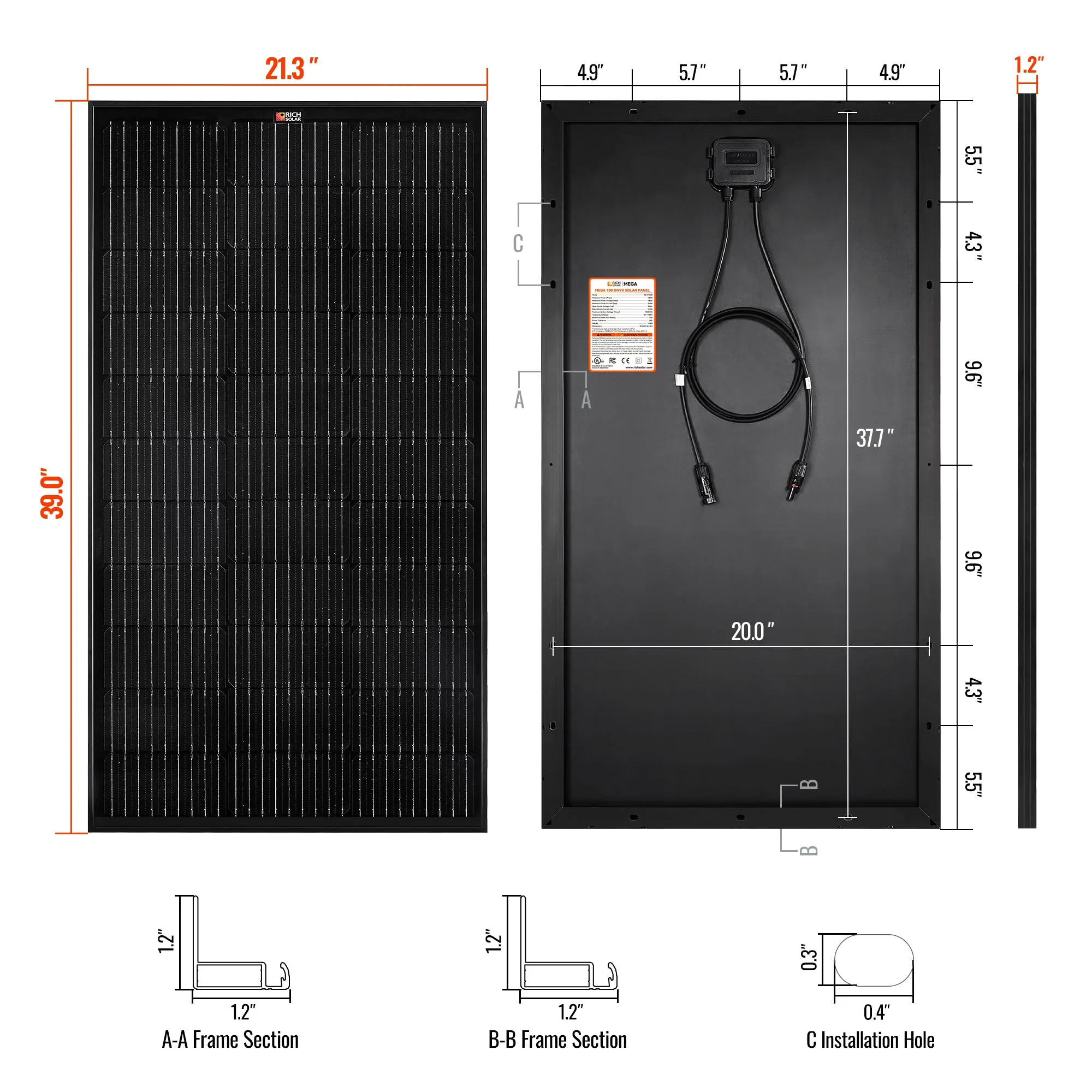

• Dimensions: 39.0 x 21.3 x 1.2 in
