MEGA 100 SLIM ONYX | 100 Watt Slim Solar Panel | Compact 12V Off-Grid Narrow Solar Panel for Vans, Overlanders, Boats | 25-Year Output Warranty | UL Certified

• 12V off-grid solar panel.
• Slim design maximizes roof space with a sleek, space-saving profile.
• 16-busbar N-Type TOPCon cells with up to 25.1% efficiency.
• 34-cell configuration delivers a reliable& 100W output.
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn/dusk.
• Tested for UV exposure, thermal cycling, humidity freeze, and more.
• PID-resistant and 100% EL-inspected to prevent microcracks.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Perfect for RVs, vans, truck campers, marine systems.
(Installation)
• Anodized aluminum frame – lightweight, strong, and corrosion-resistant
• 12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters
(Warranty)
• 25-year output warranty
• 10-year workmanship warranty
(Built-In Components)
• Panel Leads (Pair): 12 AWG, 3 ft each

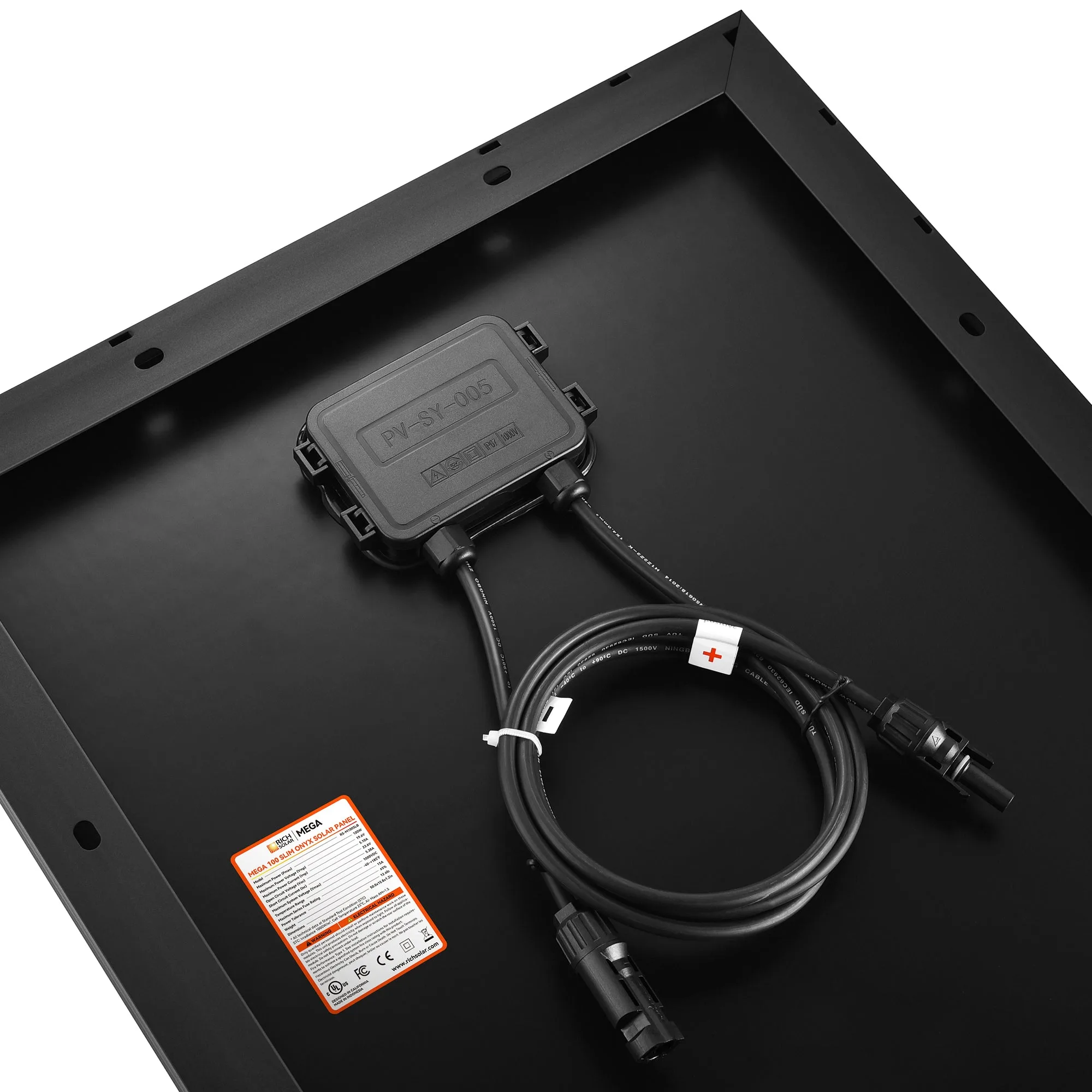

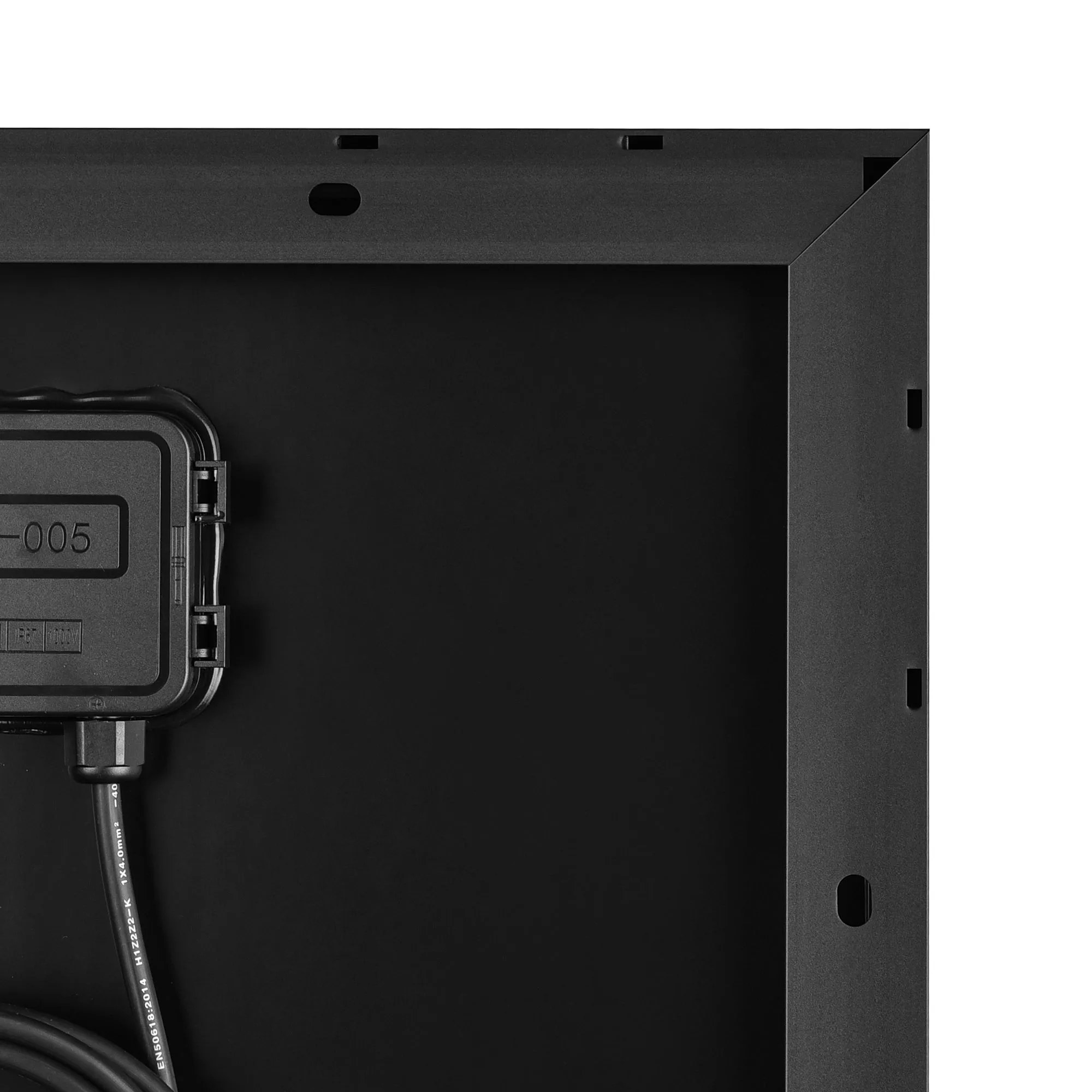

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

• Maximum Power(Pmax): 100W
• Maximum Power Voltage(Vmp): 19.6V
• Maximum Power Current(Imp): 5.1A
• Open Circuit Voltage(Voc): 23.6V
• Short Circuit Current(Isc): 5.38A
• Maximum System Voltage(Vmax): 1000VDC
• Maximum Series Fuse Rating: 15A
• Weight: 12.4 lb

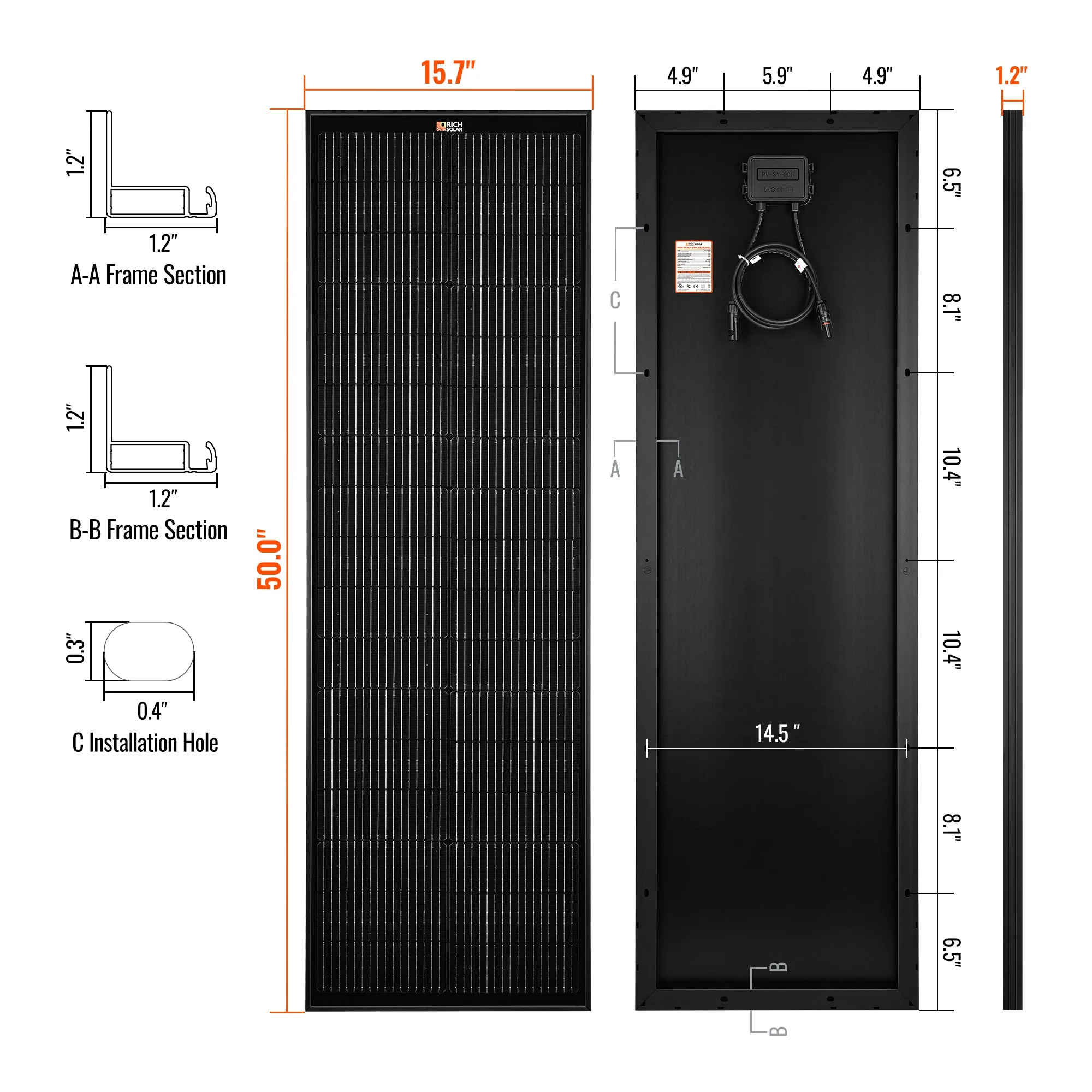

• Dimensions: 50.0 x 15.8 x 1.2 in
