MEGA 100 WITH 3/4" Z BRACKETS | 12V 100W Solar Panel for RV, Boat, Cabins | 22.6% Efficiency, 25-Year Warranty | UL Certified | Pallet Orders Only (44PCS)

• 12V off-grid solar panel.
• 9-busbar monocrystalline cells with up to 22.6% efficiency.
• 33-cell design delivers a reliable 100W output.
• 3.2 mm AR-coated tempered glass for maximum durability and light transmission.
• 0 to +5W guaranteed positive power output.
• Excellent low-light performance on cloudy days and at dawn or dusk.
• Designed to withstand salt, ammonia, sand, high temperatures, and humidity.
• Premium quality with 100% EL inspection and PID resistance.
• Certified for 2400 Pa wind loads and 5400 Pa snow loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for RVs, vans, truck campers, and marine systems.
(Installation)
• Anodized aluminum frame – lightweight, strong, and corrosion-resistant

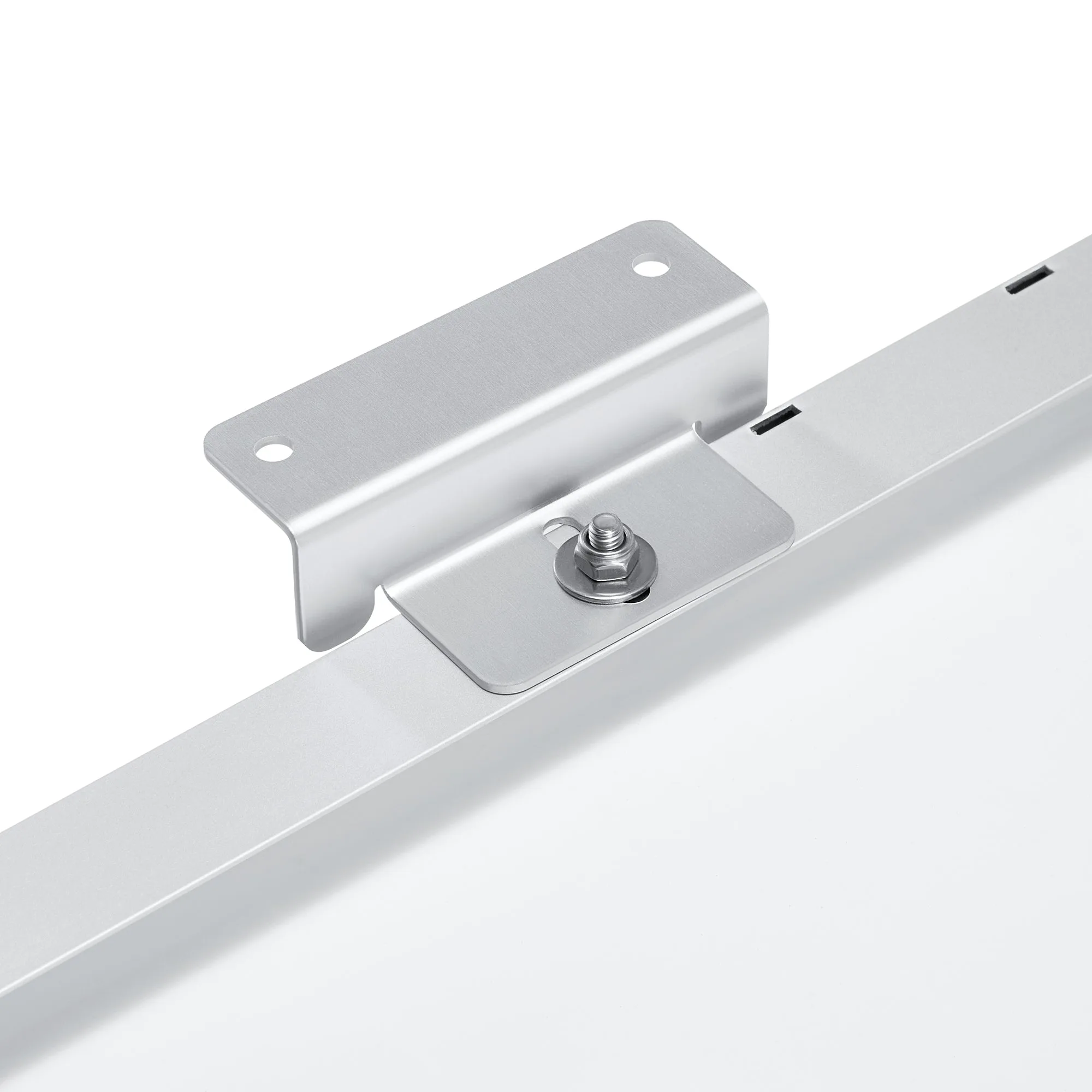

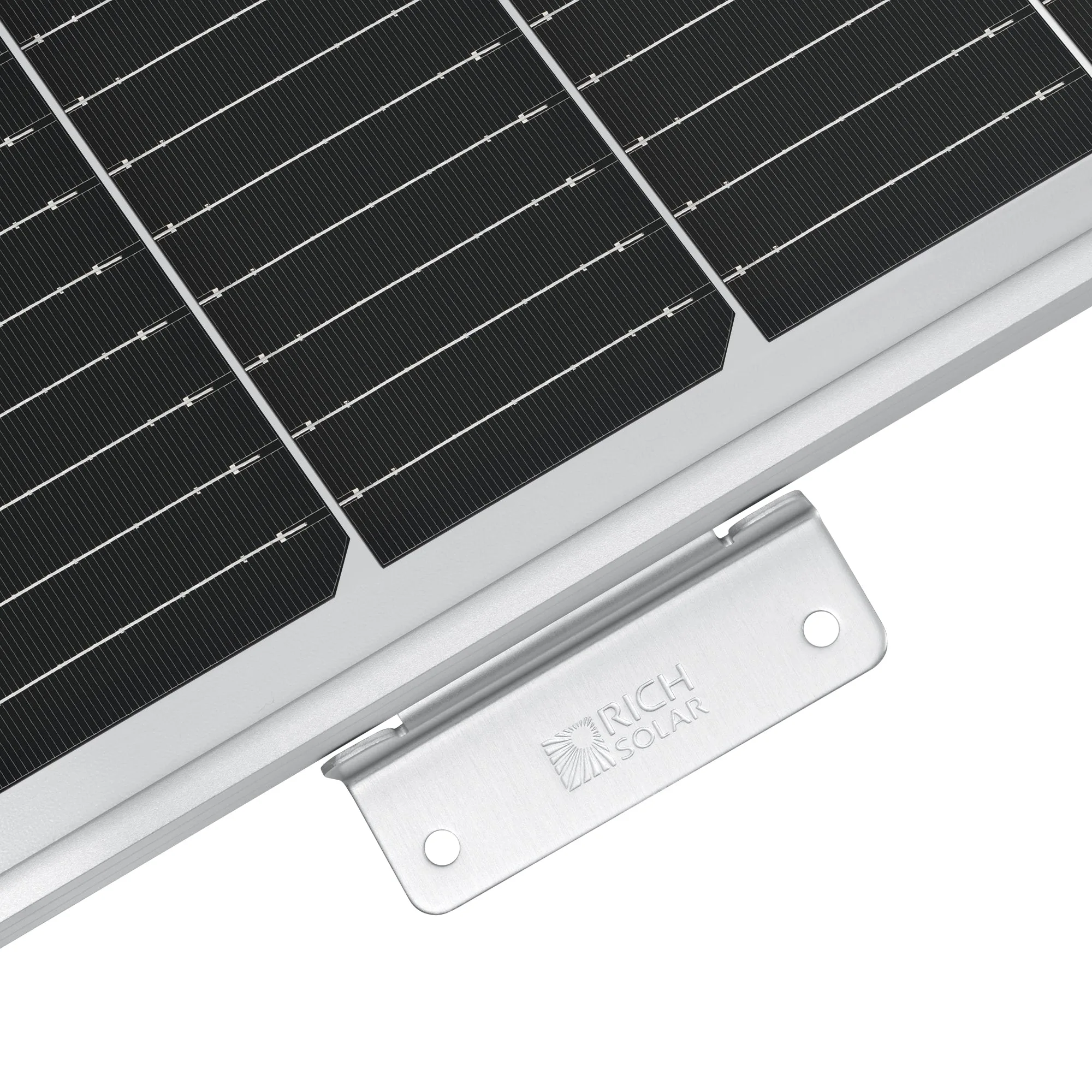

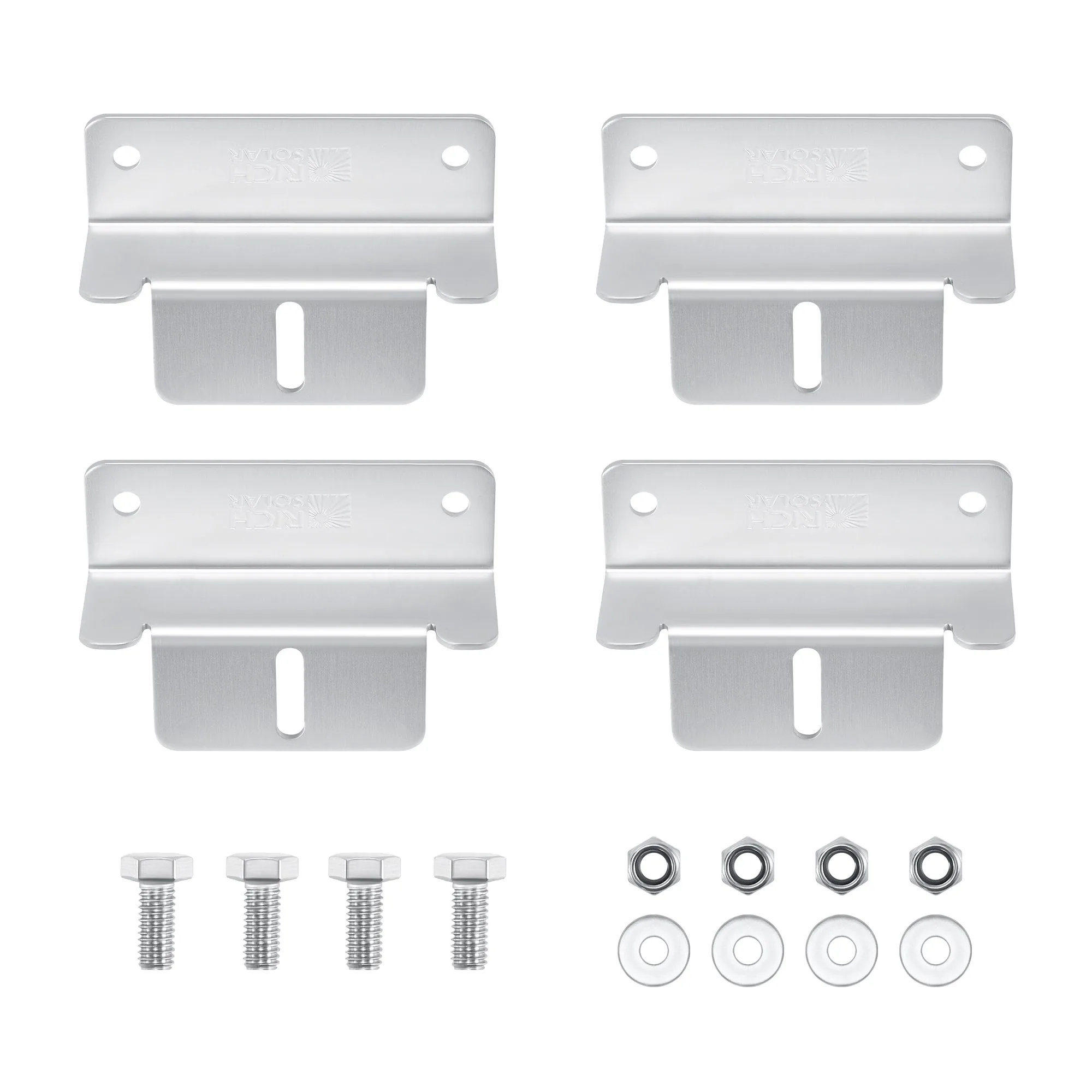

• 3/4 in. anodized aluminum Z-brackets for quick and secure installation.
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters
(Warranty)
• 25-year output warranty.
• 10-year workmanship warranty.
(Built-In Components)
• Panel Leads (Pair): 12AWG, 3 ft each

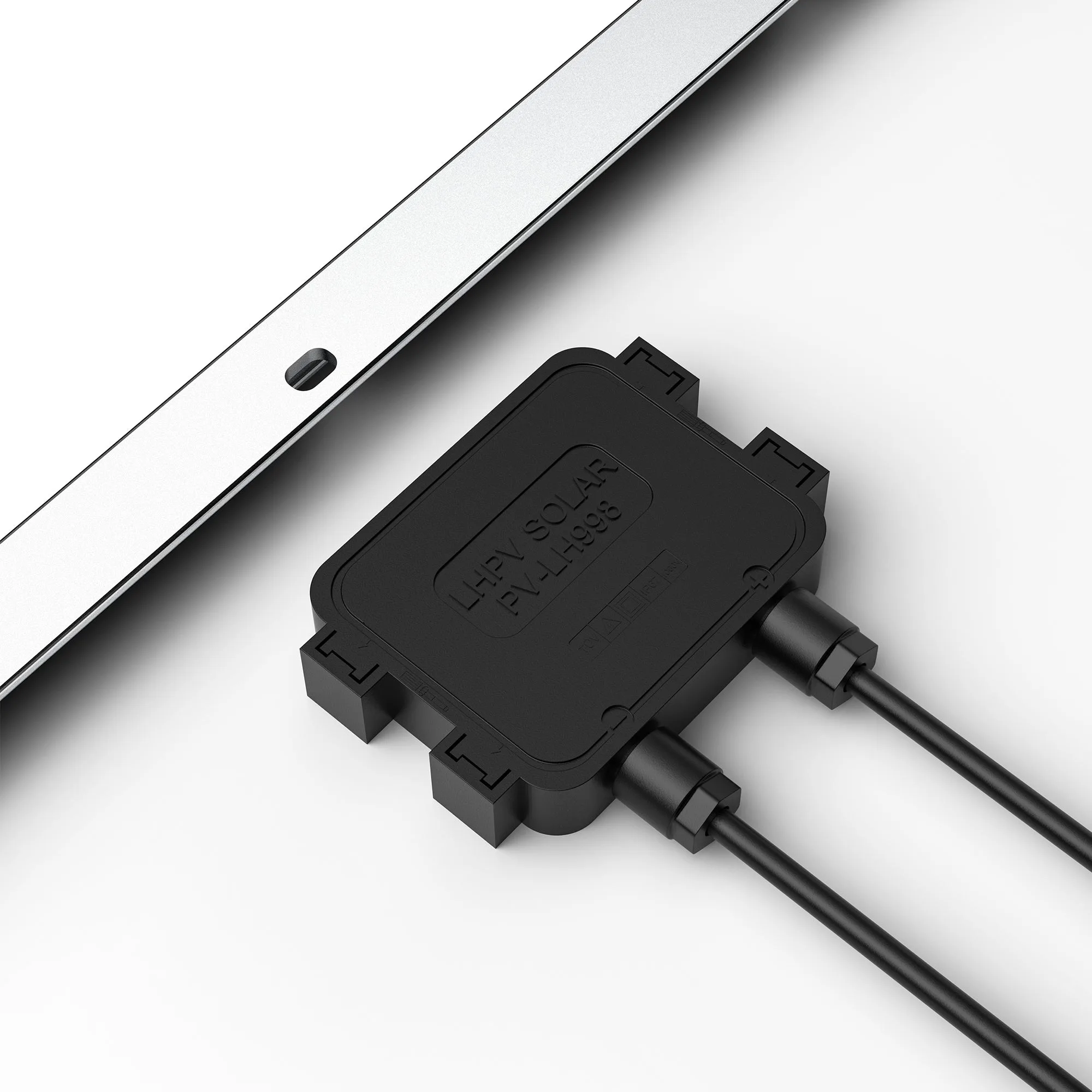

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

• Peak Power: 100W
• Max Efficiency: 22.6%
• Max Power Voltage (Vmp): 18.6V
• Max Power Current (Imp): 5.38A
• Open Circuit Voltage (Voc): 22.8V
• Short Circuit Current (Isc): 5.78A
• Max Series Fuse Rating: 10A
• Number of Cells: 3 x 11 (33 cells total)
• Front Glass: 3.2 mm Tempered Glass
• Frame Material: Anodized Aluminium Alloy&
• Operating Temperature: -40°F to 185°F

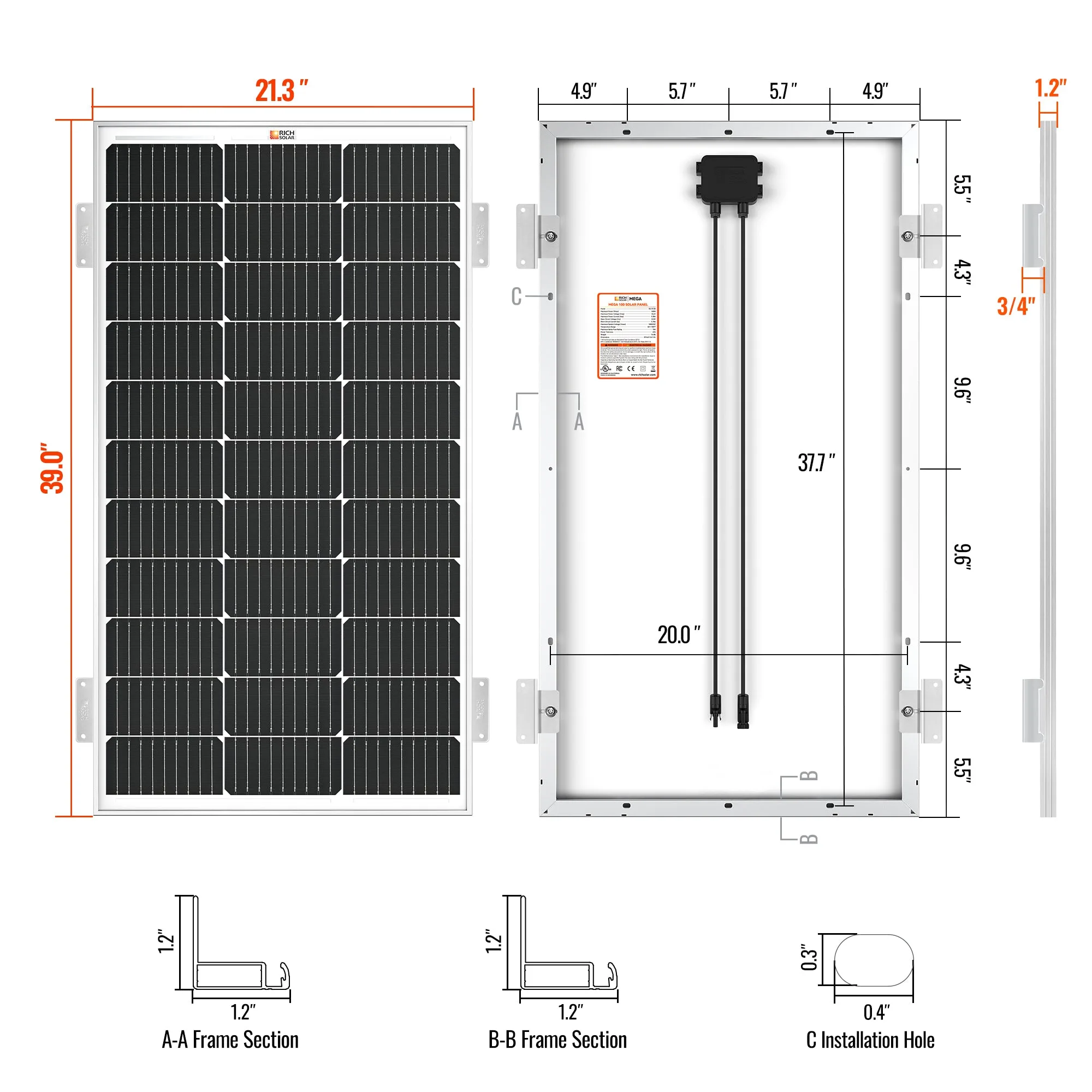

• Dimensions: 39.0" L × 21.3" W × 1.2" H
• Weight: 13.2 lb
• Z-Bracket Height: 3/4 in
