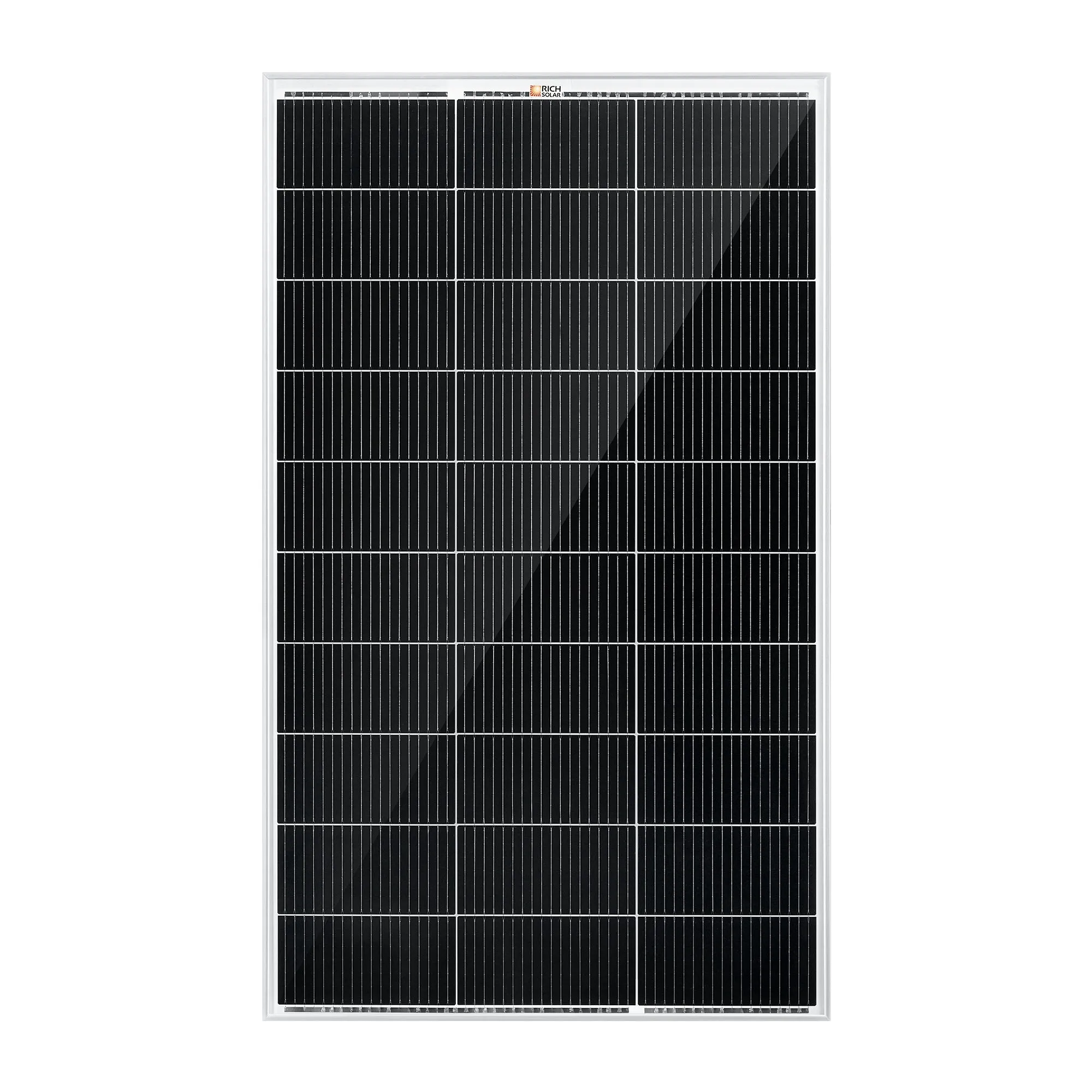

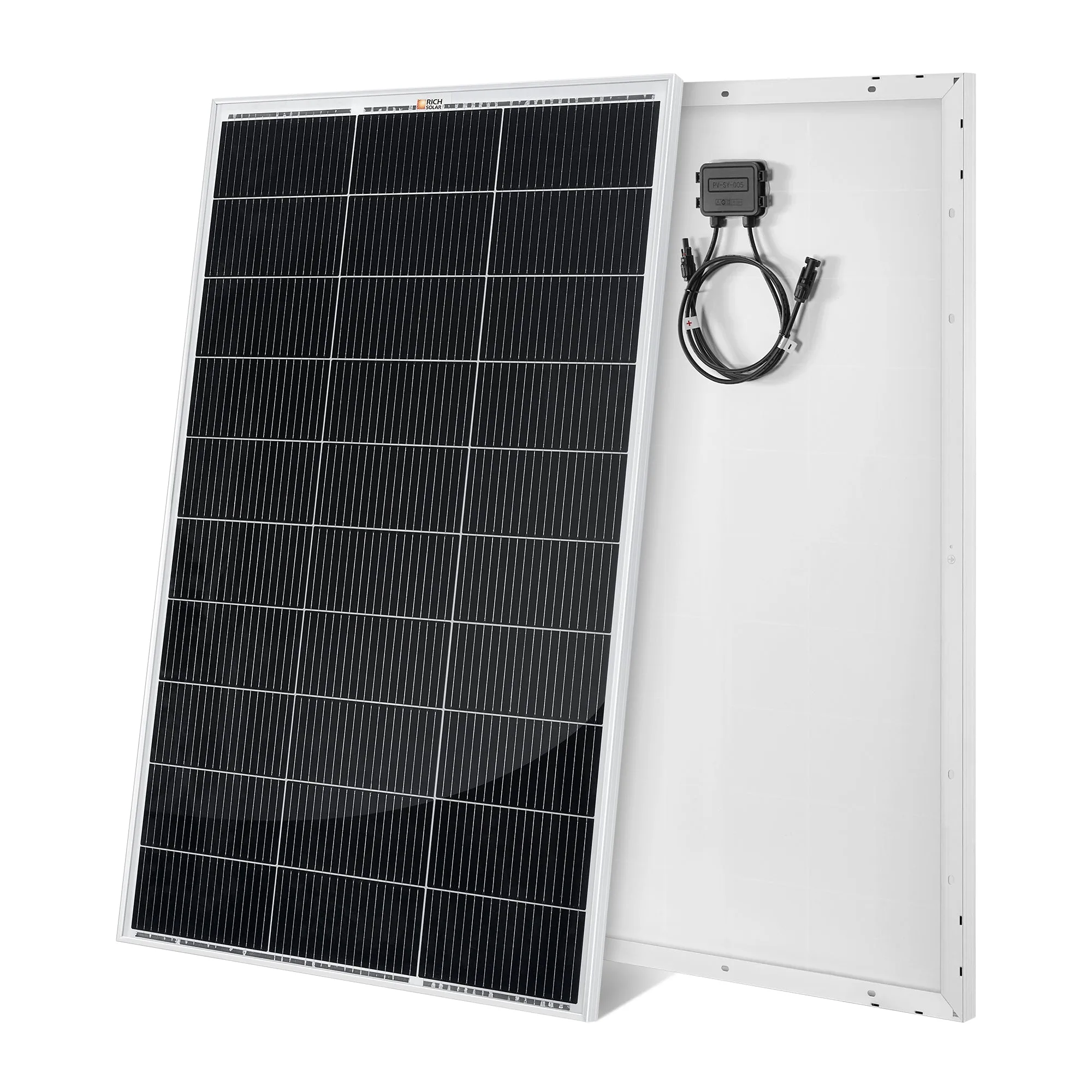

MEGA 150 | 150 Watt Solar Panel | Lightweight 12V Off-Grid Solar Panel for RVs, Cabins, Boats | 25-Year Output Warranty | UL Certified

• 12V off-grid solar panel.

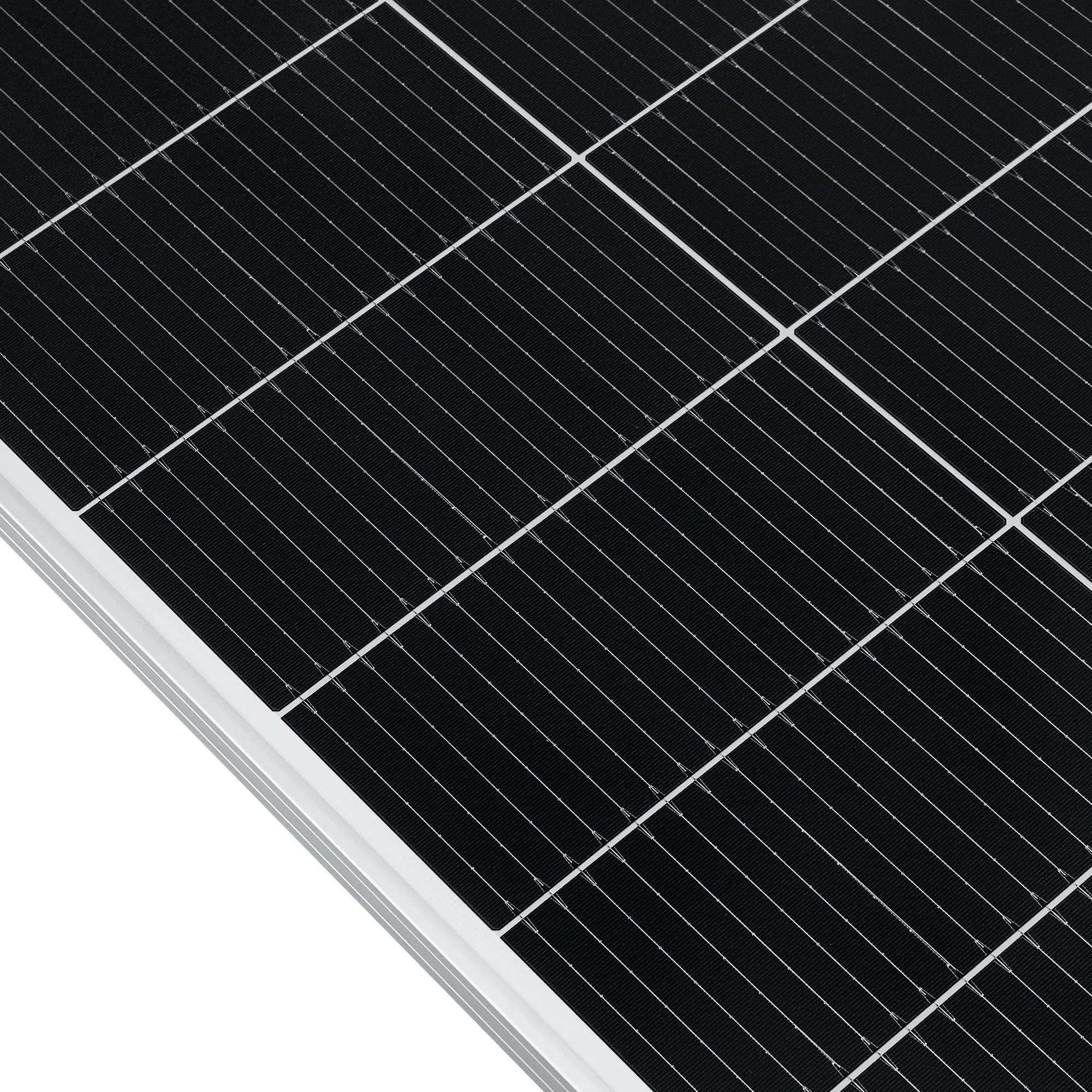

• 18-busbar N-Type TOPCon cells with up to 25.3% efficiency.
• 30-cell configuration delivers a reliable 150W output.
• 3.2 mm AR-coated tempered glass maximizes sunlight capture and durability.
• Power tolerance 0 to +5W ensures at least the rated output.
• Excellent low-light performance on cloudy days and at dawn/dusk.
• Rigorously tested for UV, thermal cycling, humidity freeze, and more.
• PID-resistant and double EL-inspected to prevent microcracks.
• Rated for 5400 Pa snow loads and 2400 Pa wind loads.
• Certified to UL 61730, IEC 61215, and CSA C22.2 standards.
• Ideal for RVs, boats, cabins, and off-grid power systems..
(Installation)

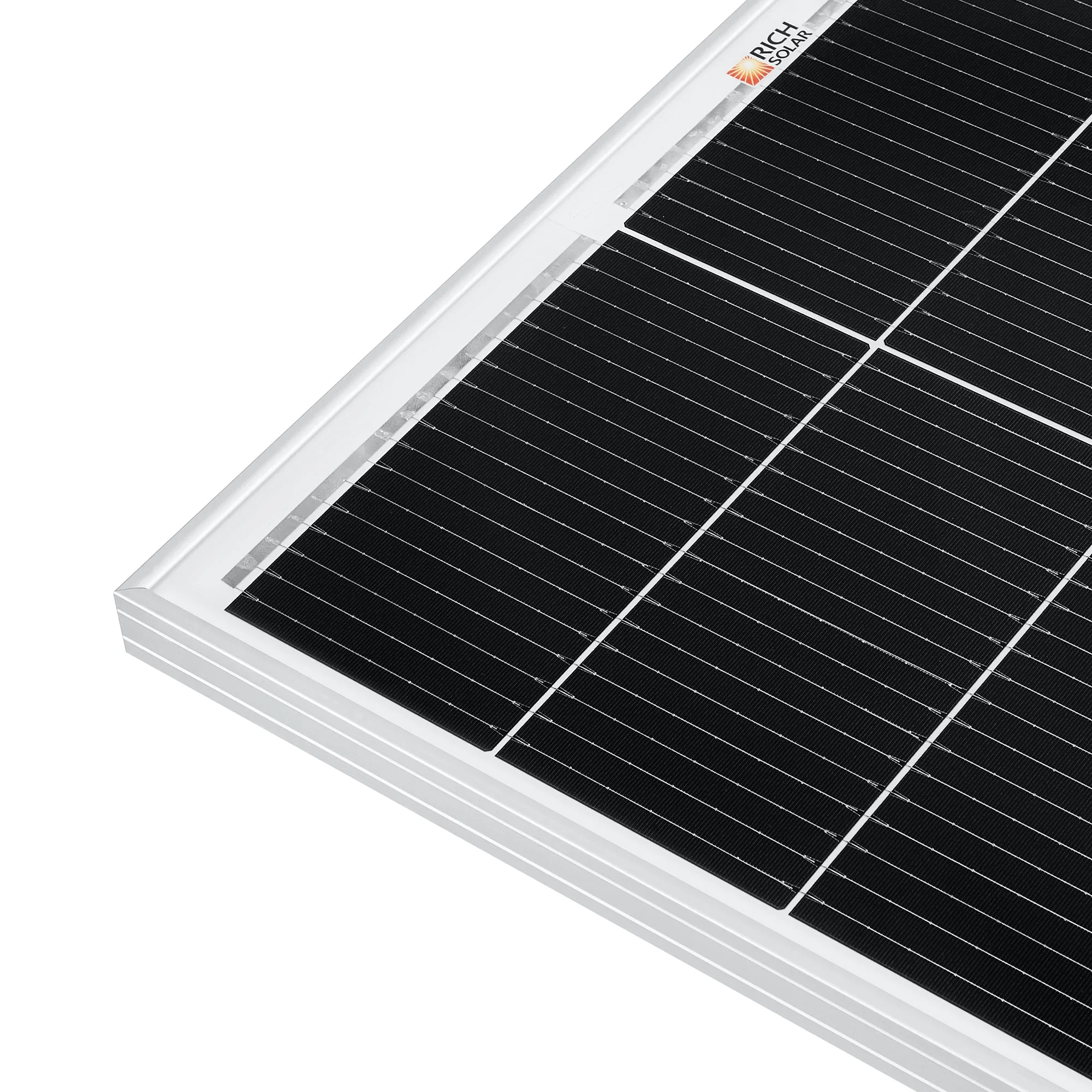

• Anodized aluminum frame – lightweight, strong, and corrosion-resistant

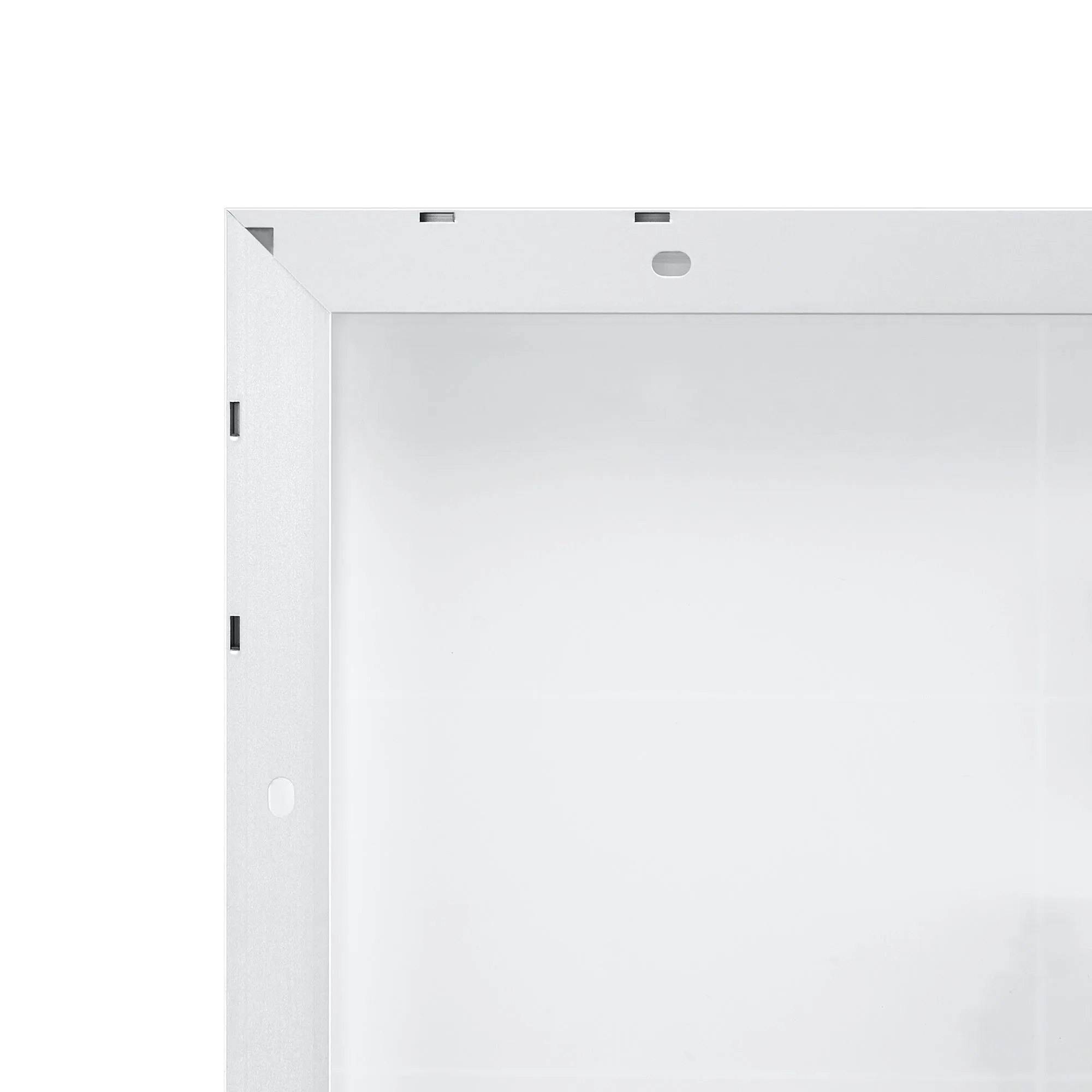

• 14 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
• MC4 connectors with 3 ft pre-attached cables for quick and easy installation
• Compatible with both on-grid and off-grid inverters
(Warranty)
• 25-year output warranty.
• 10-year workmanship warranty.
(Built-In Components)
• Panel leads (pair): 12 AWG, 3 ft each

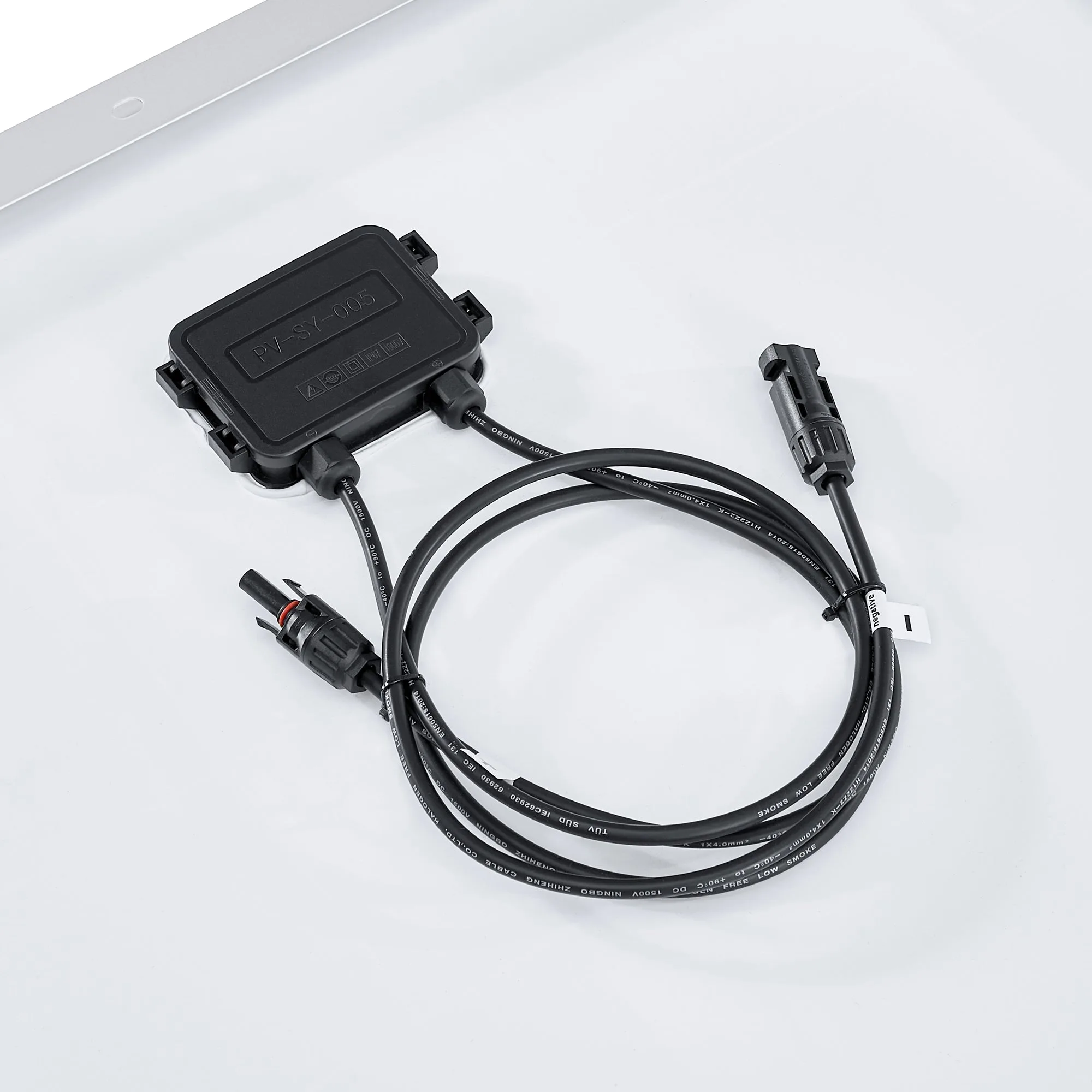

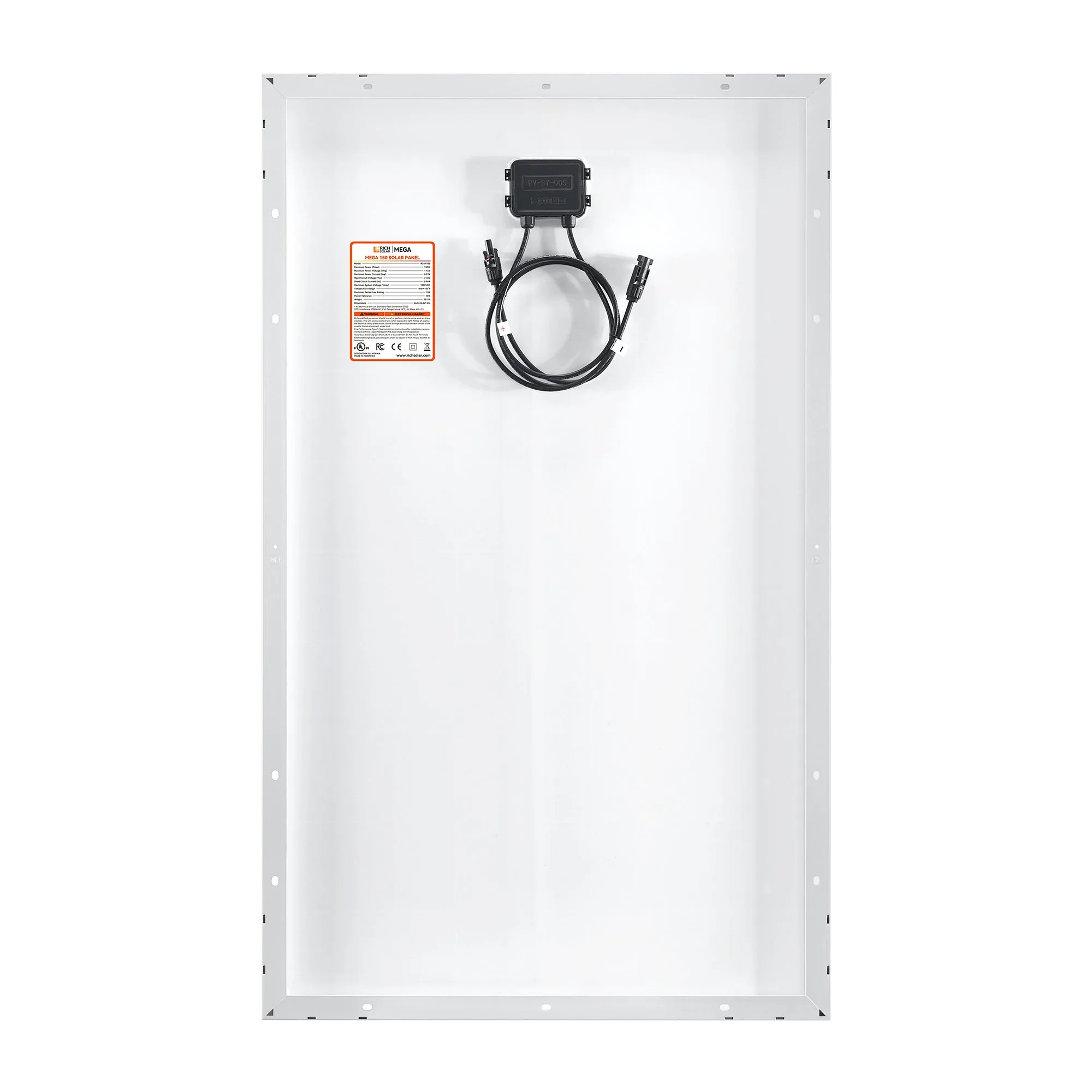

• IP67-rated waterproof junction box
• IP67-rated waterproof solar connectors

• Maximum Power (Pmax): 150 W
• Maximum Power Voltage (Vmp): 17.5V
• Maximum Power Current (Imp): 8.57A
• Open Circuit Voltage (Voc): 21.8V
• Short Circuit Current (Isc): 8.94A
• Maximum System Voltage (Vmax): 1000VDC
• Maximum Series Fuse Rating: 10A
• Temperature Range: -40 ~ +185°F
• Weight: 18.1 lb

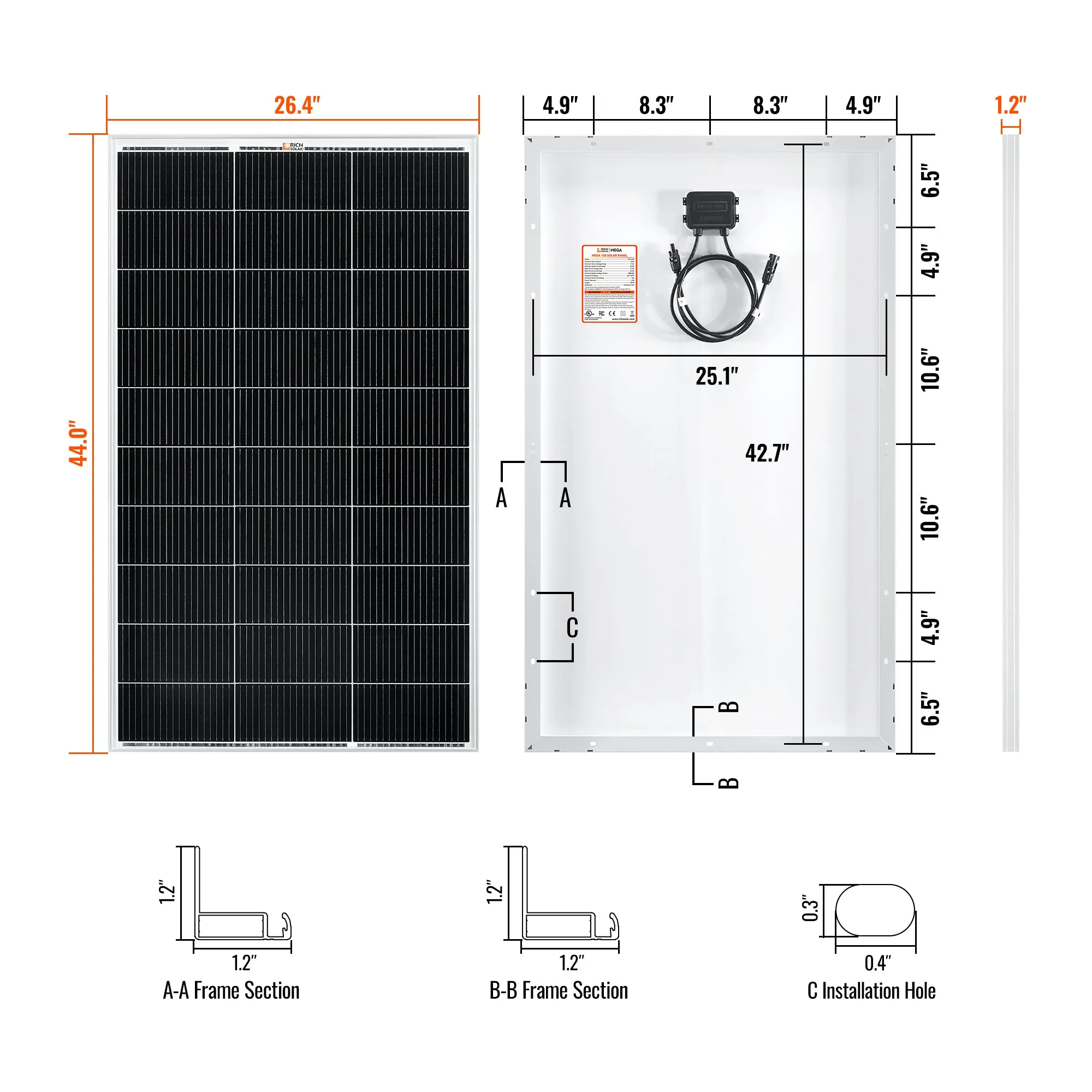

• Dimensions: 44.0 x 26.4 x 1.2 in
