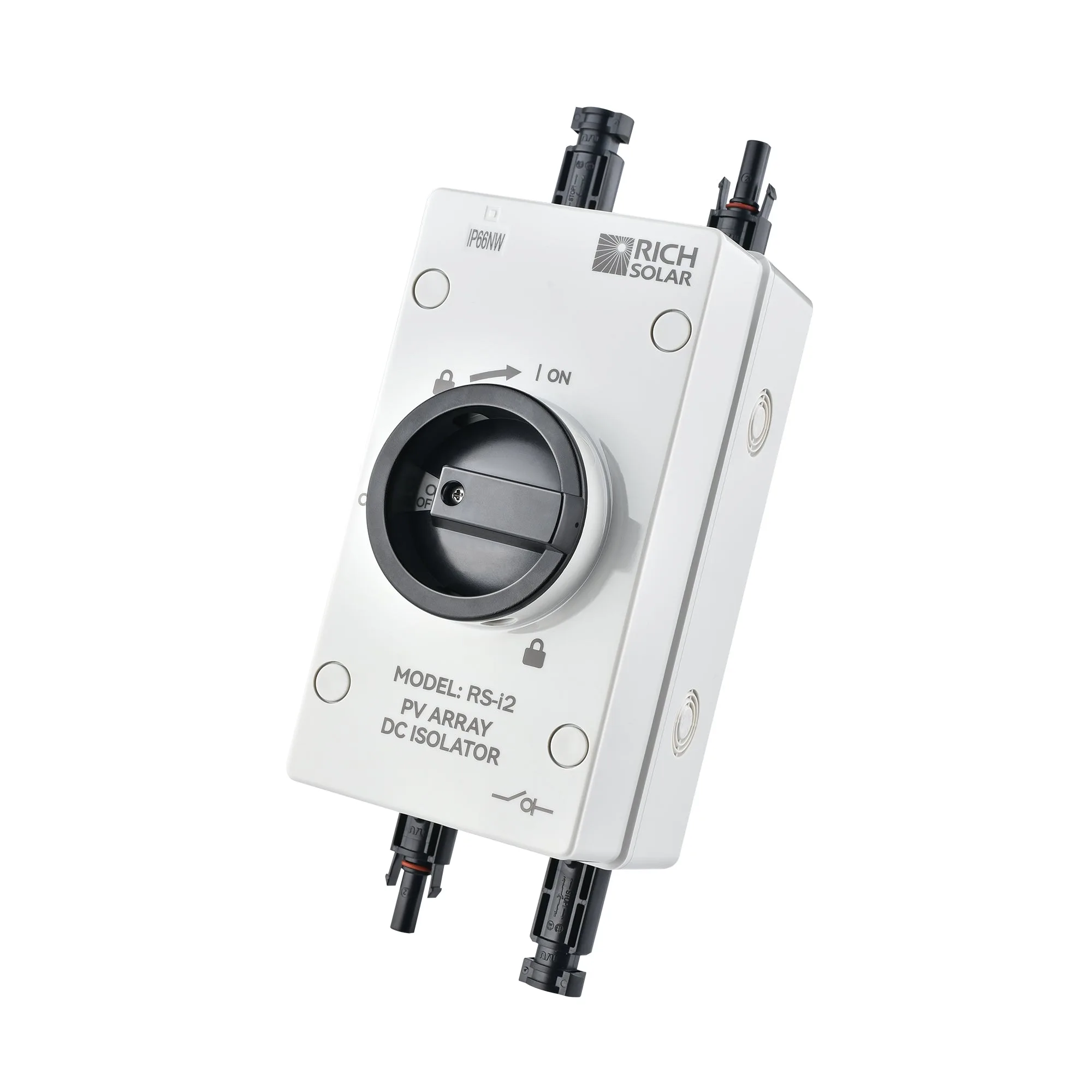

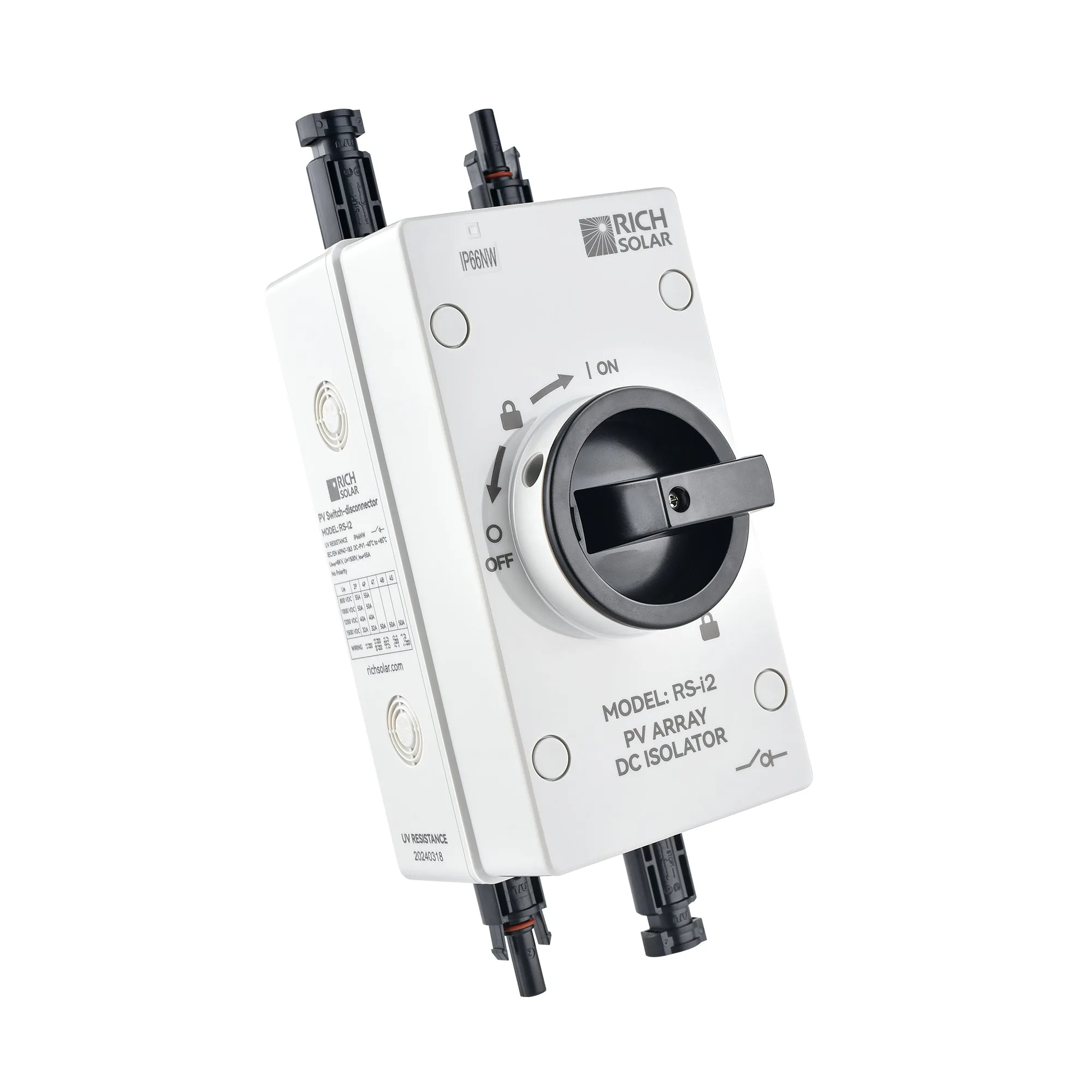

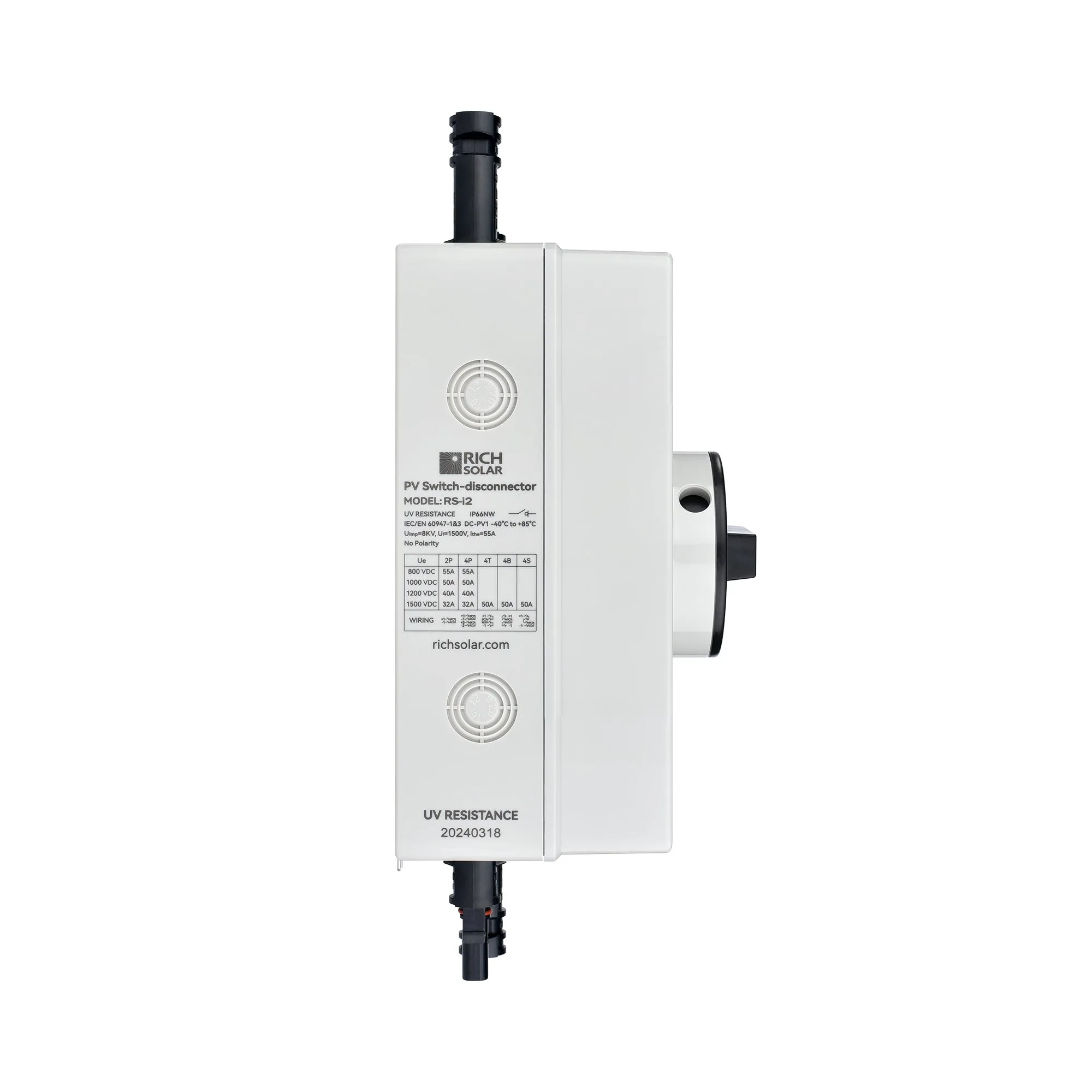

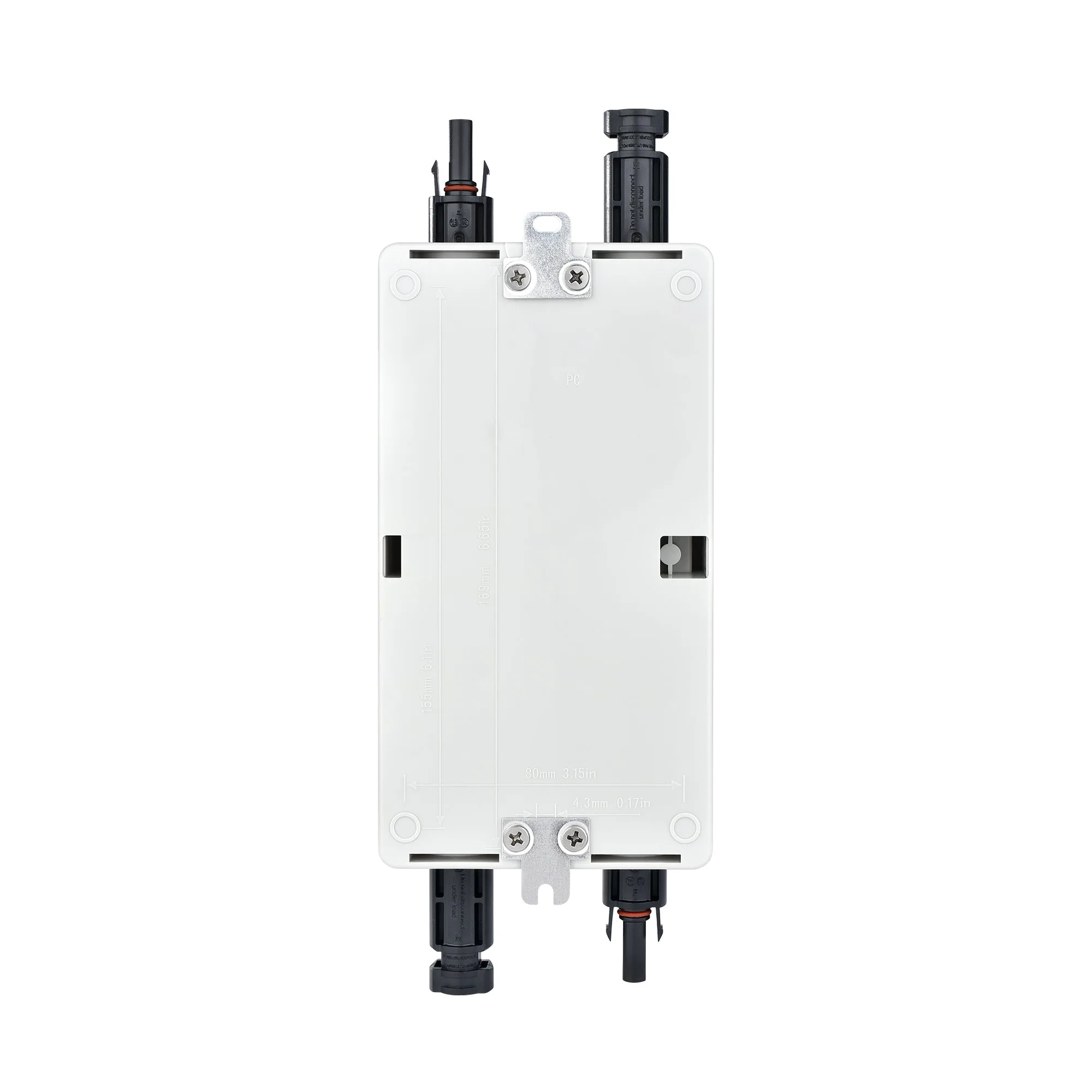

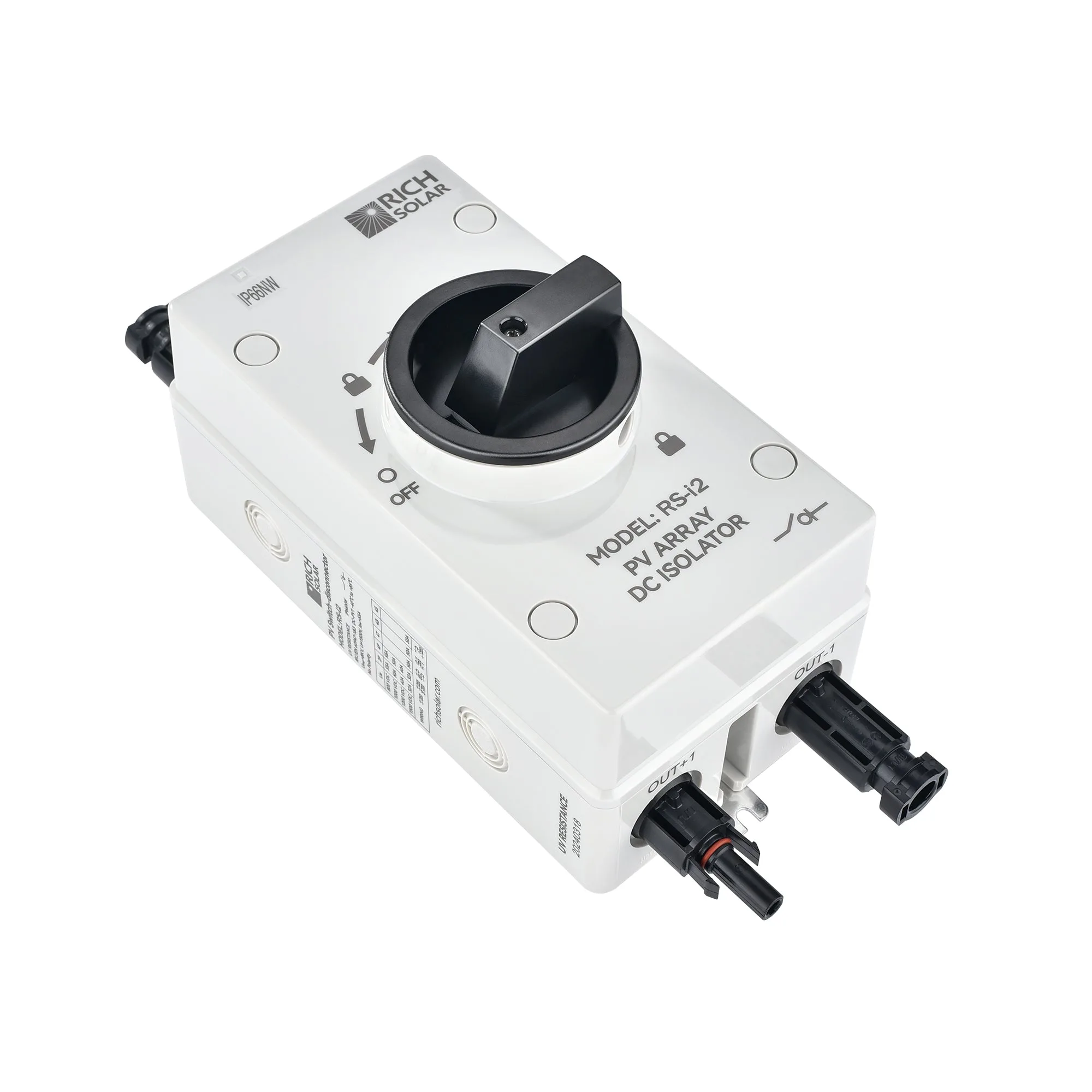

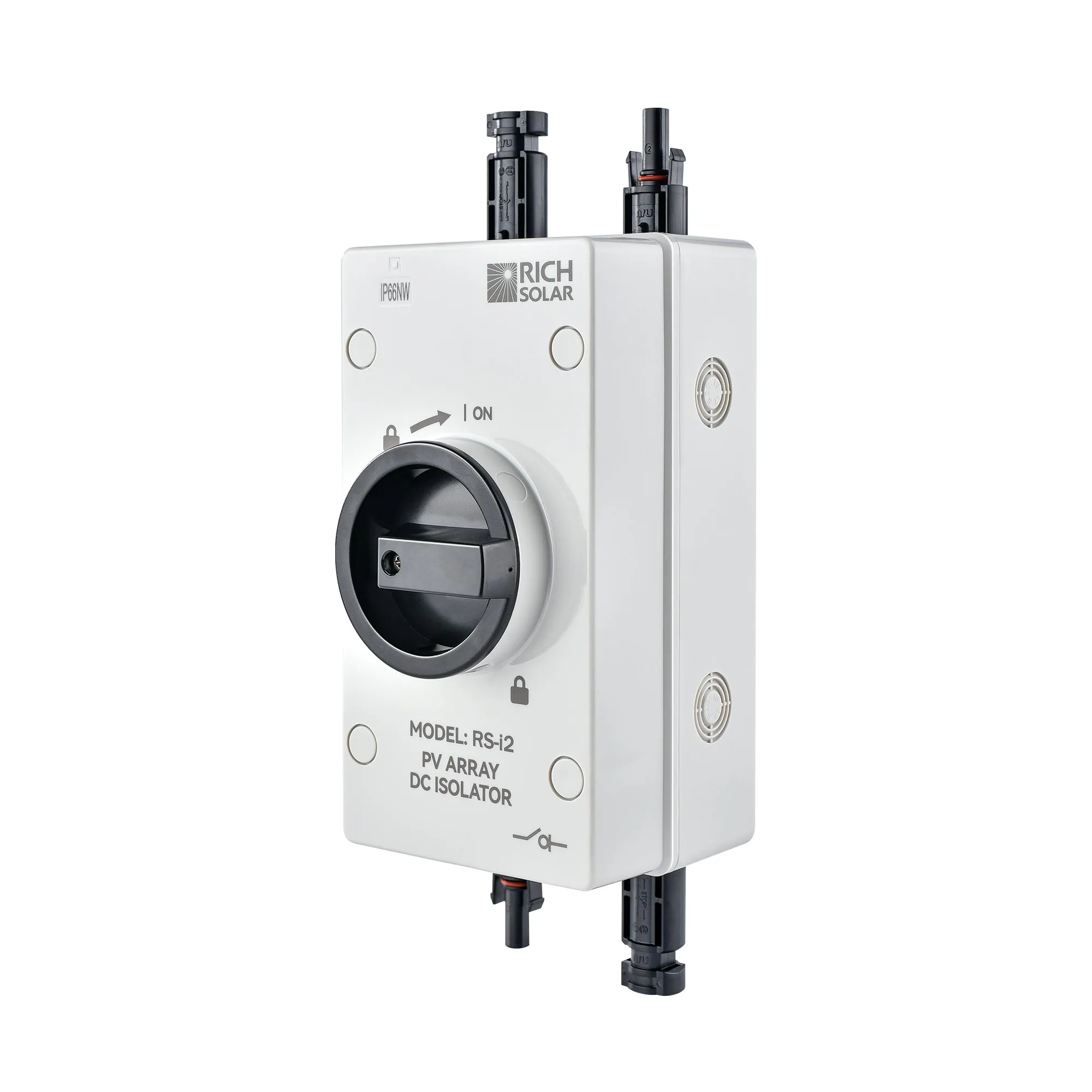

Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 40 Amp | 2 Pole 1 String | Easy to Install
Wiring & Connectors

Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 40 Amp | 2 Pole 1 String | Easy to Install

SKU: RS-i2
$99.99 / Each
✓ In Stock (25 available)

Features Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.

View Kit Bundles
🌾

Why Buy This from AOG

✓Authorized dealer — genuine product, backed by the manufacturer's warranty
✓Personal service from a small, family-run business that knows and serves the Plain & off-grid community — not a faceless call center
✓Chosen to last, not to be the cheapest — built for years of real use
✓Curated for true off-grid living, not stacked on a big-box shelf

Need something else too?

Solar Panels | Kits & Bundles | Batteries | Inverters | Charge Controllers | Power Converters | DC-DC Chargers | Chargers | Solar Racking & Mounting | Off-Grid Appliances | Lighting & Accessories | Monitoring & Accessories | Parts & Repair | Misc | Power Controllers

Shipping Info
Weight: 1lb 11oz
Dimensions: 0.00" × 0.00" × 0.00"

Ships to the lower 48 states. See our Shipping & Returns policy before you buy.

Key Features

• Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
• Outdoor rated.
• Off and on-grid applications.

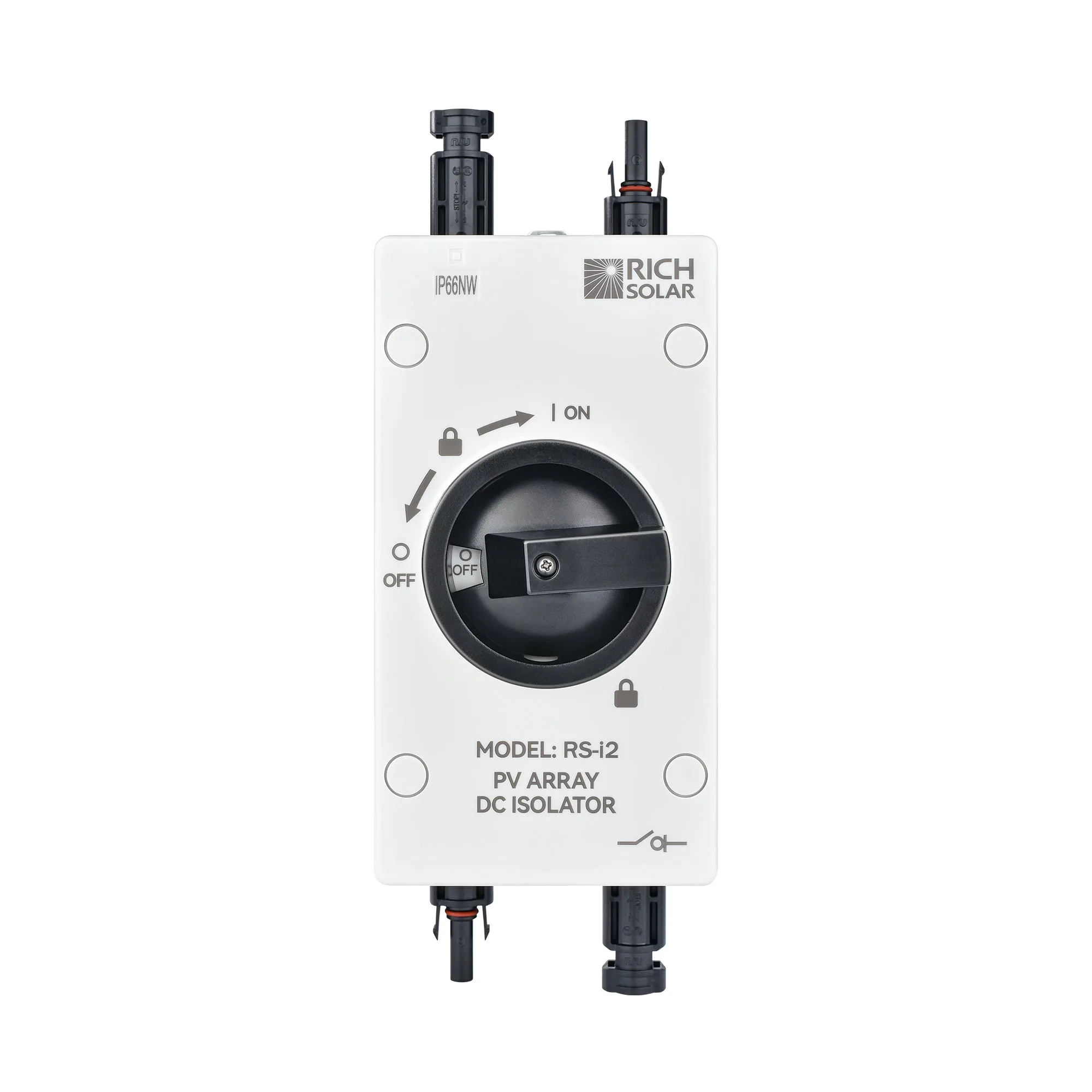

• Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
• 2 poles and 1 string.
• Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
• Lockout option.

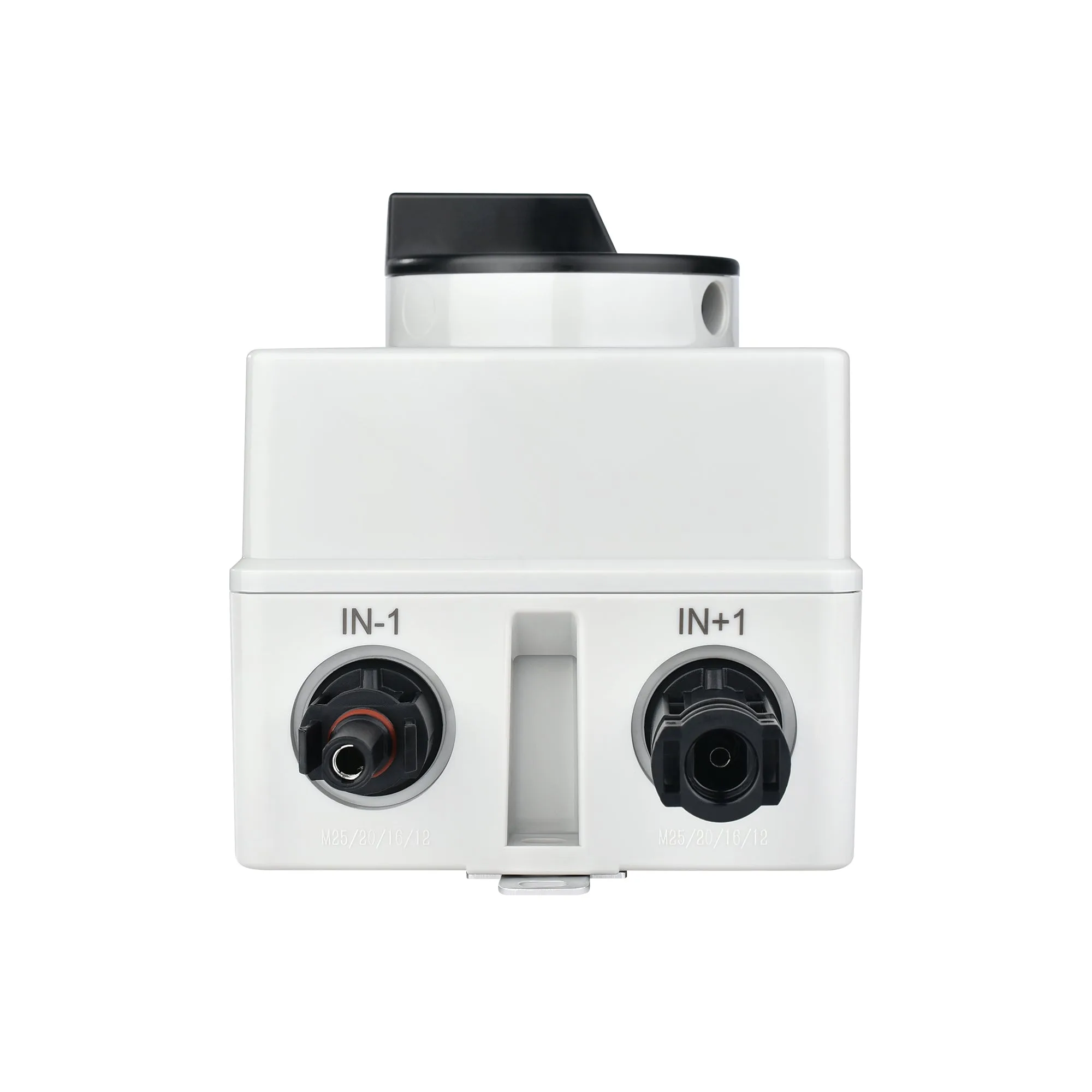

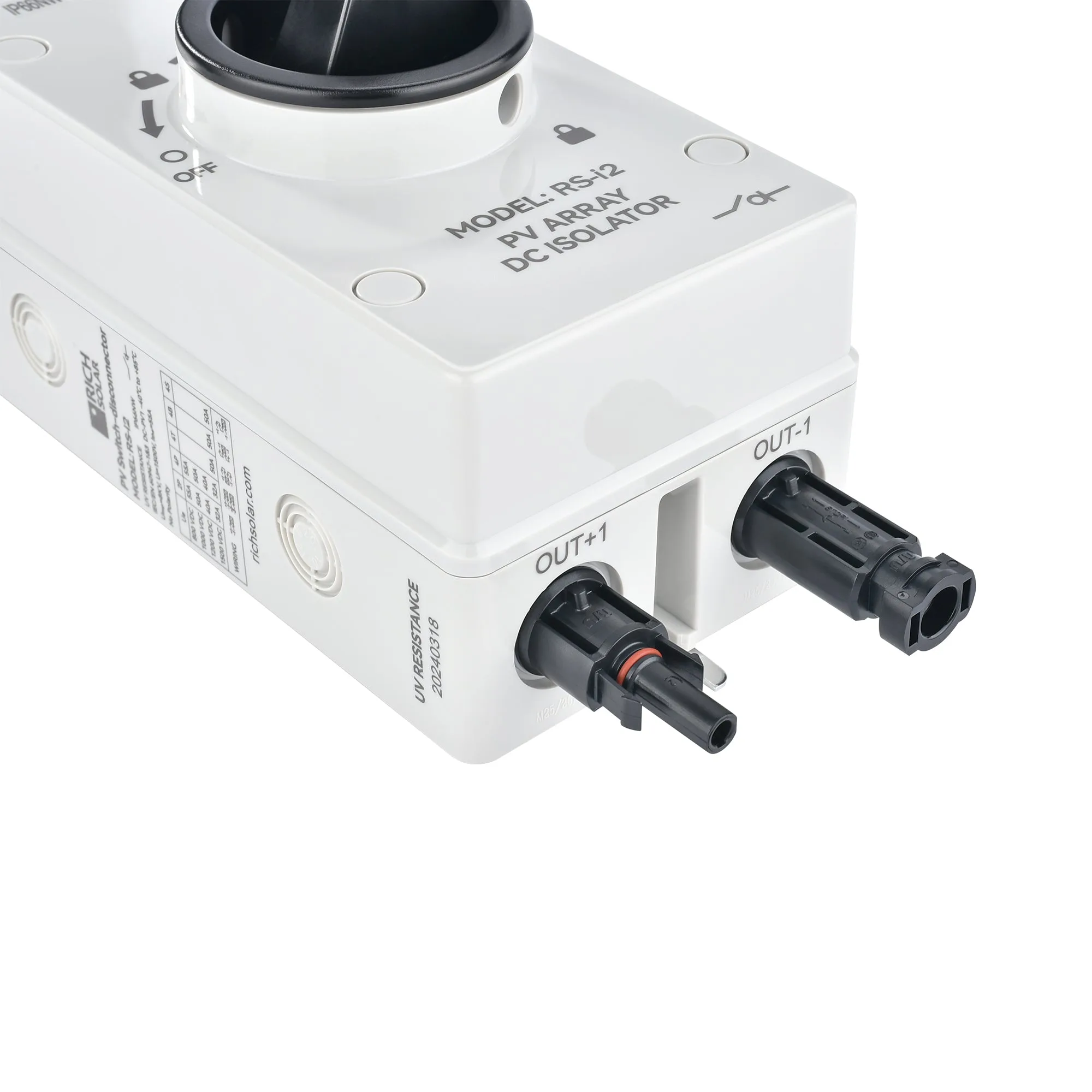

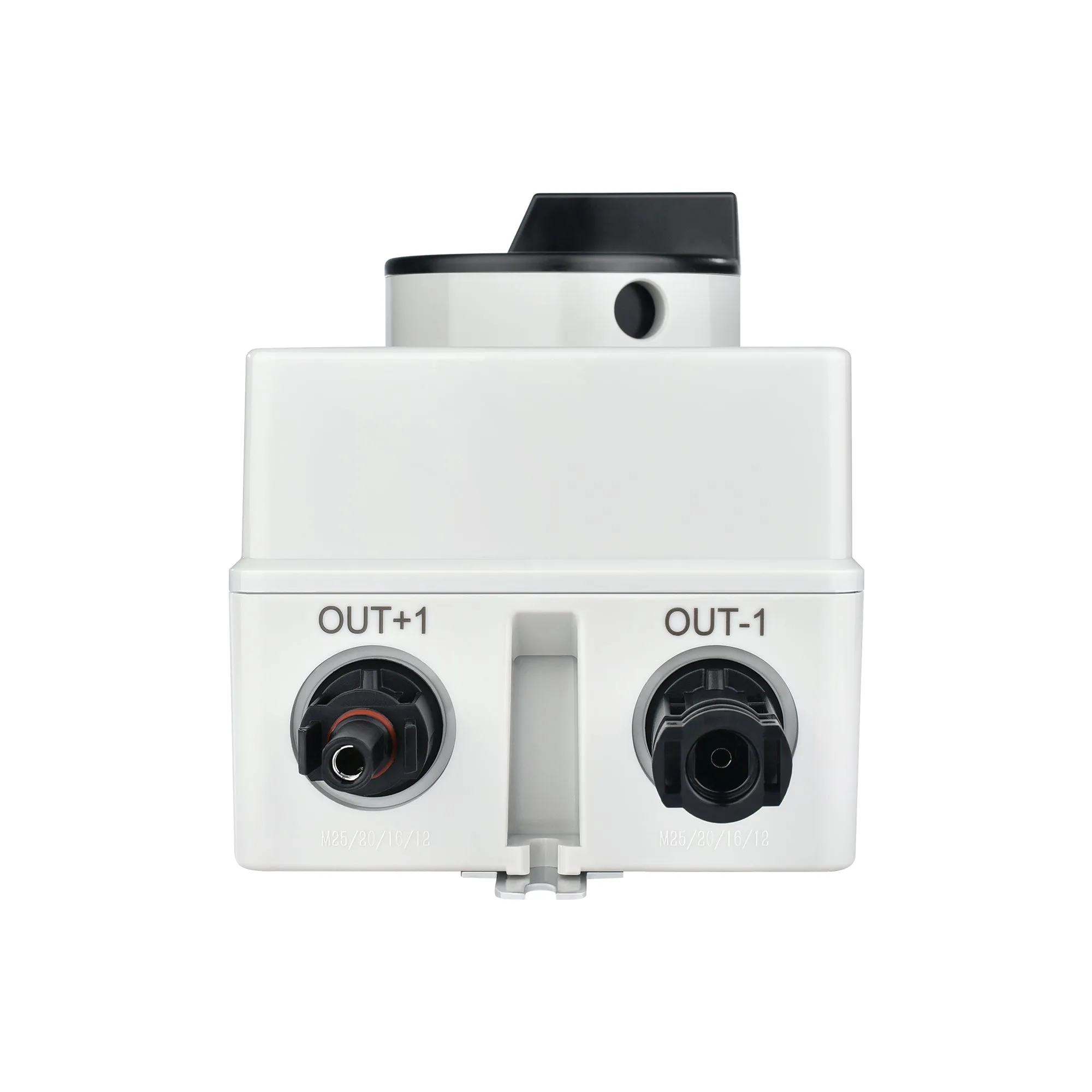

• Output and input connections are built for easy setup and installation.

Specifications

• Rated Thermal Current (Ith): 40A
• Rated Insulation Voltage (Ui): 1500V
• Poles / Circuit: 2P in series
• Supported PV Strings: 1 PV string
• Impulse Withstand Voltage: 8 kV
• Arc Suppression Time: <3ms
• IP Rating: IP66NW
• Operating Temperature: -40℉ to 158℉
• Housing Material: Flame-retardant PC (UL94 V-0)

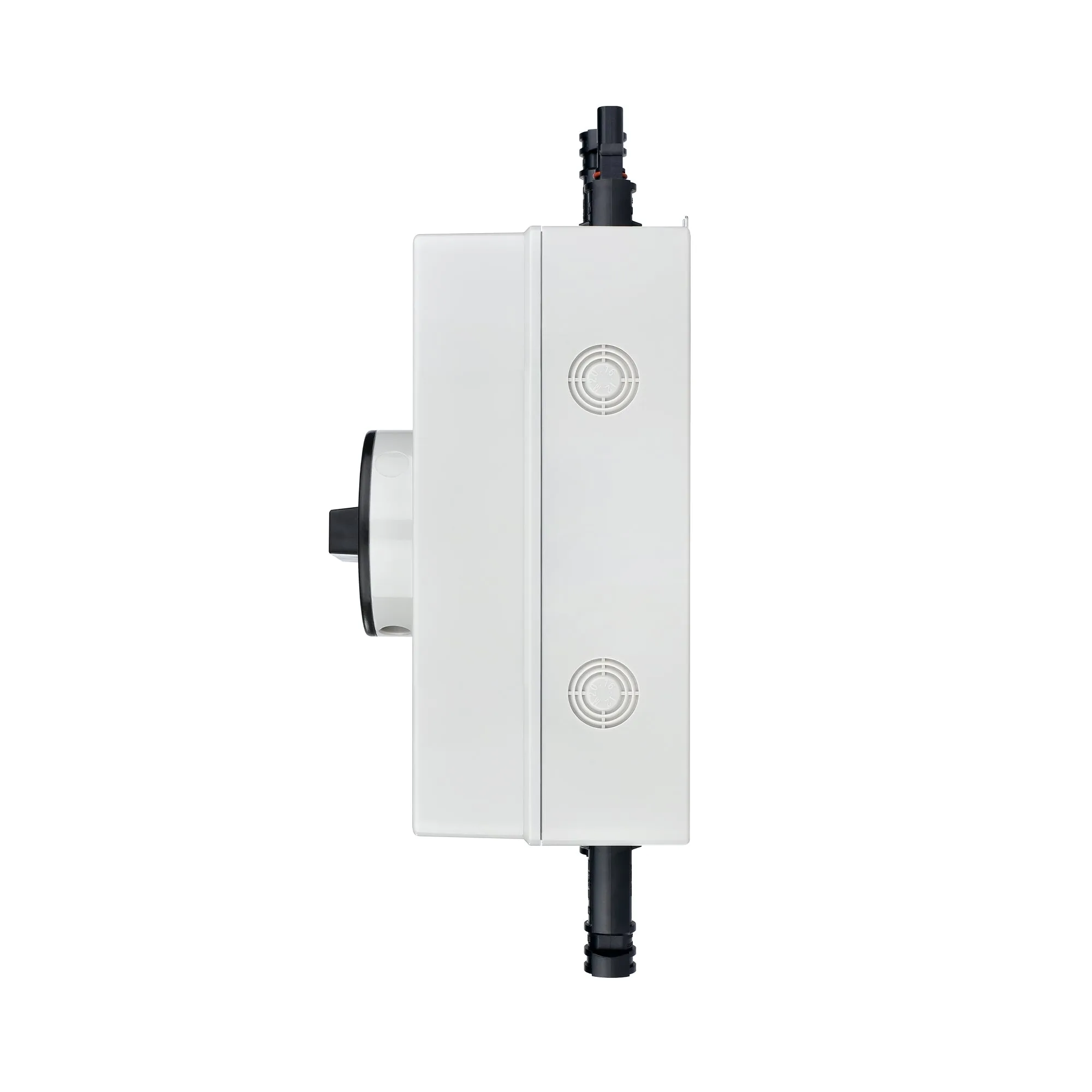

• Dimensions (HxWxD): 9.8x3.8x4.3 in (249.4x97.6x110 mm)
• Weight: 1.3lb (0.57kg)
• Certifications: CE
• Warranty: 3 years
