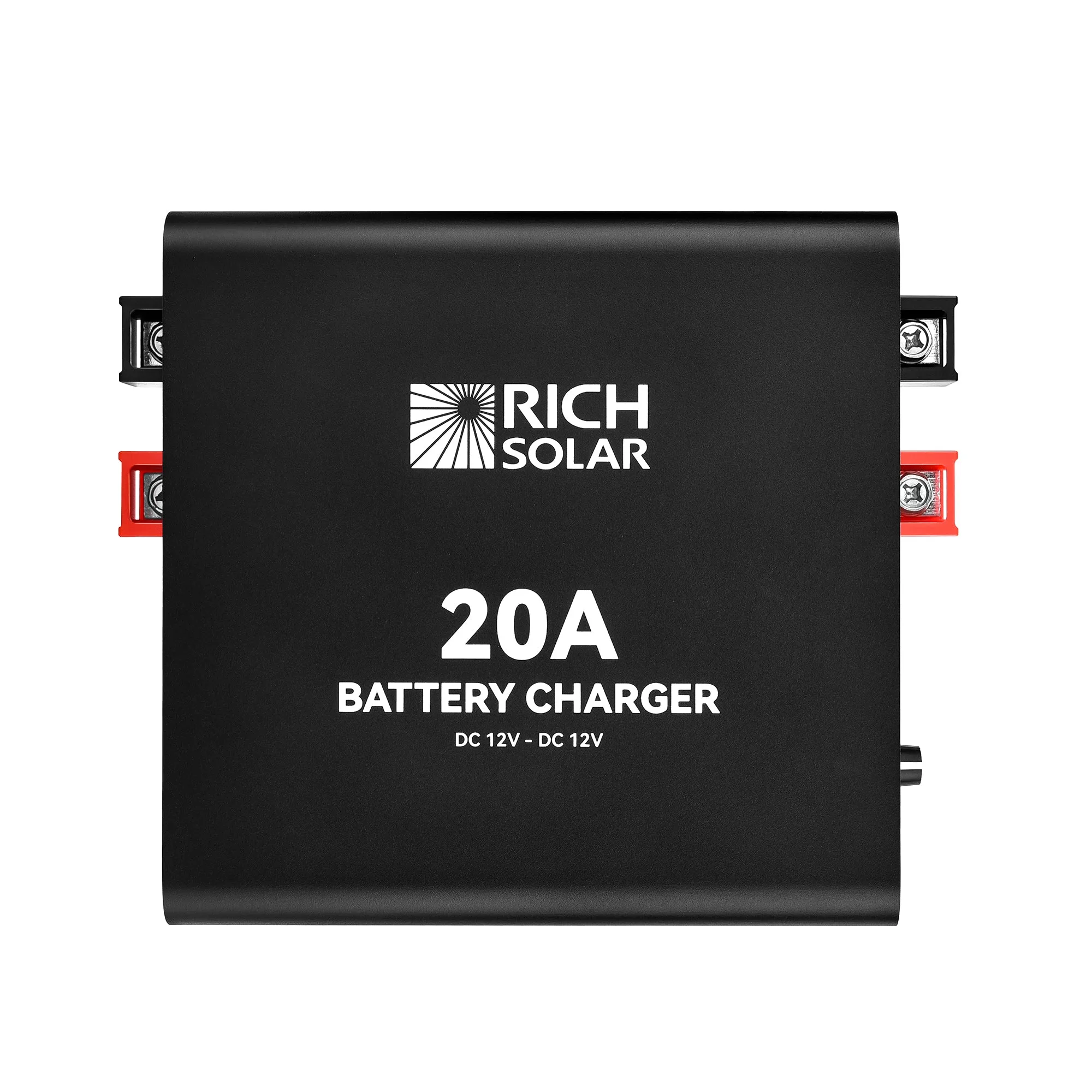

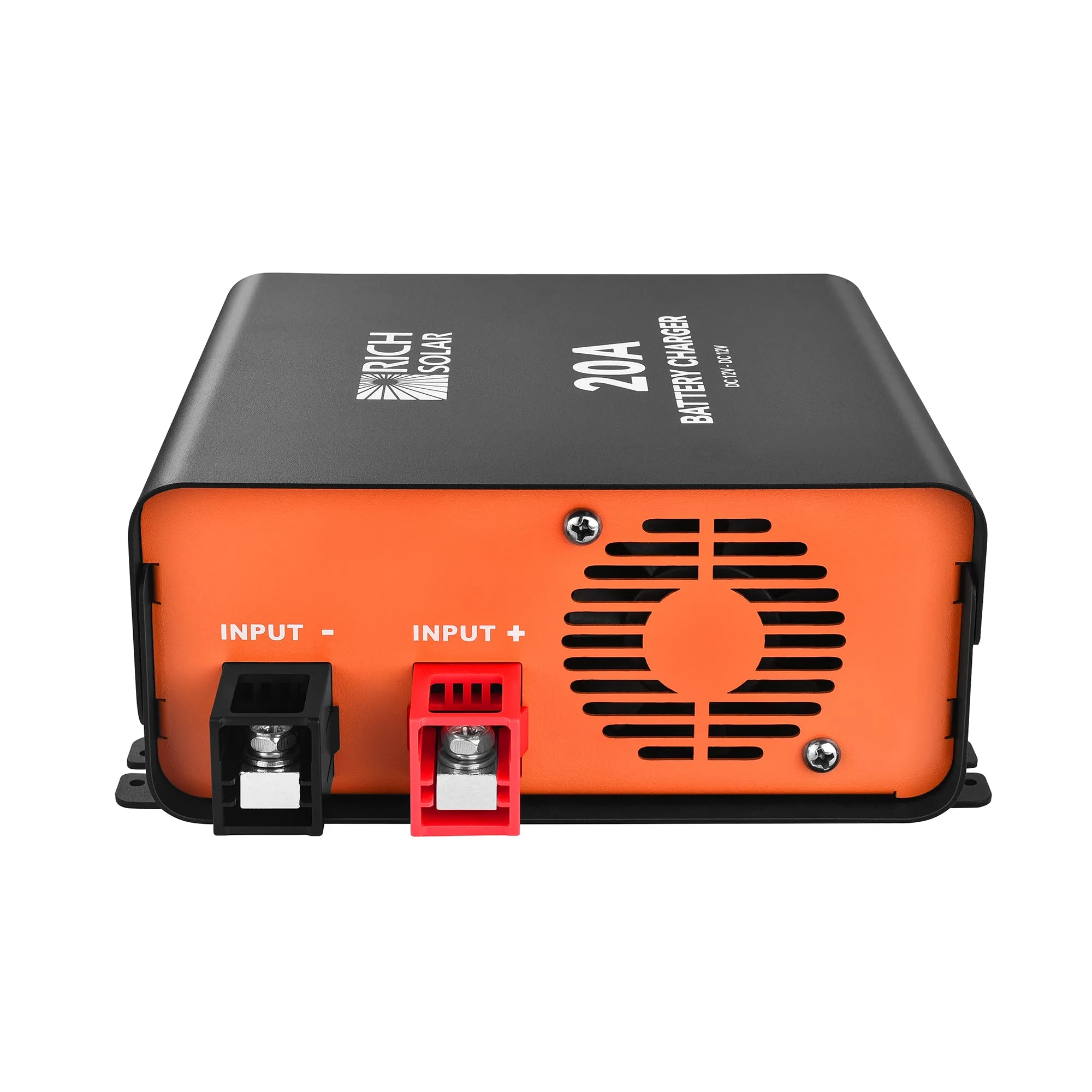

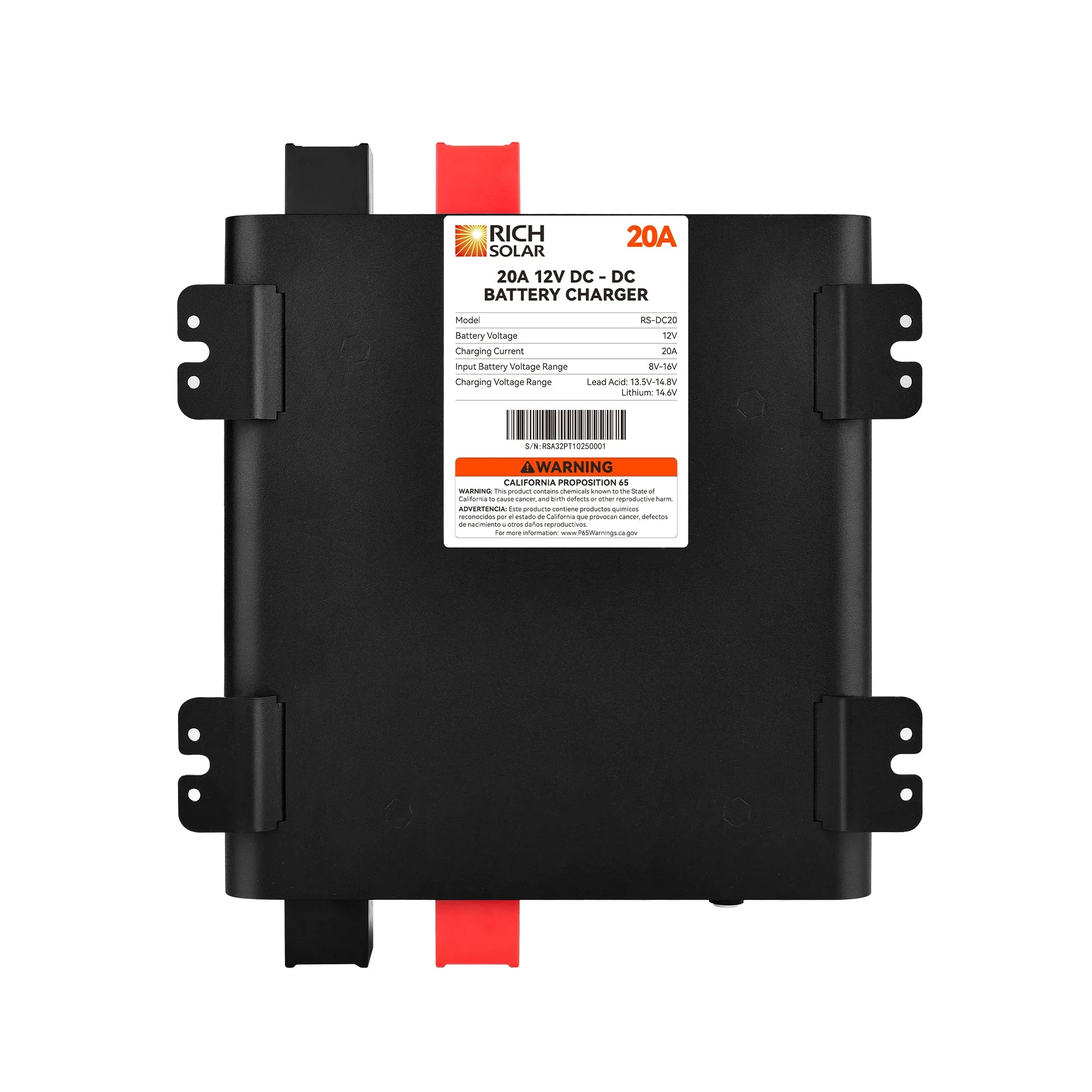

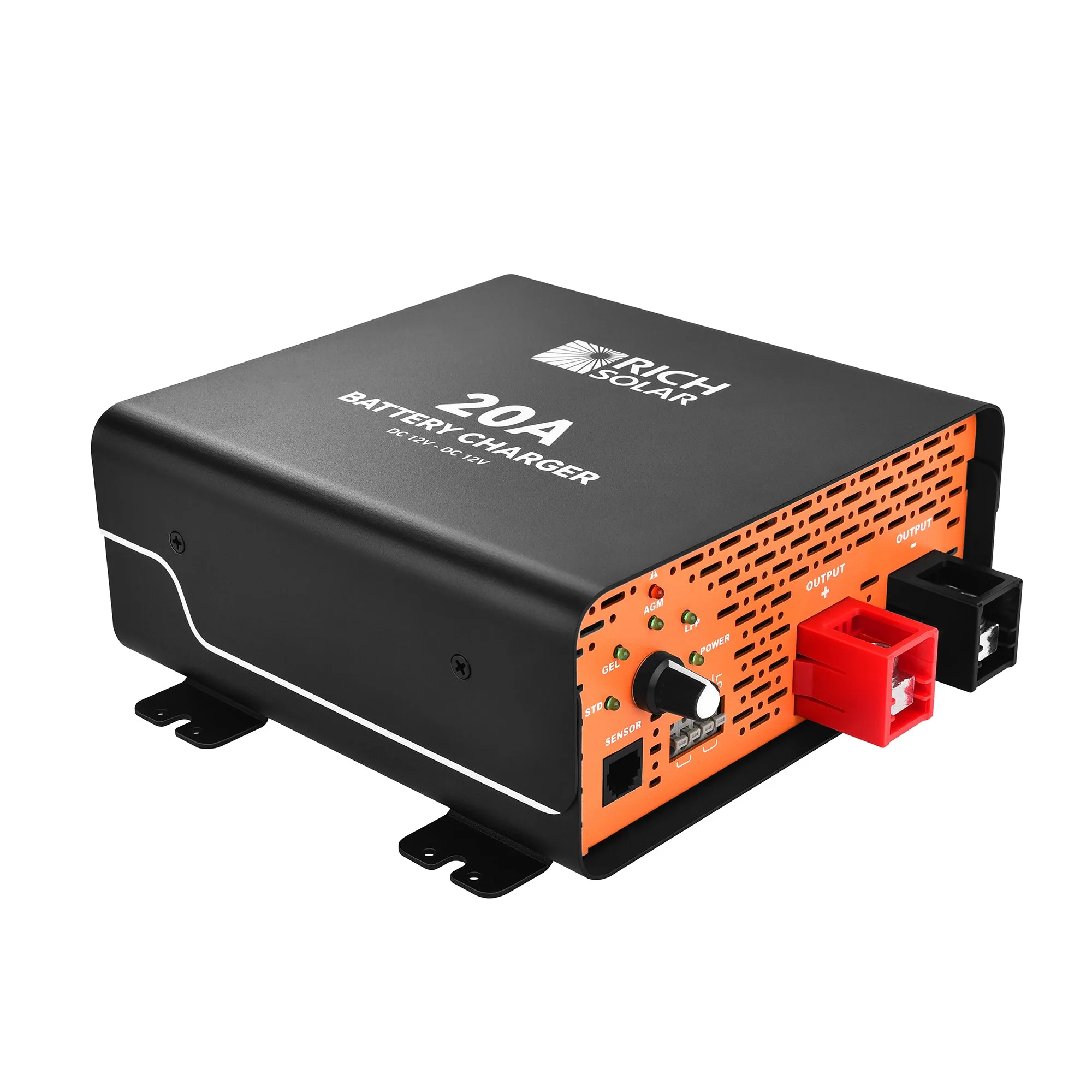

12V 20A DC-DC Battery Charger for RV, Van, Boat, Off-Grid | Lithium & Lead-Acid Batteries

• Compatible with 12V AGM, Flooded, Gel, and Lithium batteries
• Compatible with smart or traditional alternators via connection to the 12V starter battery
• Ideal for RVs, vans, boats, and off-grid power systems
• 2- stage charging for lithium batteries
• 3-stage charging for lead-acid batteries (Bulk → Absorption → Float)
• Lithium Battery Activation : Automatically wakes up over-discharged lithium batteries

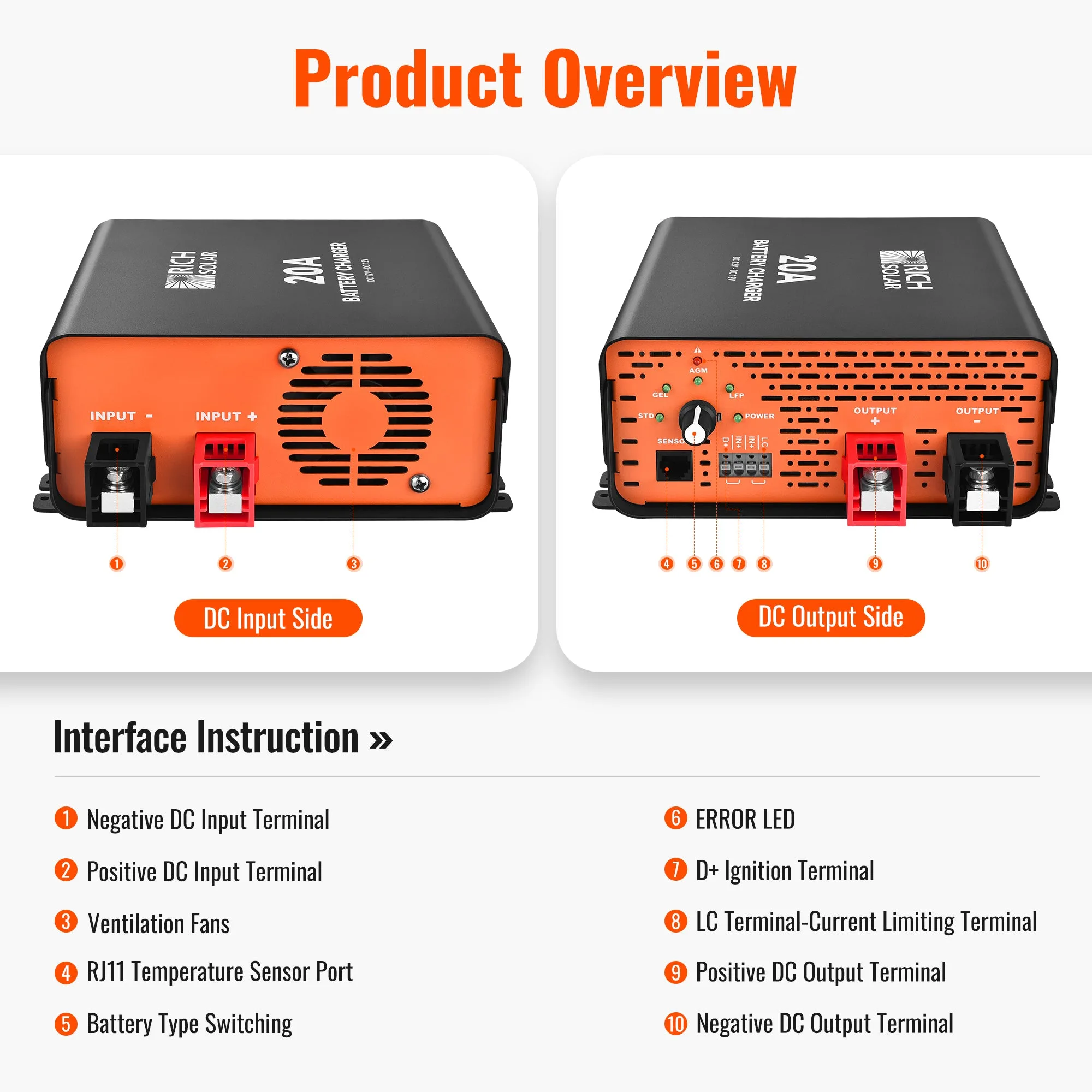

• Built-in protection against over-voltage, over-temperature, and reverse polarity
• Battery isolation prevents reverse current between batteries and protects the starter battery

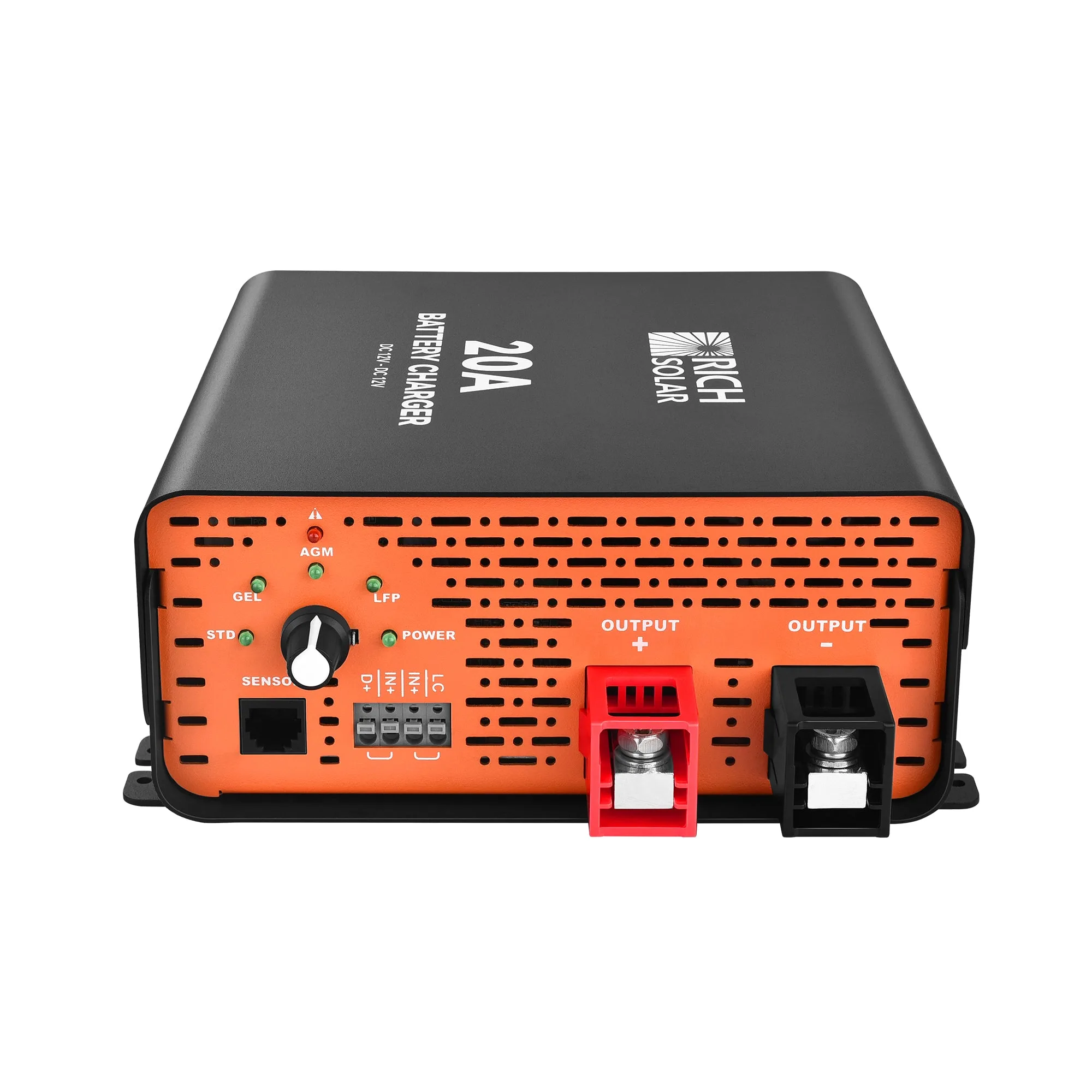

• D+ Ignition Terminal: Charges only when the engine is running to protect the starter battery
• LC Terminal: Activates low current mode (10A) for small alternators or weak power sources
• RJ11 Temperature Sensor Port: Adjusts voltage for cold and hot environments to protect battery lifespan (Not for lithium batteries)

• Output Nominal Power: 250W
• Output Nominal Current: 20A
• Operating Current Range: 18~22A
• Low Current Mode: 10A
• Floating Charge Current: 3~5A
• Low Current Mode Current Range: 8~11A
• Quiescent Current: ＜0.45A
• Ripple Voltage: ＜500mV rms
• Battery Charging Mode: 2-stage for lithium; 3-stage for lead-acid
• Efficiency: >85%, @14VDC 30% load
• Input Nominal Voltage: 12VDC
• Operating Voltage Range: 10~16VDC
• Input Current Limit: ≤34A

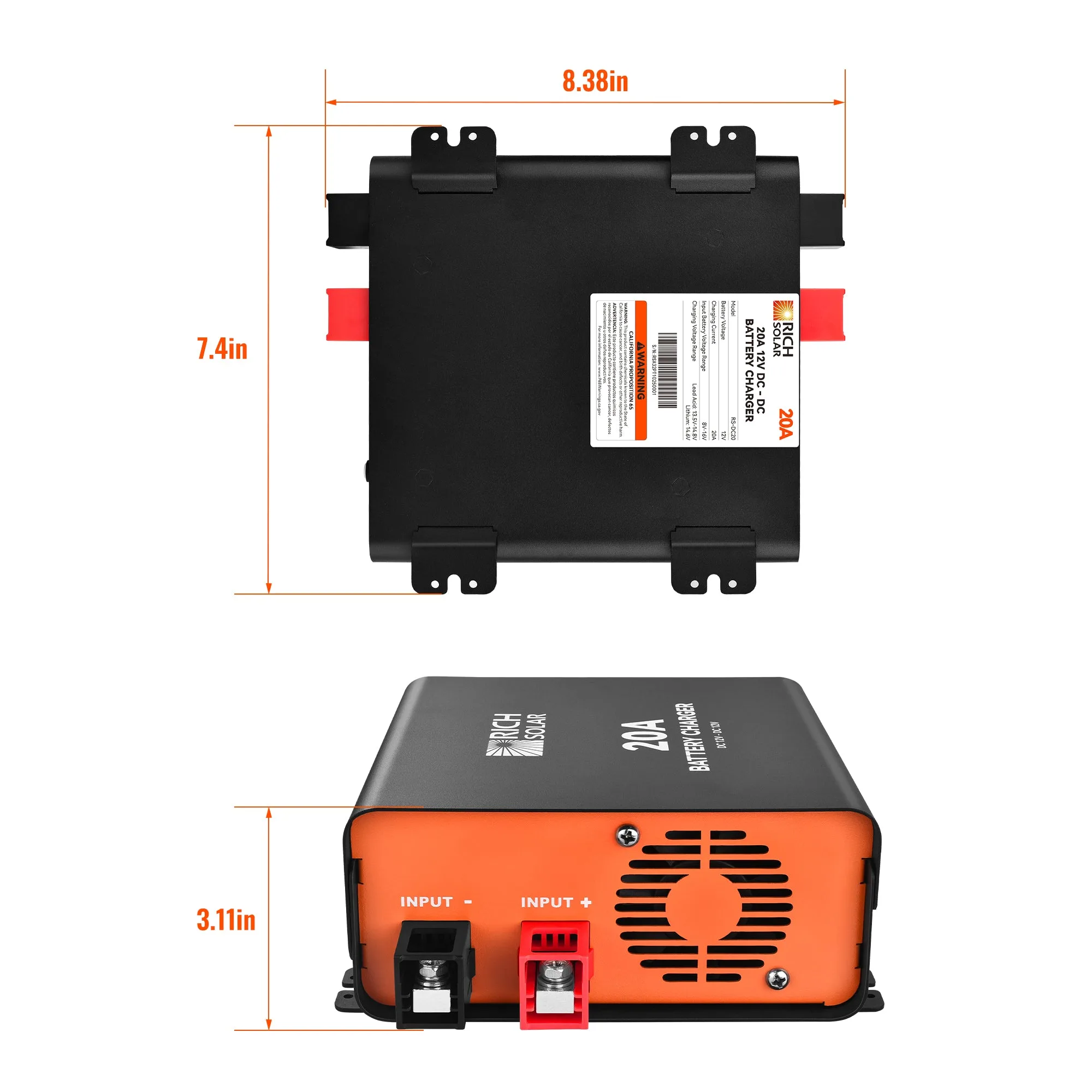

• Dimensions: 8.4*7.4*3.1 in
• Weight: 4.0 lb
