12V 60A DC-DC Battery Charger for RVs, Vans, Boats & Off-Grid Systems | Lithium & Lead-Acid

• Lithium Charging: 2-stage adaptive charging for safe and complete lithium battery charging.
• Lead-Acid Charging: 3-stage charging to extend battery life.
• Lithium Activation: Automatically reactivates over-discharged lithium batteries.
• Multi-Battery Ready: Supports AGM, Flooded, Gel, and LiFePO₄ (LFP) via Mode Switch.
• Alternator Friendly: Supports both smart and standard alternators in 12V vehicle systems.
• Low-Current Mode (LC): 30A limit for small alternators or weaker power sources.
• D+ Ignition Control: Charges only while the engine is running to protect the starter battery.
• Battery Isolation: Prevents reverse current flow between the starter and auxiliary batteries.
• Smart Circuit Protection: Protects against over-voltage, over-temperature, and reverse polarity.
• Certifications: CE & RoHS compliant for quality and safety assurance.

• Output Nominal Power: 750W
• Rated Charge Current: 60A
• Low Current Mode: 30A
• Idle Power Consumption: ＜0.75A
• System Voltage: 12VDC
• Input Voltage Range: 10-16VDC
• Input Current Limit: ≤100A
• Float Voltage: 13.5–13.8V
• Boost Voltage: 14.4–14.8V
• Battery Charging Mode: 2-stage for lithium; 3-stage for lead-acid
• Compatible Battery Types: AGM, Flooded, Gel, Sealed, LiFePO₄ (LFP), Lithium-ion
• Efficiency: >85% (@ 14VDC, 30% Load)
• Operating Temperature: -4 °F to 122 °F

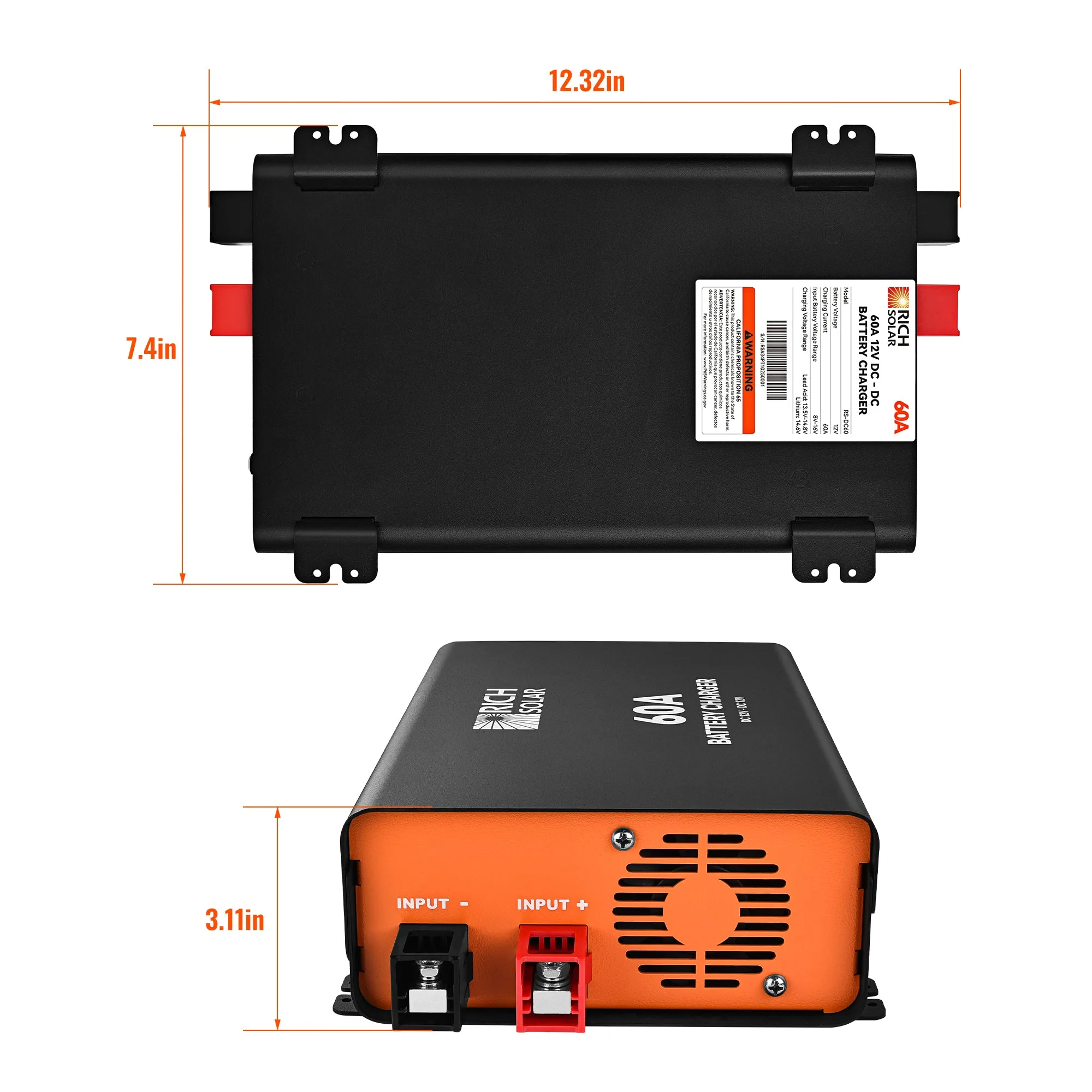

• Dimensions: 12.3 × 7.4 × 3.1 in
• Weight: 6.2 lb
• Certifications: CE, RoHS
