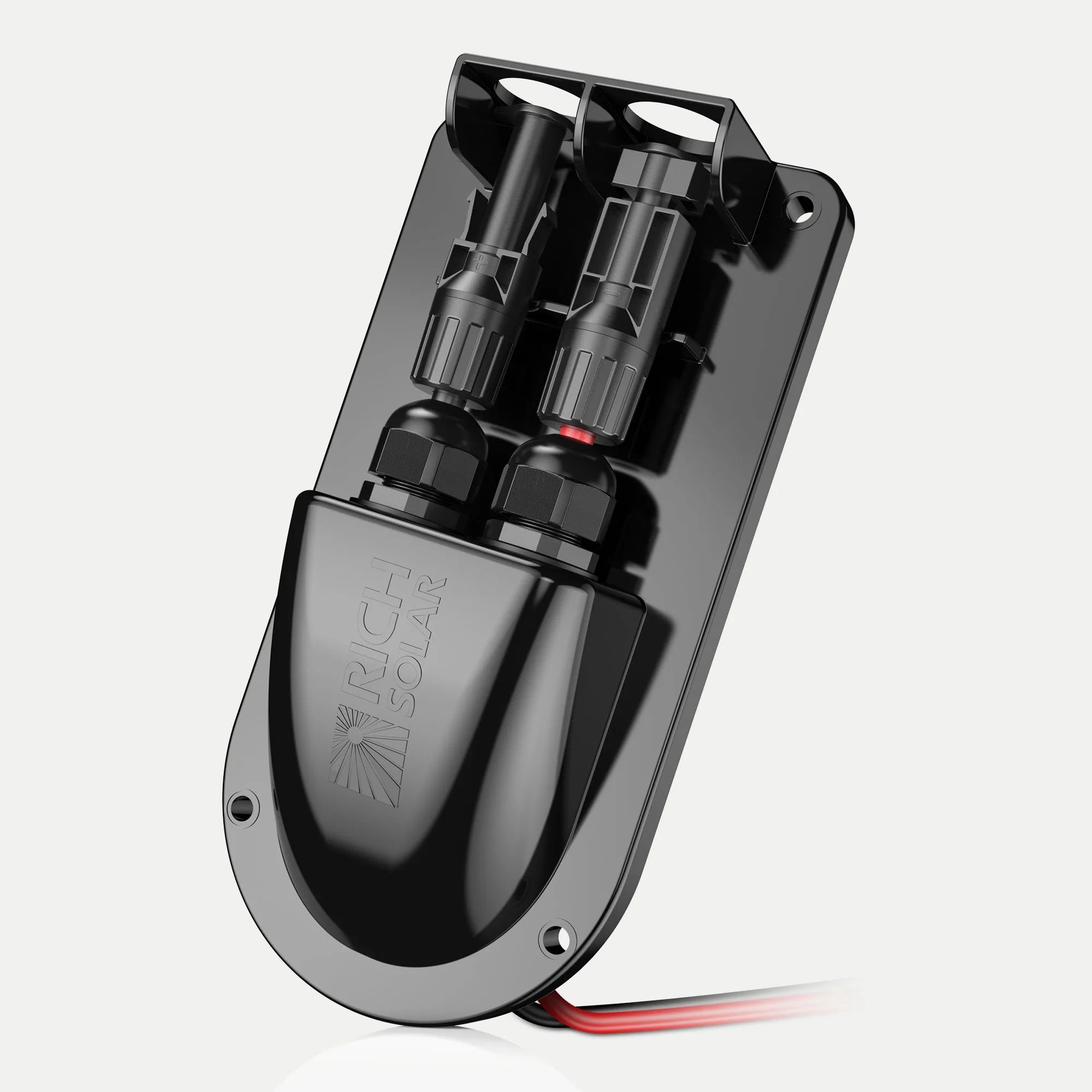

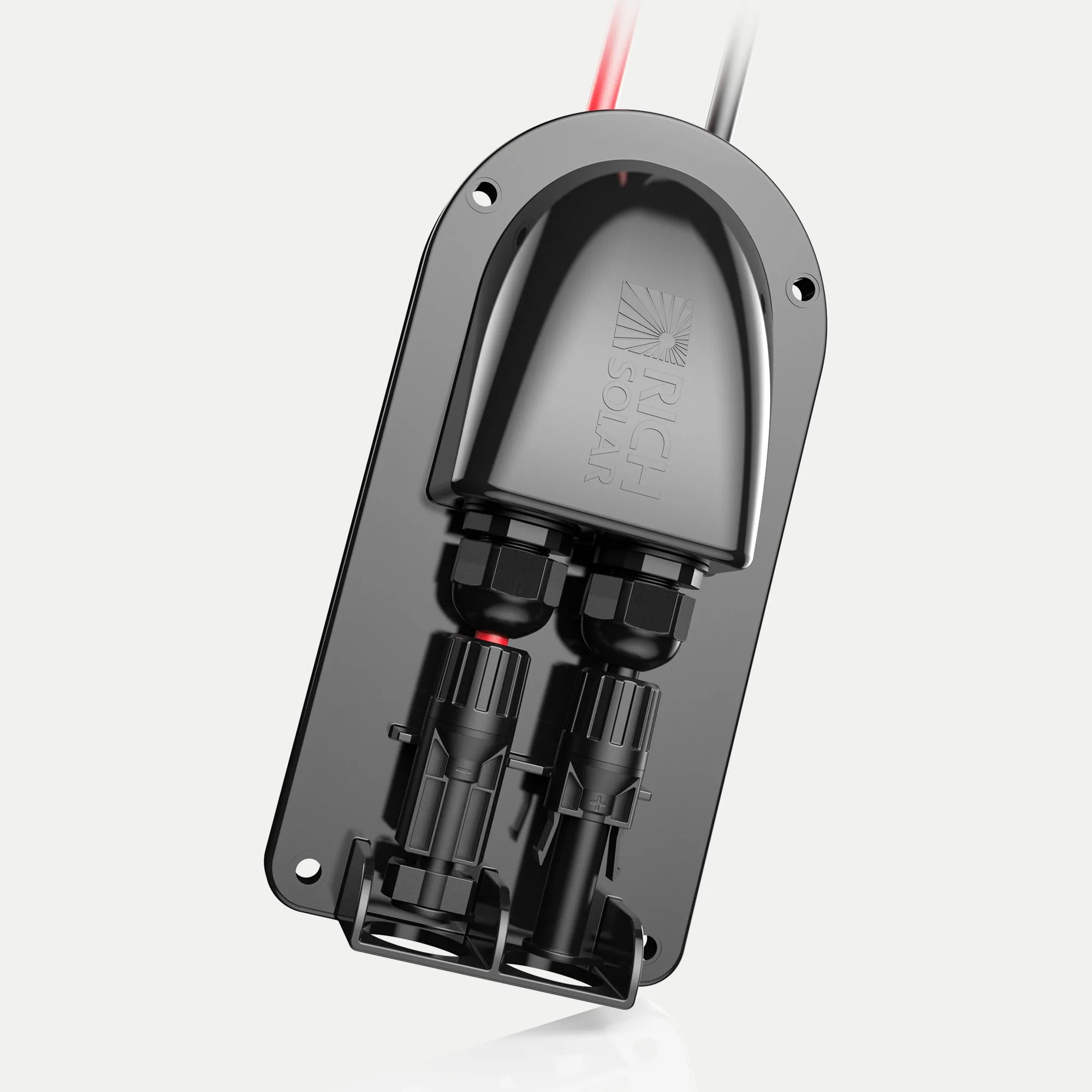

Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors | Easy to Install
Wiring & Connectors

Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors | Easy to Install

SKU: RS-G02
$25.99 / Each
✓ In Stock (25 available)

Features Durable & Weatherproof Flame-retardant PP housing for long-lasting outdoor use Operates smoothly in extreme temps: -40°F to 185°F Perfect for RVs, boats, cabins, and off-g

View Kit Bundles
🌾

Why Buy This from AOG

✓Authorized dealer — genuine product, backed by the manufacturer's warranty
✓Personal service from a small, family-run business that knows and serves the Plain & off-grid community — not a faceless call center
✓Chosen to last, not to be the cheapest — built for years of real use
✓Curated for true off-grid living, not stacked on a big-box shelf

Need something else too?

Solar Panels | Kits & Bundles | Batteries | Inverters | Charge Controllers | Power Converters | DC-DC Chargers | Chargers | Solar Racking & Mounting | Off-Grid Appliances | Lighting & Accessories | Monitoring & Accessories | Parts & Repair | Misc | Power Controllers

Shipping Info
Weight: 0lb 5oz
Dimensions: 0.00" × 0.00" × 0.00"

Ships to the lower 48 states. See our Shipping & Returns policy before you buy.

Key Features

• Flame-retardant PP housing for long-lasting outdoor use
• Operates smoothly in extreme temps: -40°F to 185°F
• Perfect for RVs, boats, cabins, and off-grid solar systems
• Supports 42A max / 30A continuous load
• Pre-assembled UL1015, 10AWG tin-plated copper wires for excellent conductivity
• PVC insulation with VW-1 fire rating for added safety

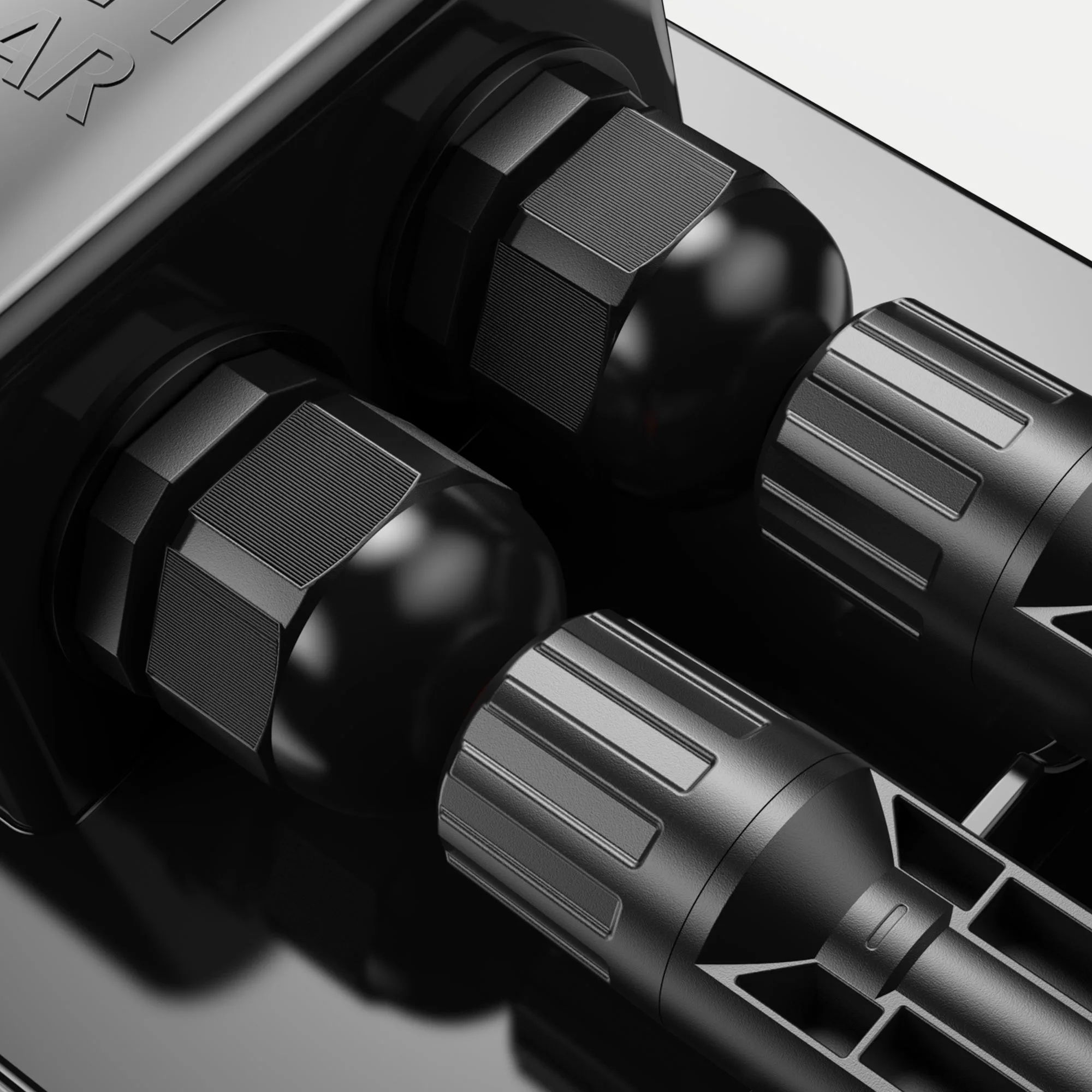

• PA6 PG9 head with IP68 waterproof & dustproof sealing
• UL94V-2 flame-retardant, CE certified for reliability

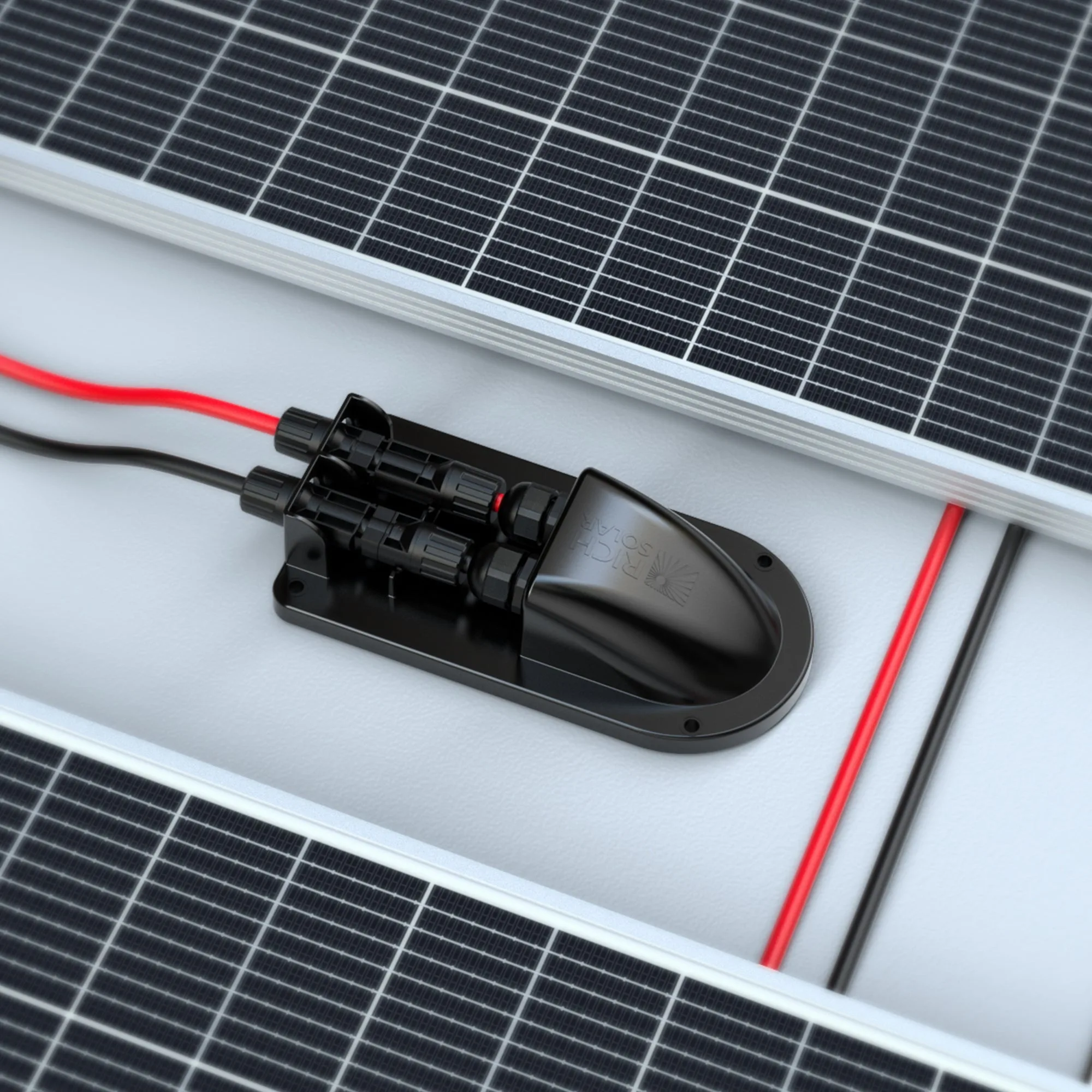

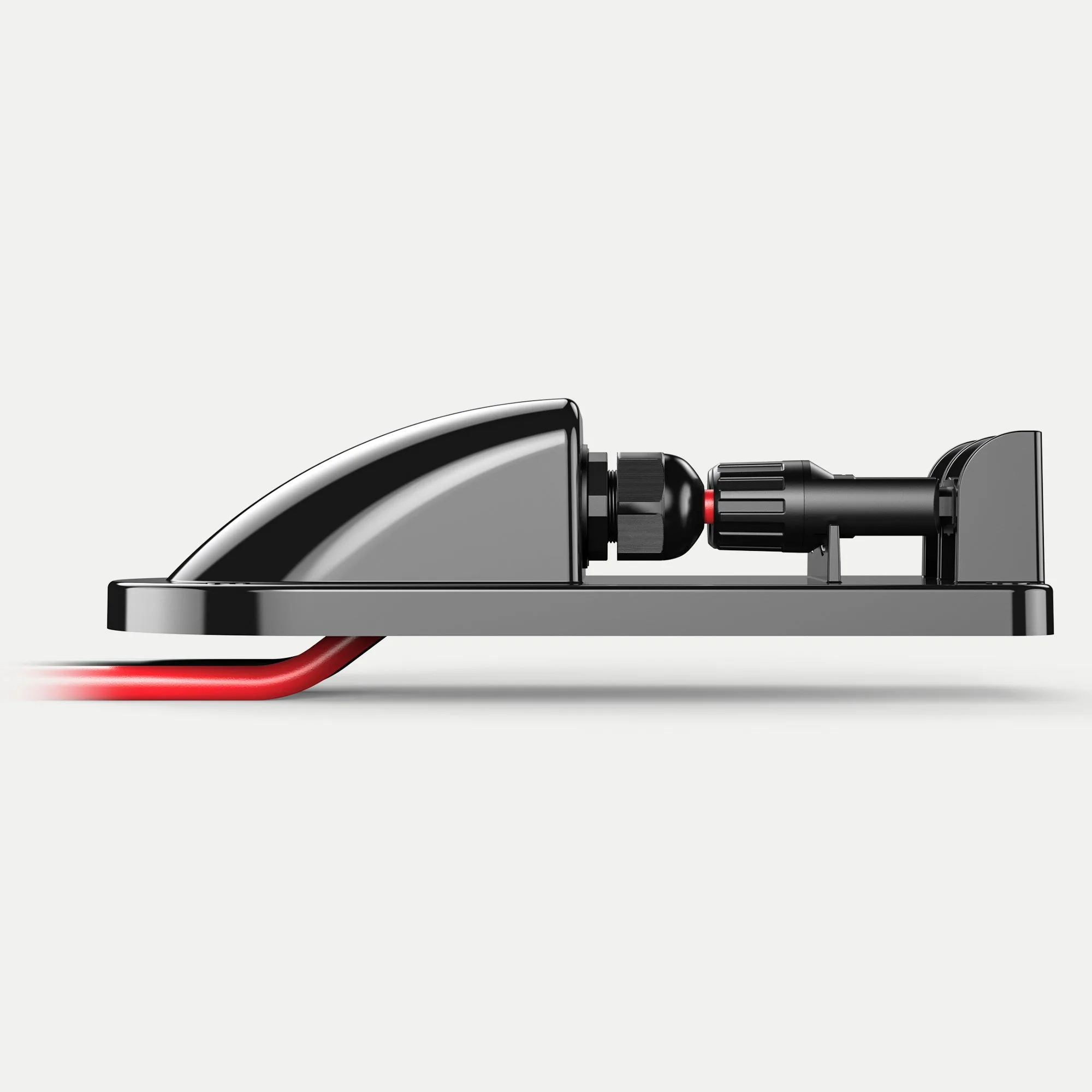

• Compact, low-profile rooftop mount design
• Secure with adhesive/sealant and screws (hardware not included)
• Simplifies cable management for faster, cleaner setup

Specifications

• Model: RS-G02
• Product Size (L x W x H): 7.2 x 3.8 x 2.0 in
• Weight: 0.34lb
• Junction Box Material: Polypropylene (PP)
• Junction Box Flame Retardant: Yes
• Color: Black
• Operating Temperature Range: -40℃ to 85℃(-40°F t0 185°F)
• Maximum Current: 42A
• Continuous Current: 30A
• Maximum Voltage: 600V (Wire Rating)
• Wire Standard: UL 1015 10AWG (Red/Black)
• Wire Conductor: Tin-Plated Copper
• Wire Insulation: PVC (VW-1 Fire Rated)
• Wire Temperature Range: -15°C to 105°C (5°F to 221°F)
• PG Head Specification: RNA-PG9
• PG Head Material: PA6
• PG Waterproof Rating: IP68
• PG Flame Retardant Rating: UL94V-2 Cerriffed
• Certification: CE
• Material: PC
• Certification: TUV
